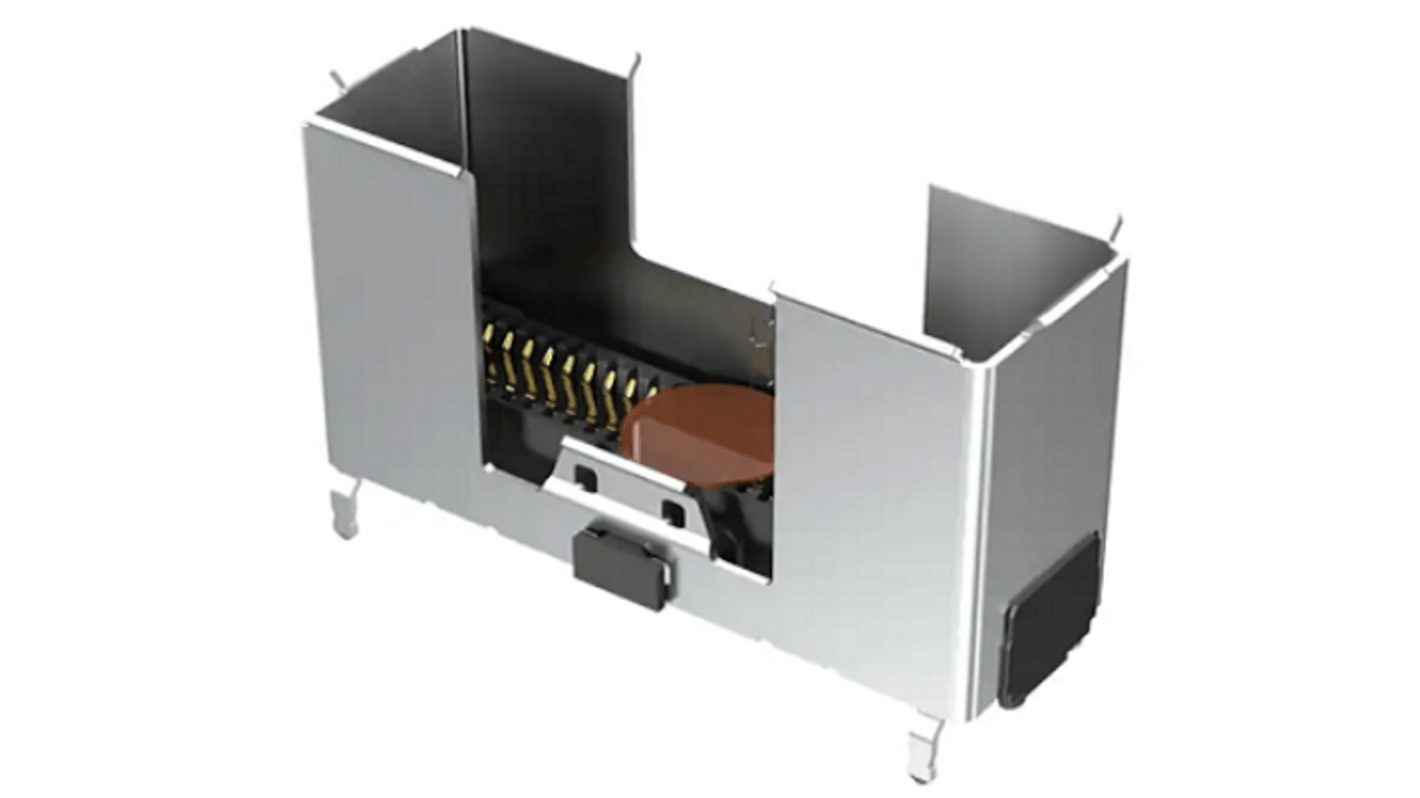

Samtec ARF6 Series Straight Surface PCB Socket, 16-Contact, 2 Row, 0.635 mm Pitch Solder
- RS Stock No.:
- 250-2809
- Mfr. Part No.:
- ARF6-16-S-D-A-K-TR-1
- Brand:
- Samtec
Subtotal (1 unit)*
£7.53
(exc. VAT)
£9.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.53 |
*price indicative
- RS Stock No.:
- 250-2809
- Mfr. Part No.:
- ARF6-16-S-D-A-K-TR-1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Socket | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Sub Type | PCB Socket | |
| Pitch | 0.635mm | |
| Housing Material | Thermoplastic | |
| Termination Type | Solder | |
| Mount Type | Surface | |
| Orientation | Straight | |
| Connector System | Wire-to-Board | |
| Series | ARF6 | |
| Row Pitch | 0.635mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS, UL | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Socket | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Sub Type PCB Socket | ||
Pitch 0.635mm | ||
Housing Material Thermoplastic | ||
Termination Type Solder | ||
Mount Type Surface | ||
Orientation Straight | ||
Connector System Wire-to-Board | ||
Series ARF6 | ||
Row Pitch 0.635mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 105°C | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Contact Gender Male | ||
Standards/Approvals RoHS, UL | ||
RoHS Status: Exempt
The samtec Accelerate Slim Direct attach Cable Assemblie has 0.635 mm Pitch. It Supports 56 Gbps PAM4 (28 Gbps NRZ) applications.
Slimmest cable assembly in the industry is 76 mm width
High-density 2-row design Multiple wiring options including reverse polarity
Mating board level socket (ARF6 Series) features standard rugged weld tabs for increased stability on the PCB
Rugged metal latching and shielding
