RS PRO Centronics Series Right Angle Through Hole PCB Socket, 24-Contact, 2 Row, 2.16 mm Pitch Solder
- RS Stock No.:
- 239-1162
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£3.88
(exc. VAT)
£4.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 242 unit(s) shipping from 19 January 2026
- Plus 99 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £3.88 |
| 15 - 49 | £3.06 |
| 50 - 99 | £2.86 |
| 100 - 249 | £2.75 |
| 250 + | £2.34 |
*price indicative
- RS Stock No.:
- 239-1162
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | PCB Socket | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Sub Type | Board-to-Board | |
| Current | 12A | |
| Pitch | 2.16mm | |
| Termination Type | Solder | |
| Mount Type | Through Hole | |
| Orientation | Right Angle | |
| Connector System | Board-to-Board | |
| Series | Centronics | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 4.2mm | |
| Contact Plating | Brass over Tin | |
| Maximum Operating Temperature | 105°C | |
| Contact Material | Brass | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type PCB Socket | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Sub Type Board-to-Board | ||
Current 12A | ||
Pitch 2.16mm | ||
Termination Type Solder | ||
Mount Type Through Hole | ||
Orientation Right Angle | ||
Connector System Board-to-Board | ||
Series Centronics | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 4.2mm | ||
Contact Plating Brass over Tin | ||
Maximum Operating Temperature 105°C | ||
Contact Material Brass | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- TW

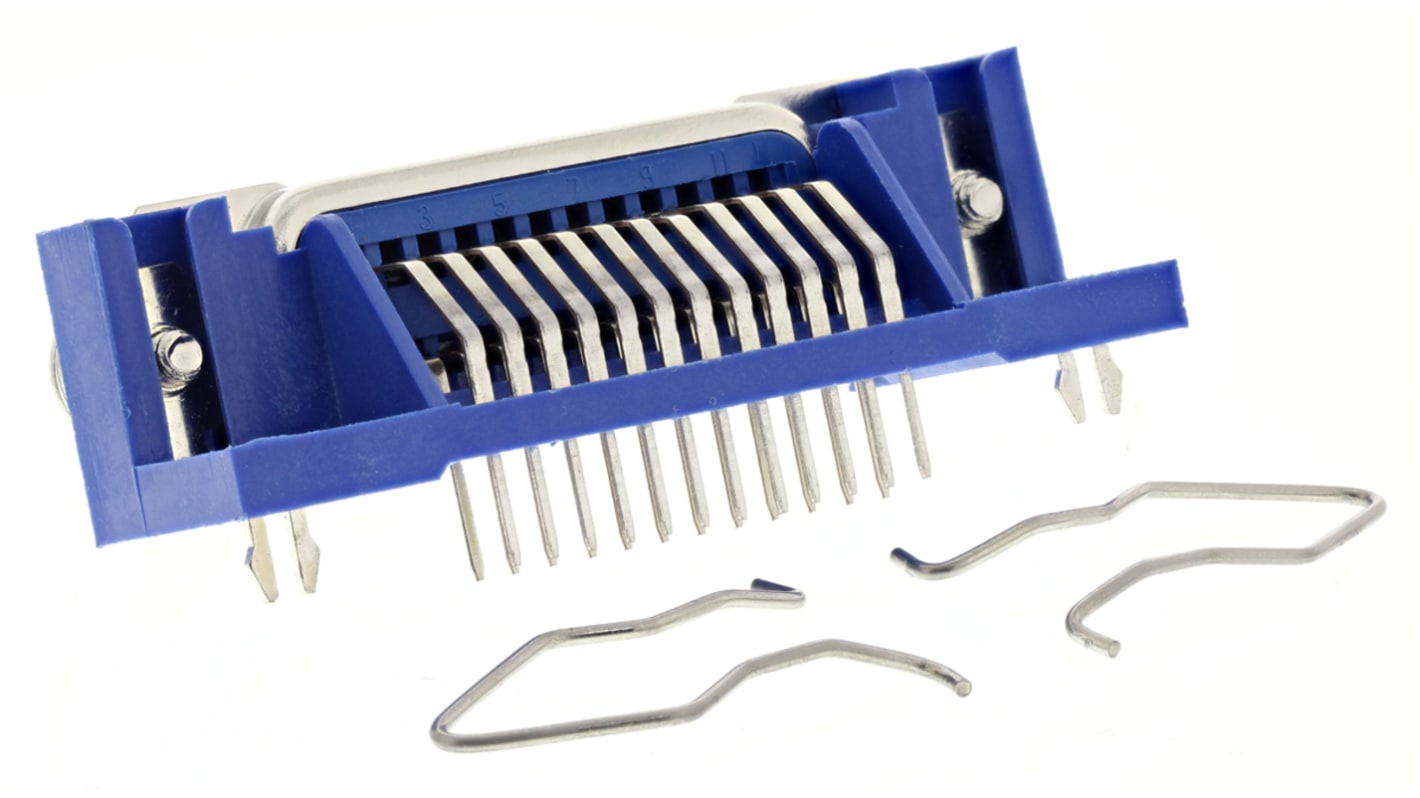

90° PCB Mounting Sockets
Right-angle mounted socket with tin-plated solder pin terminations. Supplied complete with spring clips for retention of RS cable mounting plugs.
Standards
IEEE 428
