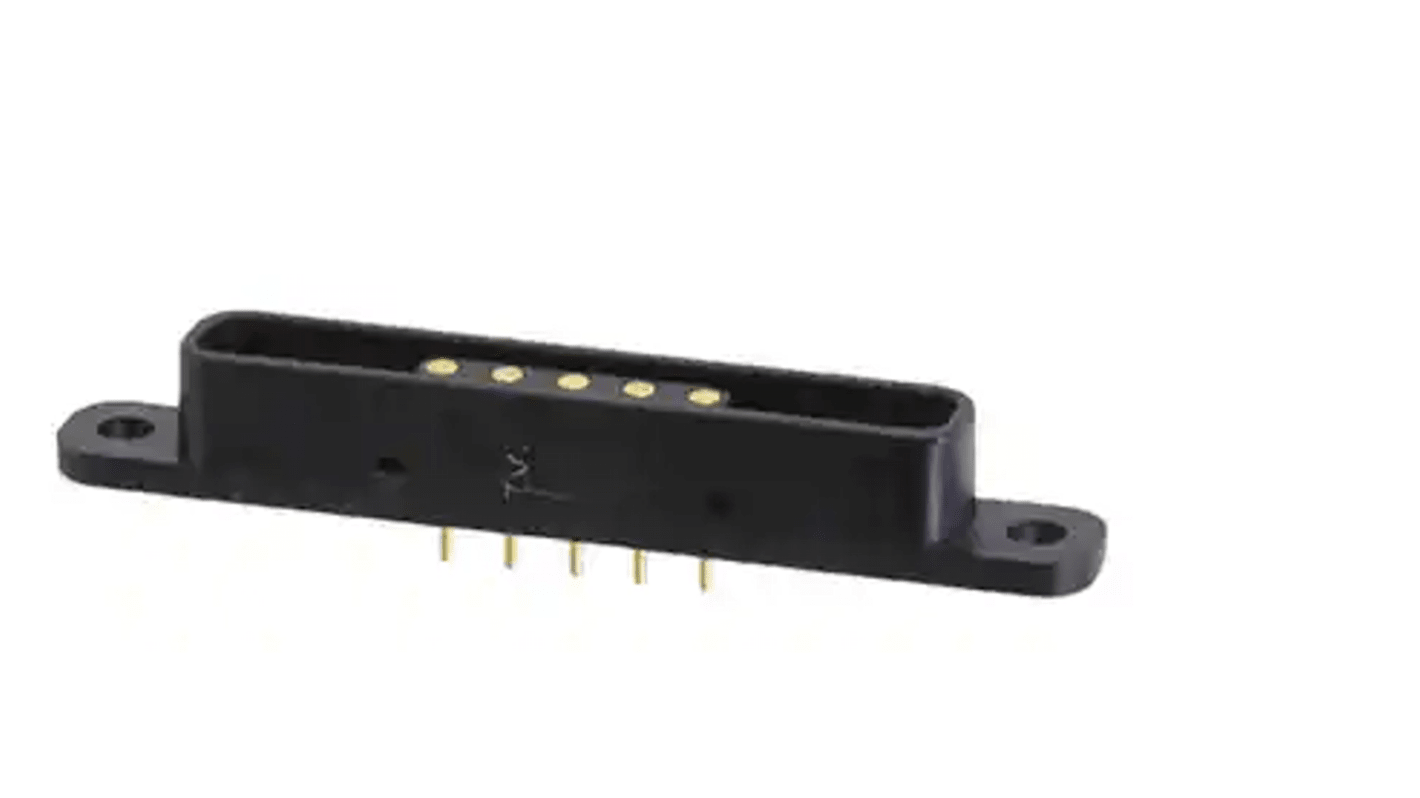

RS PRO PH1 Series Straight Surface PCB Socket, 5-Contact, 1 Row, 2.54 mm Pitch

RS Stock No.:: 227-2135
Brand:: RS PRO

RS PRO PH1 Series Straight Surface PCB Socket, 5-Contact, 1 Row, 2.54 mm Pitch

Subtotal (1 unit)*

£1.40

(exc. VAT)

£1.68

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

417 left, ready to ship
Final 1,721 unit(s) shipping from 23 January 2026

Units	Per unit
1 +	£1.40

*price indicative

RS Stock No.:: 227-2135
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	5
	Product Type	PCB Socket
	Sub Type	Pin Magnetic
	Number of Rows	1
	Pitch	2.54mm
	Current	3A
	Mount Type	Surface
	Orientation	Straight
	Connector System	Board-to-Board
	Voltage	12 V
	Series	PH1
	Contact Material	Copper Alloy Gold Plated
	Contact Plating	Gold
	Contact Gender	Female
	Standards/Approvals	No

	Select all
	Brand RS PRO
	Number of Contacts 5
	Product Type PCB Socket
	Sub Type Pin Magnetic
	Number of Rows 1
	Pitch 2.54mm
	Current 3A
	Mount Type Surface
	Orientation Straight
	Connector System Board-to-Board
	Voltage 12 V
	Series PH1
	Contact Material Copper Alloy Gold Plated
	Contact Plating Gold
	Contact Gender Female
	Standards/Approvals No

RS PRO 2.54mm Pitch 5 Way 1 Row Straight PCB Socket

These RS PRO Pogo Pins and Connectors (spring loaded terminals) consist of a pin, barrel, and steel spring with or without an insulator carrier. They are used in many industries across a wide range of applications to make a secure, high reliability connection. These sockets are highly customizable to meet specific stroke lengths, heights, and electrical capabilities. High-temp plastics are used for our insulators and unlimited moulding designs allow for many different shapes and styles to be created for specific applications.

Features and Benefits

High reliability corrects connection between uneven surfaces and satisfies high vibration connection requirements

Increased durability for heavy duty applications Highly Customizable

Size, stroke, shape, pin count, etc.

Low Cost and Easily Integrated

Lead free, RoHS compliant

Applications

These RS PRO PCB sockets can be used in a wide range of circuit board applications and can be used as alternatives to soldering relays directly to a PCB, allowing for easy replacement of timers or relays. They are used across many industries for a wide range of applications to make a secure and reliable connection.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
