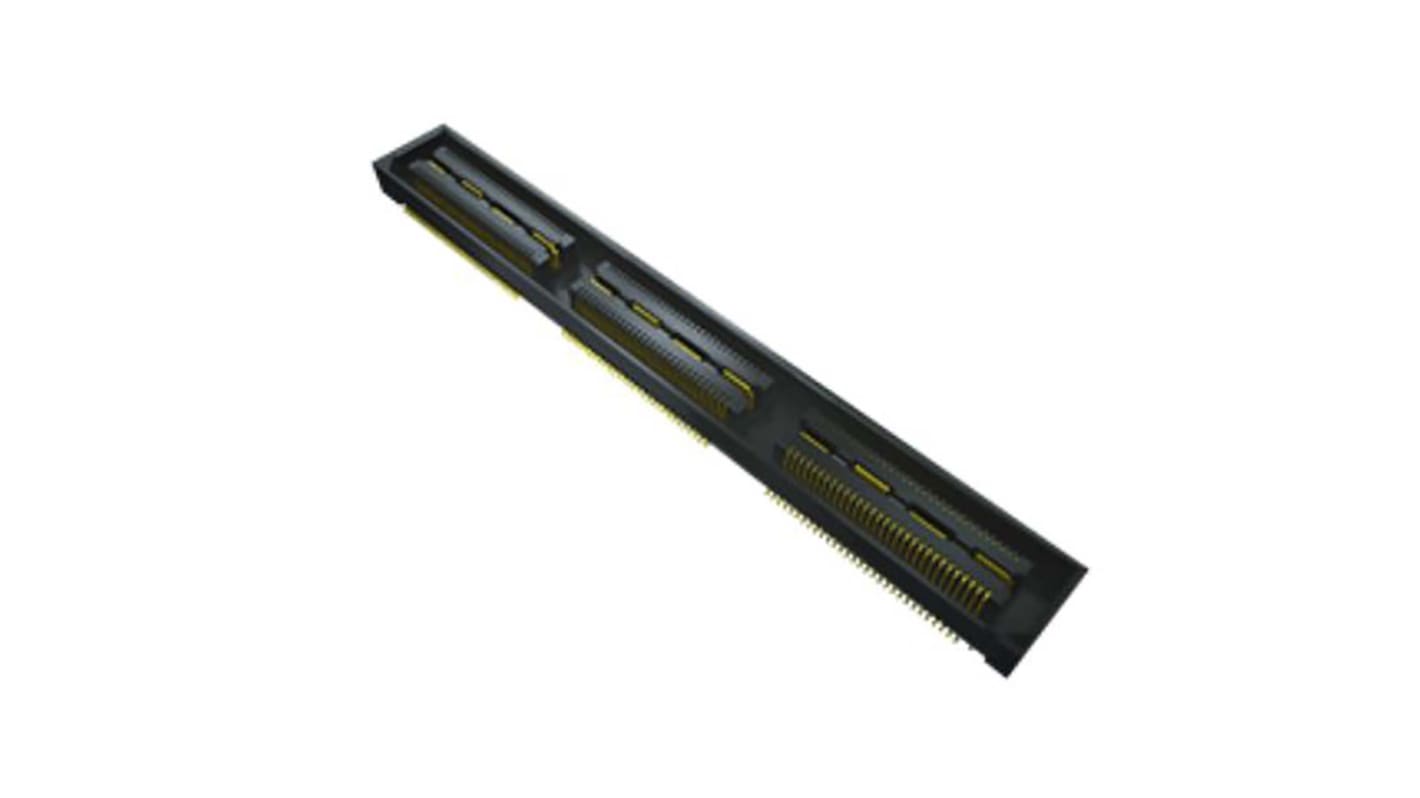

This high-speed ground plane PCB socket is designed to deliver reliable connectivity in compact spaces. It features a right-angle configuration that facilitates easy mating with coplanar and perpendicular connectors. The innovative design ensures minimal signal degradation. Its unique pin configuration allows for precise signal integrity, while the robust construction ensures durability even under demanding conditions. Featuring a right-angle configuration, it is specifically made for surface mounting on circuit boards. With a pitch of 0.5mm, this socket facilitates efficient board-to-board connections, making it suitable for various electronic assemblies. The component has a total of 60 contacts arranged in two rows, ensuring dependable connectivity in confined spaces.

• High-density design for space-saving applications
• Gold plating on contacts enhances conductivity and durability
• Solder termination method provides a secure electrical connection
• Compatible with board-to-board interconnects for seamless integration

• Used in electronic devices requiring compact connections
• Integrated into automation systems for dependable signalling
• Utilised in consumer electronics for space-efficient layouts
• Suitable for telecommunications equipment demanding high-speed data transfer

Standard surface mount tools can be used for installation.
