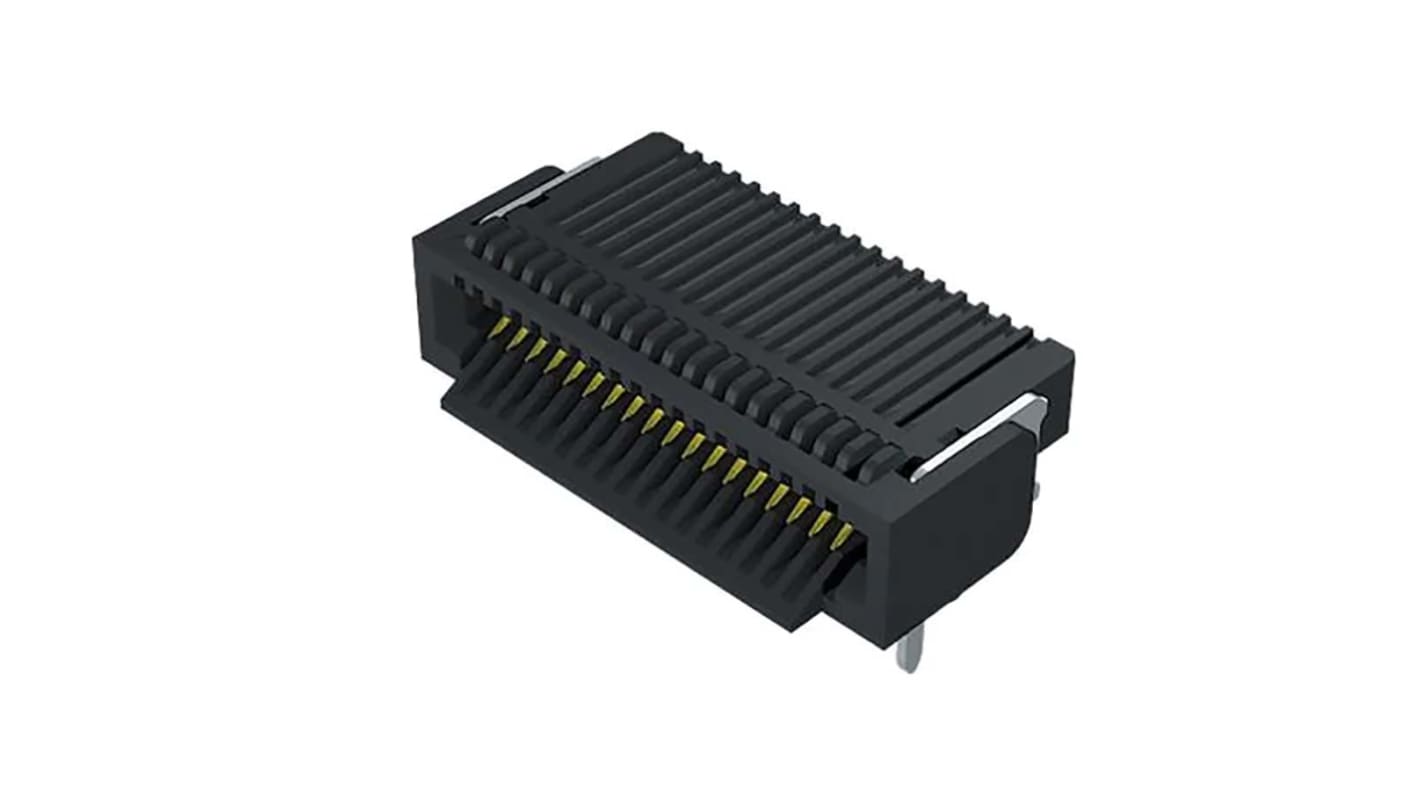

Samtec UEC5 Series Right Angle Through Hole PCB Socket, 19-Contact, 2 Row, 0.5 mm Pitch Solder
- RS Stock No.:
- 199-9977
- Mfr. Part No.:
- UEC5-019-2-H-D-RA-1
- Brand:
- Samtec
Bulk discount available
Subtotal (1 reel of 675 units)*
£7,638.30
(exc. VAT)
£9,165.825
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 675 - 675 | £11.316 | £7,638.30 |
| 1350 + | £10.683 | £7,211.03 |
*price indicative
- RS Stock No.:
- 199-9977
- Mfr. Part No.:
- UEC5-019-2-H-D-RA-1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Socket | |
| Number of Contacts | 19 | |
| Sub Type | Cable-to-Board | |
| Number of Rows | 2 | |
| Pitch | 0.5mm | |
| Current | 2.6A | |
| Termination Type | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| Mount Type | Through Hole | |
| Orientation | Right Angle | |
| Stacking Height | 5mm | |
| Connector System | Cable-to-Board | |
| Voltage | 100 V | |
| Series | UEC5 | |
| Row Pitch | 0.99mm | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Socket | ||
Number of Contacts 19 | ||
Sub Type Cable-to-Board | ||
Number of Rows 2 | ||
Pitch 0.5mm | ||
Current 2.6A | ||
Termination Type Solder | ||
Housing Material Liquid Crystal Polymer | ||
Mount Type Through Hole | ||
Orientation Right Angle | ||
Stacking Height 5mm | ||
Connector System Cable-to-Board | ||
Voltage 100 V | ||
Series UEC5 | ||
Row Pitch 0.99mm | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
The Samtec PCB socket UEC5 series is a Edge Card Socket Assembly. This micro high speed edge card connector is one part of a two-piece system with a tiny footprint on the board and interchangeable for both copper and optical flyover cable assemblies. The edge card connector provides data and supports signal speeds up to 20 Gbps.
Low profile right-angle design
Available in 19 positions
Standard alignment pins and surface mount tails
