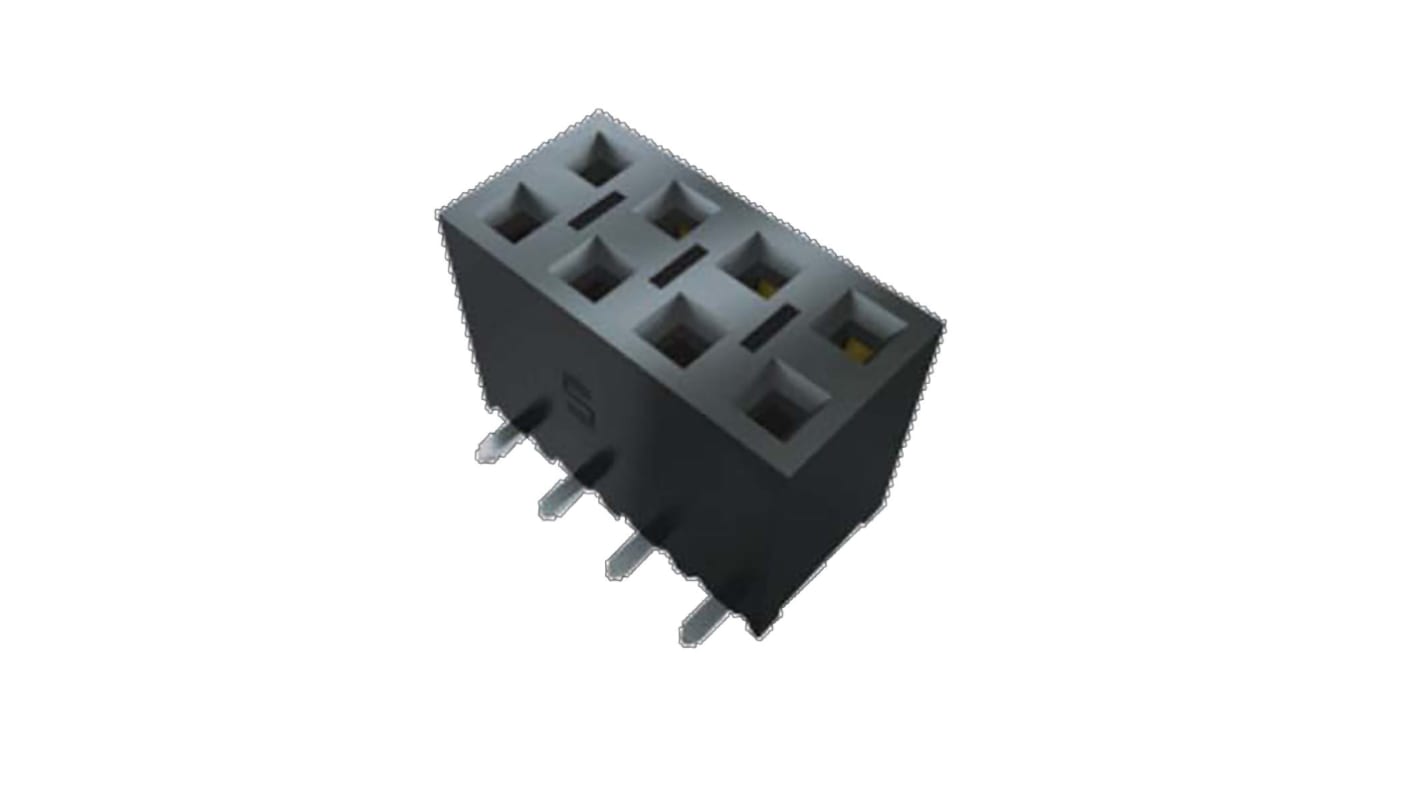

Samtec SSM Series Straight Surface PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch Surface Mount

View all PCB Sockets
Bulk discount available

Subtotal (1 pack of 2 units)*

£4.56

(exc. VAT)

£5.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 8£2.28£4.56
10 - 18£1.945£3.89
20 - 98£1.665£3.33
100 +£1.53£3.06

*price indicative

Packaging Options:
RS Stock No.:
198-1510
Mfr. Part No.:
SSM-104-L-DH-TR
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Number of Contacts

8

Product Type

PCB Socket

Number of Rows

2

Sub Type

Socket

Pitch

2.54mm

Current

5.2A

Termination Type

Surface Mount

Housing Material

Liquid Crystal Polymer

Mount Type

Surface

Orientation

Straight

Connector System

Board-to-Board

Voltage

572 V

Series

SSM

Row Pitch

2.5mm

Minimum Operating Temperature

-55°C

Contact Gender

Female

Contact Plating

Gold

Contact Material

Phosphor Bronze

Maximum Operating Temperature

125°C

Standards/Approvals

No

The Samtec SSM series consist of tiger claw surface mount socket. It has black liquid crystal polymer insulation and for contact phosphor bronze is used.

Current rating :5.2A per pin(2 pins powered)

Normal force:125grams (1.21N) average

Application: single and double row up to 80 pins

Voltage rating:405VAC/572VDC
