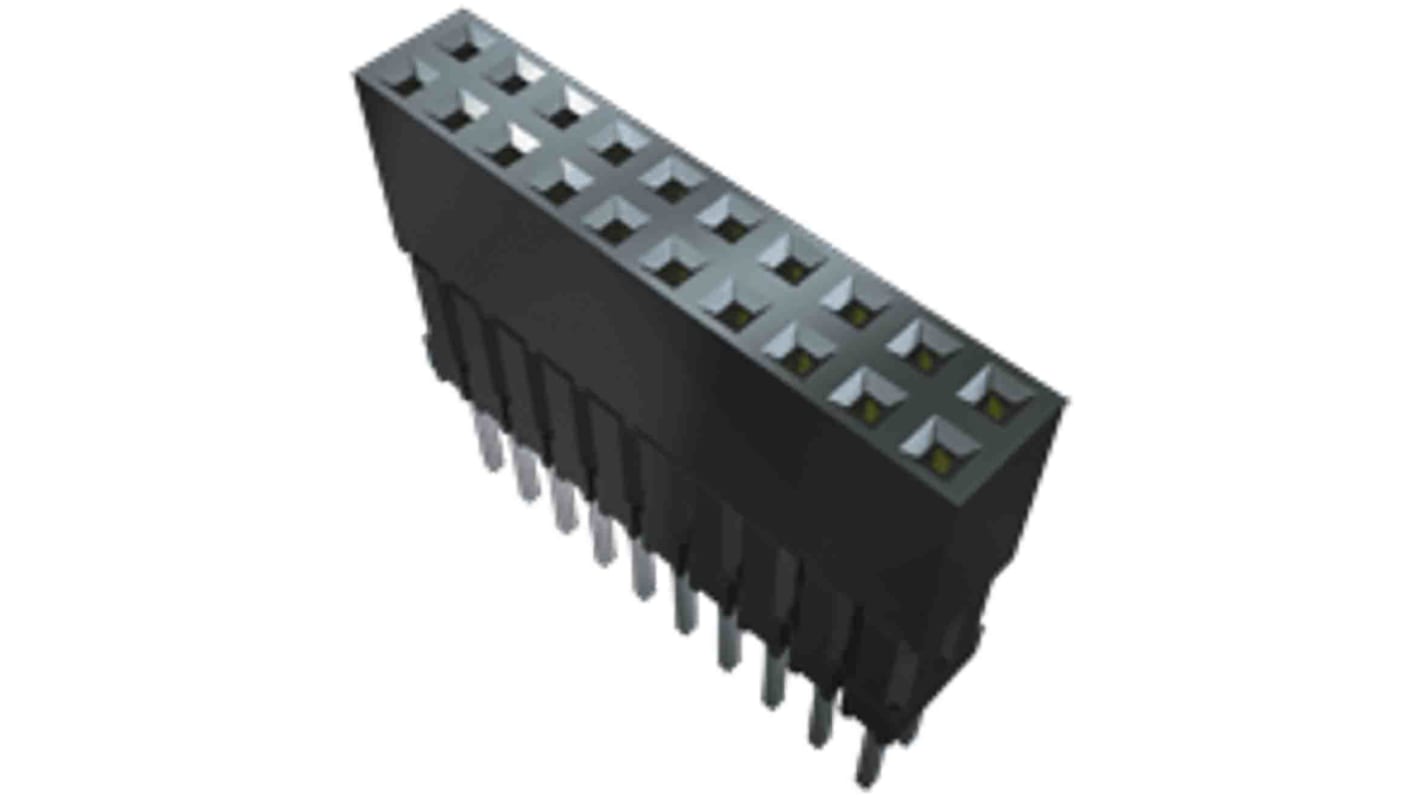

Samtec ESQ Series Straight Through Hole Mount PCB Socket, 16-Contact, 2-Row, 2.54mm Pitch, Solder Termination
- RS Stock No.:
- 196-9818
- Mfr. Part No.:
- ESQ-108-33-T-D
- Brand:
- Samtec
Available to back order for despatch 23/05/2024
Added
Price Each (In a Tube of 27)
£2.274
(exc. VAT)
£2.729
(inc. VAT)
| Units | Per unit | Per Tube* |
| 27 - 108 | £2.274 | £61.398 |
| 135 - 243 | £2.062 | £55.674 |
| 270 - 513 | £1.857 | £50.139 |
| 540 + | £1.796 | £48.492 |
| *price indicative | ||
- RS Stock No.:
- 196-9818
- Mfr. Part No.:
- ESQ-108-33-T-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec ESQ-108-33-T-D is an ESQ series elevated socket. It has standard and low insertion force contacts with 0.635mm square tails for PC/104 applications. Its contacts are made up of phosphor bronze.
Current rating is 5.7A per pin
Normal force is standard is 125grams (4.4N)
Max cycles is 100 with 10μ" (0.25μm) Au
Normal force is standard is 125grams (4.4N)
Max cycles is 100 with 10μ" (0.25μm) Au
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Type | Board to Board |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | Solder |
| Series | ESQ |
