Samtec Bar Series Right Angle PCB PCB Socket, 22-Contact, 5 Row, 0.633 mm Pitch Press-in
- RS Stock No.:
- 196-6807
- Mfr. Part No.:
- BAR-J-22
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£25.49
(exc. VAT)
£30.59
(inc. VAT)
Add 2 units to get free delivery
Last RS stock
- Final 4 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £25.49 |
| 5 - 24 | £24.11 |
| 25 - 49 | £23.02 |
| 50 - 99 | £22.11 |
| 100 + | £21.54 |
*price indicative
- RS Stock No.:
- 196-6807
- Mfr. Part No.:
- BAR-J-22
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 22 | |
| Product Type | PCB Socket | |
| Sub Type | Socket | |
| Number of Rows | 5 | |
| Pitch | 0.633mm | |
| Housing Material | Black LCP | |
| Termination Type | Press-in | |
| Mount Type | PCB | |
| Orientation | Right Angle | |
| Series | Bar | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 22 | ||
Product Type PCB Socket | ||
Sub Type Socket | ||
Number of Rows 5 | ||
Pitch 0.633mm | ||
Housing Material Black LCP | ||
Termination Type Press-in | ||
Mount Type PCB | ||
Orientation Right Angle | ||
Series Bar | ||
Standards/Approvals RoHS | ||

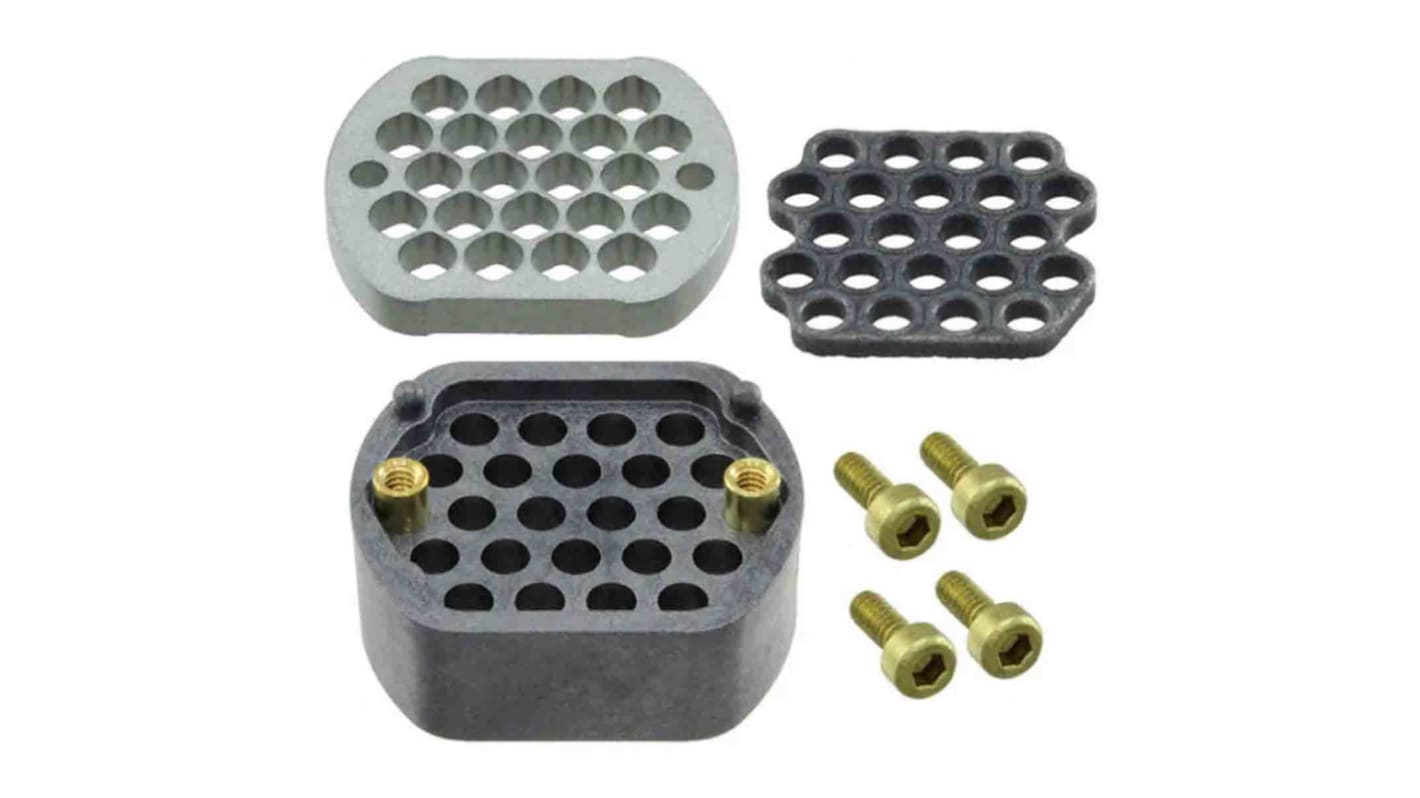

The Samtec BAR J-22 is a bulls eye high density, high performance test point array which has 22 contact position.
Insulator material is made up of black LCP
