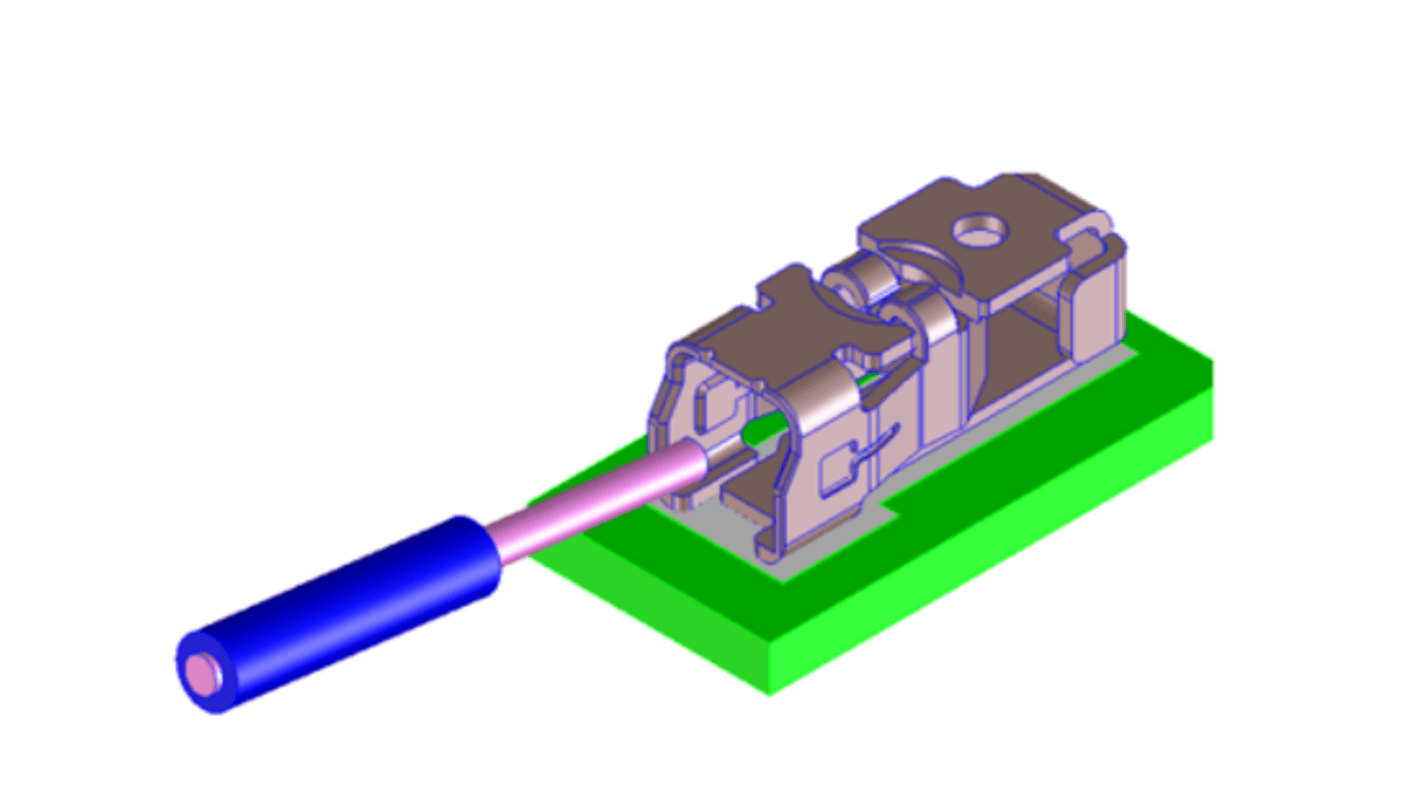

Molex 203863 Series Right Angle Surface PCB Socket, 1-Contact, 1 Row, 3 mm Pitch Solder
- RS Stock No.:
- 186-5159
- Mfr. Part No.:
- 203863-8103
- Brand:
- Molex
Bulk discount available
Subtotal (1 tape of 20 units)*
£7.14
(exc. VAT)
£8.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 20 - 80 | £0.357 | £7.14 |
| 100 - 180 | £0.334 | £6.68 |
| 200 - 380 | £0.307 | £6.14 |
| 400 - 980 | £0.289 | £5.78 |
| 1000 + | £0.267 | £5.34 |
*price indicative
- RS Stock No.:
- 186-5159
- Mfr. Part No.:
- 203863-8103
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Socket | |
| Number of Contacts | 1 | |
| Number of Rows | 1 | |
| Sub Type | PCB Receptacle | |
| Current | 12A | |
| Pitch | 3mm | |
| Termination Type | Solder | |
| Mount Type | Surface | |
| Orientation | Right Angle | |
| Connector System | Wire-to-Board | |
| Voltage | 300 V | |
| Series | 203863 | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Maximum Operating Temperature | 130°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Socket | ||
Number of Contacts 1 | ||
Number of Rows 1 | ||
Sub Type PCB Receptacle | ||
Current 12A | ||
Pitch 3mm | ||
Termination Type Solder | ||
Mount Type Surface | ||
Orientation Right Angle | ||
Connector System Wire-to-Board | ||
Voltage 300 V | ||
Series 203863 | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Maximum Operating Temperature 130°C | ||
Standards/Approvals RoHS | ||
RoHS Status: Exempt
Lite-Trap Contact Terminal, Double Contact, Copper Alloy, 1 Circuit
