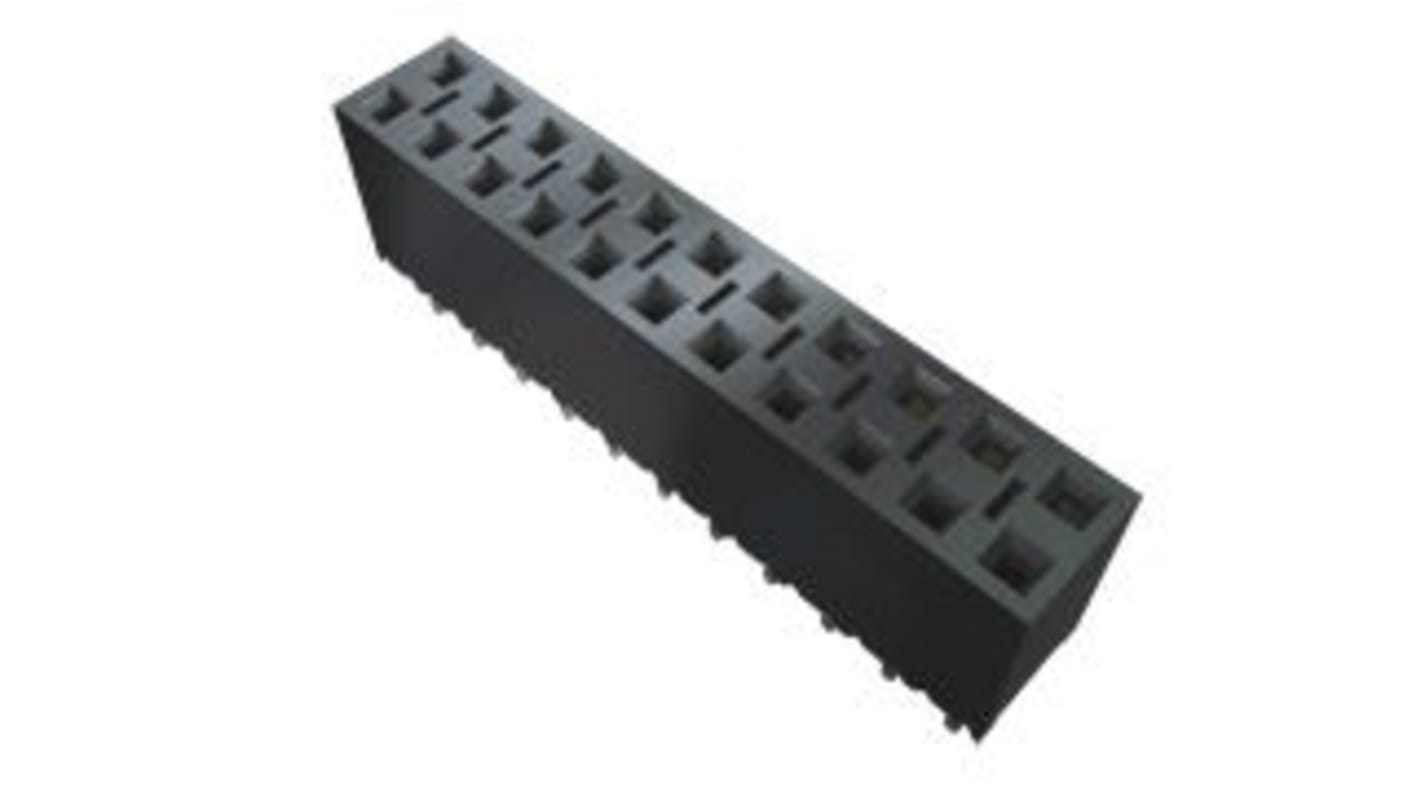

Samtec BCS Series Straight Through Hole PCB Socket, 64-Contact, 2 Row, 2.54 mm Pitch Solder

View all PCB Sockets

Subtotal (1 tube of 6 units)*

£56.58

(exc. VAT)

£67.92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
6 +£9.43£56.58

*price indicative

RS Stock No.:
180-3489
Mfr. Part No.:
BCS-132-L-D-TE
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Product Type

PCB Socket

Number of Contacts

64

Sub Type

Pass-Through Socket Strip

Number of Rows

2

Current

4.6A

Pitch

2.54mm

Termination Type

Solder

Housing Material

Liquid Crystal Polymer

Mount Type

Through Hole

Orientation

Straight

Connector System

Board-to-Board

Voltage

475 V

Series

BCS

Minimum Operating Temperature

-55°C

Row Pitch

2.54mm

Contact Material

Bronze

Maximum Operating Temperature

125°C

Contact Plating

Gold

Standards/Approvals

No

Pitch: .100" (2.54 mm)

Contact System: Tiger Claw™

Orientation: Vertical, horizontal

Termination: Through-hole

Application: Single and double row up to 100 pins

Special Features: Top and bottom entry pass-through options
