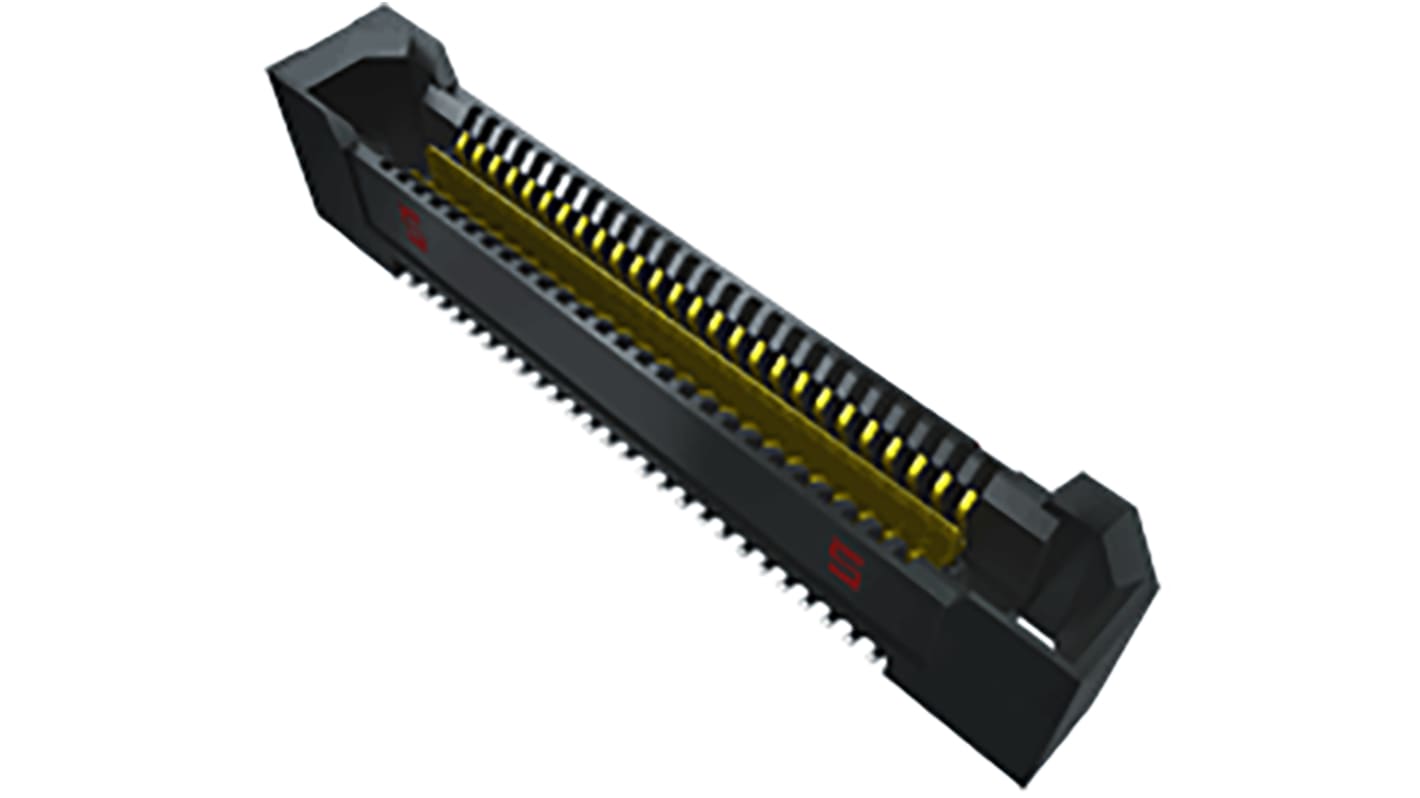

Samtec QRF8 Series Straight Surface Mount PCB Socket, 52-Contact, 2-Row, 0.8mm Pitch, Solder Termination

View all PCB Sockets
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
179-9050
Mfr. Part No.:
QRF8-026-05.0-L-D-A
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Number of Contacts

52

Number of Rows

2

Pitch

0.8mm

Type

Board to Board

Mounting Type

Surface Mount

Body Orientation

Straight

Termination Method

Solder

Stacking Height

10mm

Current Rating

2.2 A, 8.5A

Voltage Rating

215 V

Series

QRF8

Contact Material

Beryllium Copper

COO (Country of Origin):
CR

QRF8 Series Slim Body Ground Plane Sockets


These Board to Board QRF8 Series connectors have 0.25 μm Gold plated contacts with Tin plated Tails. This range of Board to Board QRF8 Series connectors are available: with and without Guide Posts, straight or right angle, 5 or 7 mm body heights. The design of these Board to Board QRF8 Series connector includes samtec's Edge Rate contacts.

QRF8-xxx-05.0-x-x-x-xx have a Body height of 5 mm
QRF8-xxx-07.0-x-x-x-xx have a Body height of 7 mm
QRF8-xxx-xx.x-x-x-x-GP have Guide Posts
QRF8-xxx-xx-x-RA-GP have a horizontal orientation with Guide Posts

Note

Mates with QRM8 Series Headers see stock number 767-7115 typical.
Guide Post versions require Guide Post mating articles.
Rugged Edge Rate® contacts
Integral ground/power plane
Slim 4.60 mm width
Extended Life Product™ (E.L.P.™)
7 mm - 14 mm stack heights
Up to 156 positions
Dual sourced By Hirose®
Samtec 28+ Gbps Solution


0.8mm Board to Board - Samtec
