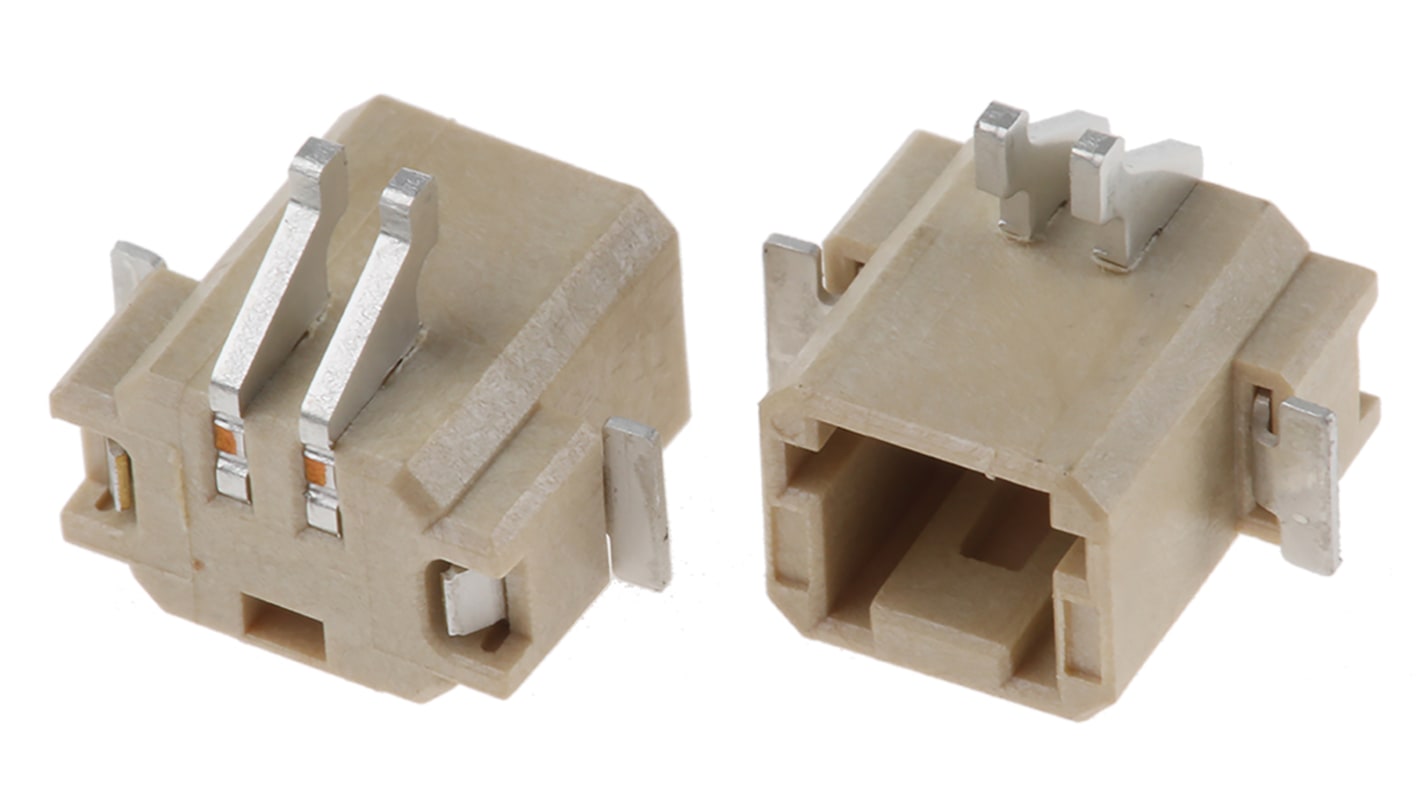

TE Connectivity Straight Surface Mount PCB Socket, 2-Contact, 1-Row, 1.5mm Pitch, Solder Termination
- RS Stock No.:
- 164-0976
- Mfr. Part No.:
- 2106091-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 164-0976
- Mfr. Part No.:
- 2106091-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Pitch | 1.5mm | |
| Type | Wire to Board | |
| Mounting Type | Surface Mount | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Current Rating | 12A | |
| Voltage Rating | 50 V | |
| Contact Material | Copper | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Pitch 1.5mm | ||
Type Wire to Board | ||
Mounting Type Surface Mount | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Current Rating 12A | ||
Voltage Rating 50 V | ||
Contact Material Copper | ||
- COO (Country of Origin):
- US
TE Connectivity Inverted SMT Through Board Connectors
Inverted SMT through board connectors designed to bring power to LED aluminium clad and FR4 boards from the underside of the PCB. The design of this connector eliminates wire dress management issues on the LED PCB. The connector is positioned on the PCB using a cutout or notch in the PCB. These inverted SMT lighting connectors have a low profile design and rounded corners to minimize shadowing. The top of the connector is flat to allow vacuum pick-up. Surface mount hold downs provide stability during mating and unmating. The housings of the connectors are made from high temperature thermoplastic allowing them to be used in reflow processing. These inverted SMT through board lighting connectors mate with the Mini CT connectors.
Features and Benefits
• Eliminate wire dress management issues on LED PCB
• Low profile design
• Rounded corners minimize shadowing
• Surface mount hold downs for secure connection on PCB
• High temperature thermoplastic housings for reflow soldering
• Suitable for vacuum pick up
• Low profile design
• Rounded corners minimize shadowing
• Surface mount hold downs for secure connection on PCB
• High temperature thermoplastic housings for reflow soldering
• Suitable for vacuum pick up
Application
These inverted SMT through board connectors are suitable for use in a range of LED lighting applications. These applications include indoor and outdoor lighting fixtures and general LED illumination fixtures. They can also be used in non-lighting applications that need wire dress connections below the PCB
