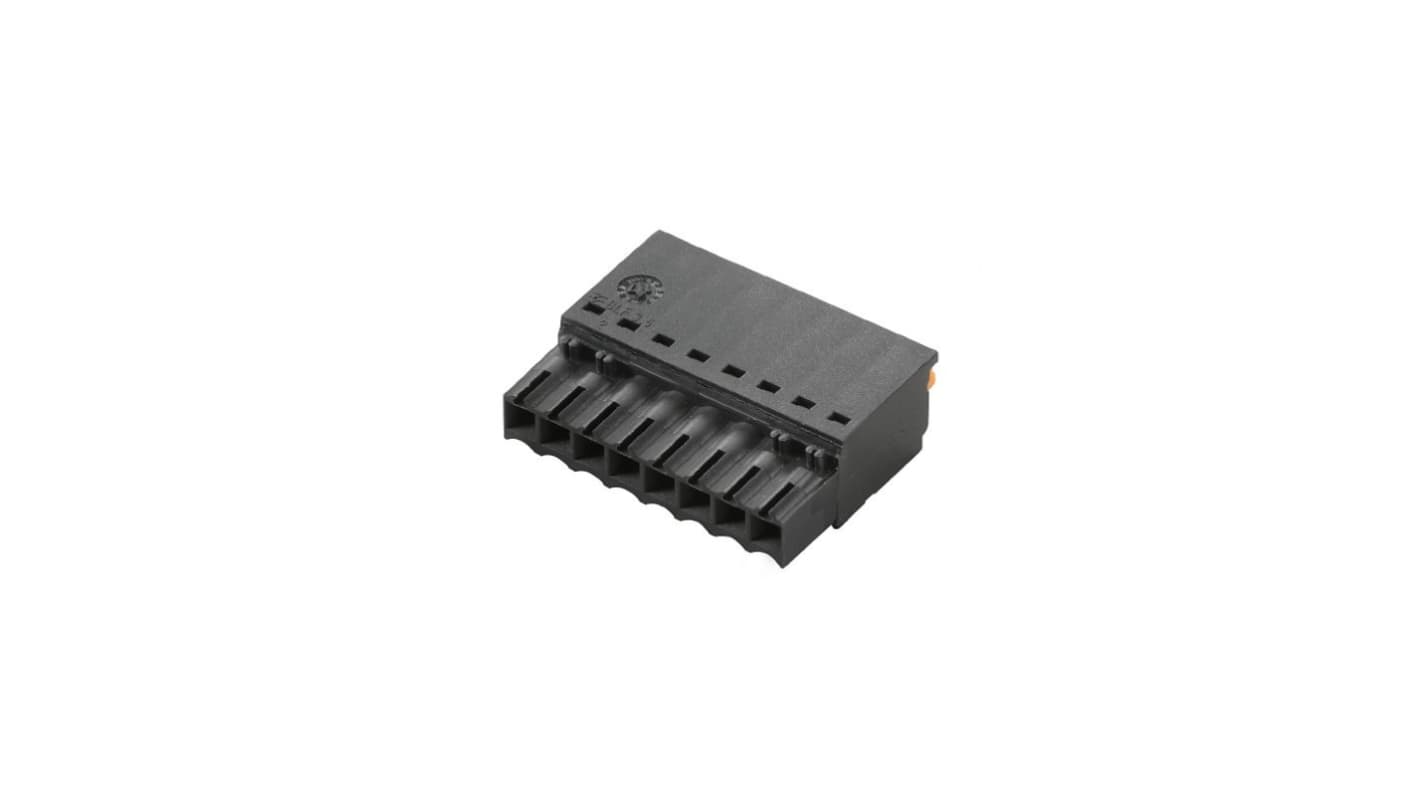

Weidmüller 2459340000 Series Straight PCB Socket, 8-Contact, 1 Row, 3.5 mm Pitch Push-in
- RS Stock No.:
- 688-131
- Mfr. Part No.:
- 2459340000
- Brand:
- Weidmüller
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 2 units)*
£12.40
(exc. VAT)
£14.88
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 33 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 9 | £12.40 | £6.20 |
| 10 + | £11.41 | £5.705 |
*price indicative
- RS Stock No.:
- 688-131
- Mfr. Part No.:
- 2459340000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | PCB Socket | |
| Number of Contacts | 8 | |
| Sub Type | PCB Plug-In Connector | |
| Number of Rows | 1 | |
| Pitch | 3.5mm | |
| Current | 17.5A | |
| Termination Type | Push-in | |
| Housing Material | Polyamide Fibreglass | |
| Orientation | Straight | |
| Voltage | 32V | |
| Series | 2459340000 | |
| Minimum Operating Temperature | 50°C | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 120°C | |
| Contact Plating | Tinned | |
| Contact Gender | Female | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | IEC 61984, cURus E60693, IEC 60068-2-70, IEC 60-1, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60664-1, IEC 60947-1, IEC 61984:2001-10, UL 94 V-0 | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type PCB Socket | ||
Number of Contacts 8 | ||
Sub Type PCB Plug-In Connector | ||
Number of Rows 1 | ||
Pitch 3.5mm | ||
Current 17.5A | ||
Termination Type Push-in | ||
Housing Material Polyamide Fibreglass | ||
Orientation Straight | ||
Voltage 32V | ||
Series 2459340000 | ||
Minimum Operating Temperature 50°C | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 120°C | ||
Contact Plating Tinned | ||
Contact Gender Female | ||
Contact Material Copper Alloy | ||
Standards/Approvals IEC 61984, cURus E60693, IEC 60068-2-70, IEC 60-1, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60664-1, IEC 60947-1, IEC 61984:2001-10, UL 94 V-0 | ||
- COO (Country of Origin):
- RO
The Weidmuller 8 pole female PCB plug-in connector designed for 3.50 mm pitch applications. It features a 180° orientation and utilizes a PUSH IN connection method with an actuator, accommodating wire sizes up to 1.5 mm² (approximately 16 AWG). This connector is suitable for industrial applications requiring secure and efficient connections. The connector offers a rated voltage of 320 V and a rated current of 17.5 A according to IEC standards, and 300 V and 10 A according to UL standards.
IP20 protection rated
Can be coded
RoHS compliant
Touch safe protection according to DIN VDE 0470
