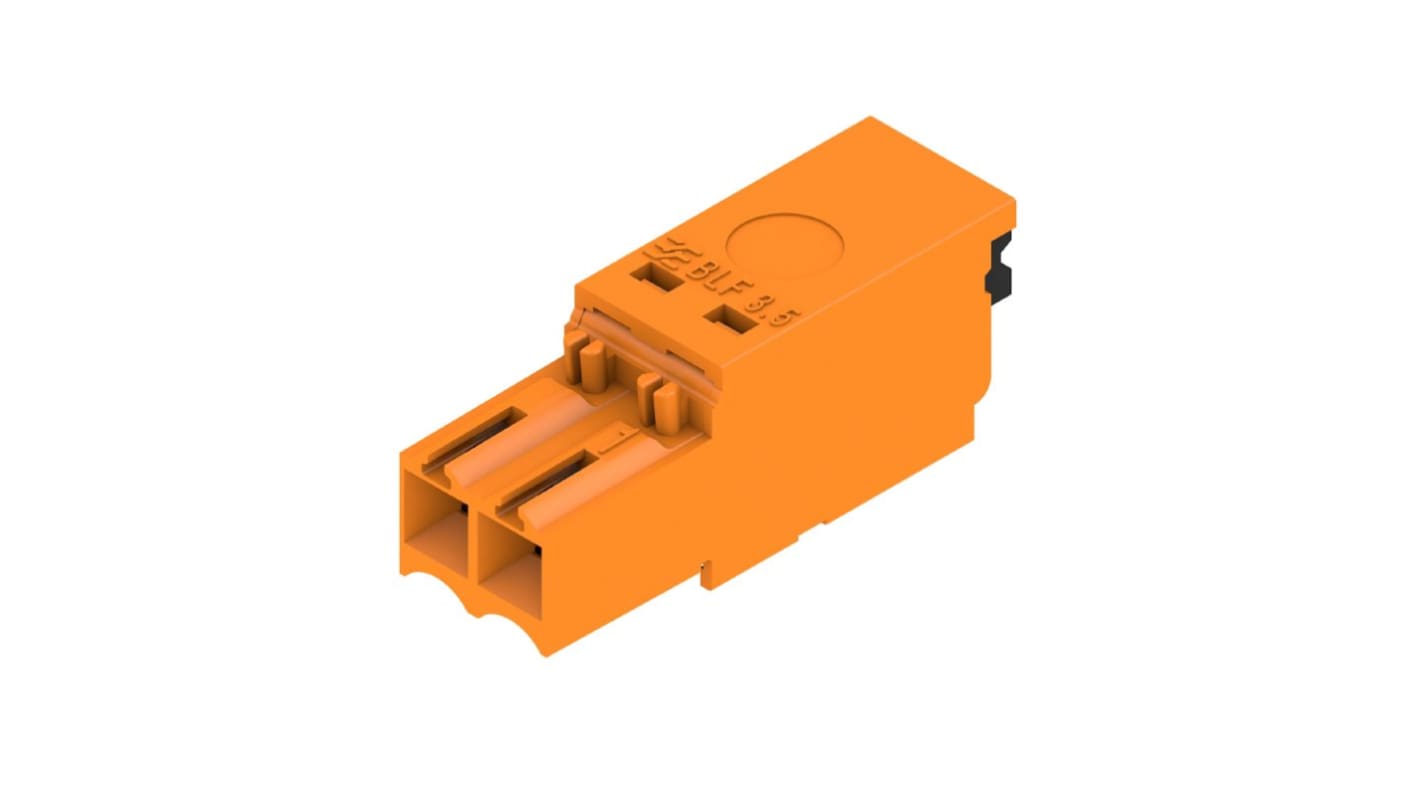

Weidmüller 2458950000 Series Straight PCB Socket, 2-Contact, 1 Row, 3.5 mm Pitch Push-in
- RS Stock No.:
- 688-114
- Mfr. Part No.:
- 2458950000
- Brand:
- Weidmüller
Bulk discount available
Subtotal (1 bag of 5 units)*
£8.86
(exc. VAT)
£10.63
(inc. VAT)
Stock information currently inaccessible - Please check back later
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £8.86 | £1.772 |
| 5 - 9 | £8.15 | £1.63 |
| 10 + | £7.35 | £1.47 |
*price indicative
- RS Stock No.:
- 688-114
- Mfr. Part No.:
- 2458950000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 2 | |
| Product Type | PCB Socket | |
| Sub Type | PCB Plug-In Connector | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Pitch | 3.5mm | |
| Termination Type | Push-in | |
| Housing Material | Polyamide Fibreglass | |
| Orientation | Straight | |
| Voltage | 32V | |
| Series | 2458950000 | |
| Minimum Operating Temperature | 50°C | |
| Row Pitch | 3.5mm | |
| Contact Plating | Tinned | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 120°C | |
| Contact Gender | Female | |
| Standards/Approvals | UL, IEC 61984:2001-10, IEC 61984, IEC 60947-1, IEC 60664-1, IEC 60512-13-5, IEC 60512-1-2, IEC 60512-1-1, IEC 60-1, IEC 60068-2-70, CSA | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 2 | ||
Product Type PCB Socket | ||
Sub Type PCB Plug-In Connector | ||
Number of Rows 1 | ||
Current 17.5A | ||
Pitch 3.5mm | ||
Termination Type Push-in | ||
Housing Material Polyamide Fibreglass | ||
Orientation Straight | ||
Voltage 32V | ||
Series 2458950000 | ||
Minimum Operating Temperature 50°C | ||
Row Pitch 3.5mm | ||
Contact Plating Tinned | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 120°C | ||
Contact Gender Female | ||
Standards/Approvals UL, IEC 61984:2001-10, IEC 61984, IEC 60947-1, IEC 60664-1, IEC 60512-13-5, IEC 60512-1-2, IEC 60512-1-1, IEC 60-1, IEC 60068-2-70, CSA | ||
- COO (Country of Origin):
- RO
The Weidmuller PCB plug-in connector is a 2 pole female plug with a 3.50 mm pitch and a 180° orientation. It features a PUSH IN connection with actuator for quick and tool-free wiring, supporting a maximum clamping range of 1.5 mm². Supplied in a box, it ensures secure and efficient connections in Compact electronic applications.
IP20 protection rated
Can be coded
RoHS compliant
Touch safe protection according to DIN VDE 0470
