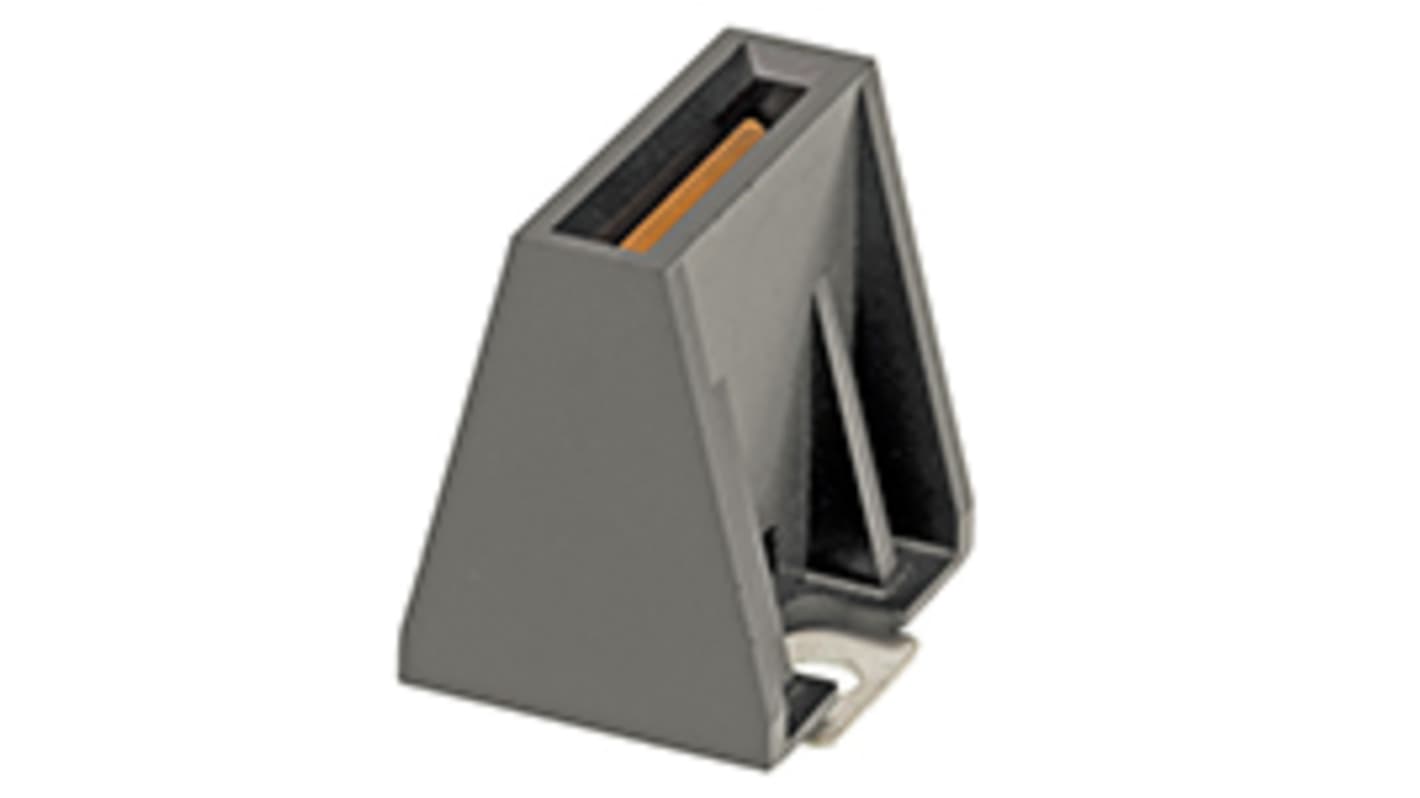

Molex 45711 Series Vertical Vertical PCB Socket, 1-Contact, 1 Row Screw
- RS Stock No.:
- 507-553
- Distrelec Article No.:
- 304-62-243
- Mfr. Part No.:
- 45711-1000
- Brand:
- Molex
Subtotal (1 tray of 30 units)*
£153.62
(exc. VAT)
£184.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £153.62 | £5.121 |
*price indicative
- RS Stock No.:
- 507-553
- Distrelec Article No.:
- 304-62-243
- Mfr. Part No.:
- 45711-1000
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Socket | |
| Number of Contacts | 1 | |
| Number of Rows | 1 | |
| Sub Type | PCB Receptacle | |
| Current | 320A | |
| Termination Type | Screw | |
| Housing Material | Polyester | |
| Mount Type | Vertical | |
| Orientation | Vertical | |
| Voltage | 600 V | |
| Series | 45711 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Standards/Approvals | IEC 61249-2-21, UL E29179, REACH SVHC, IPC 1752A Class D, IPC 1752A Class C, IEC-62474, EU RoHS, CSA LR19980, 94V-0 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Socket | ||
Number of Contacts 1 | ||
Number of Rows 1 | ||
Sub Type PCB Receptacle | ||
Current 320A | ||
Termination Type Screw | ||
Housing Material Polyester | ||
Mount Type Vertical | ||
Orientation Vertical | ||
Voltage 600 V | ||
Series 45711 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Standards/Approvals IEC 61249-2-21, UL E29179, REACH SVHC, IPC 1752A Class D, IPC 1752A Class C, IEC-62474, EU RoHS, CSA LR19980, 94V-0 | ||
- COO (Country of Origin):
- MY
The TE Connectivity Power Plane Bus Bar Assembly is designed to provide reliable and efficient connections in various electronic applications. Engineered for vertical mounting, this product is compatible with standard bus bars and boasts a robust construction that ensures long-lasting performance. The gold-plated contacts provide superior conductivity, making it ideal for high-current applications. With its exceptional durability rated for 50 mating cycles, this bus bar assembly is an optimal choice for environments requiring dependable connectivity without compromise. The incorporation of advanced materials ensures that this product meets stringent industry standards, while its compact and versatile design allows for seamless integration into various setups, promoting enhanced operational efficiency.
Vertical mount configuration enables easy integration into compact spaces
Gold plating enhances conductivity while ensuring resistance to corrosion
Designed for high current capacities, facilitating reliable performance
Durability rating of 50 mating cycles provides long operational life
Manufactured from copper alloy for structural integrity and strength
