TE Connectivity 188275 Series Vertical Surface FPC Connector, 14-Contact, 2 Row, 1.27 mm Pitch 230
- RS Stock No.:
- 304-980P
- Mfr. Part No.:
- 8-188275-4
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal 5 units (supplied on a continuous strip)*
£37.85
(exc. VAT)
£45.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 333 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 + | £7.57 |
*price indicative
- RS Stock No.:
- 304-980P
- Mfr. Part No.:
- 8-188275-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 14 | |
| Product Type | FPC Connector | |
| Number of Rows | 2 | |
| Sub Type | Connector Assembly | |
| Pitch | 1.27mm | |
| Current | 1.5A | |
| Termination Type | 230 | |
| Housing Material | Polyamide 4.6 | |
| Mount Type | Surface | |
| Orientation | Vertical | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Voltage | 230V | |
| Series | 188275 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Contact Plating | Tin | |
| Contact Material | Tin | |
| Standards/Approvals | UL, E28476, RoHS, UL94-V-0 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 14 | ||
Product Type FPC Connector | ||
Number of Rows 2 | ||
Sub Type Connector Assembly | ||
Pitch 1.27mm | ||
Current 1.5A | ||
Termination Type 230 | ||
Housing Material Polyamide 4.6 | ||
Mount Type Surface | ||
Orientation Vertical | ||
Connector System Board-to-Board, Wire-to-Board | ||
Voltage 230V | ||
Series 188275 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Contact Plating Tin | ||
Contact Material Tin | ||
Standards/Approvals UL, E28476, RoHS, UL94-V-0 | ||
- COO (Country of Origin):
- DE

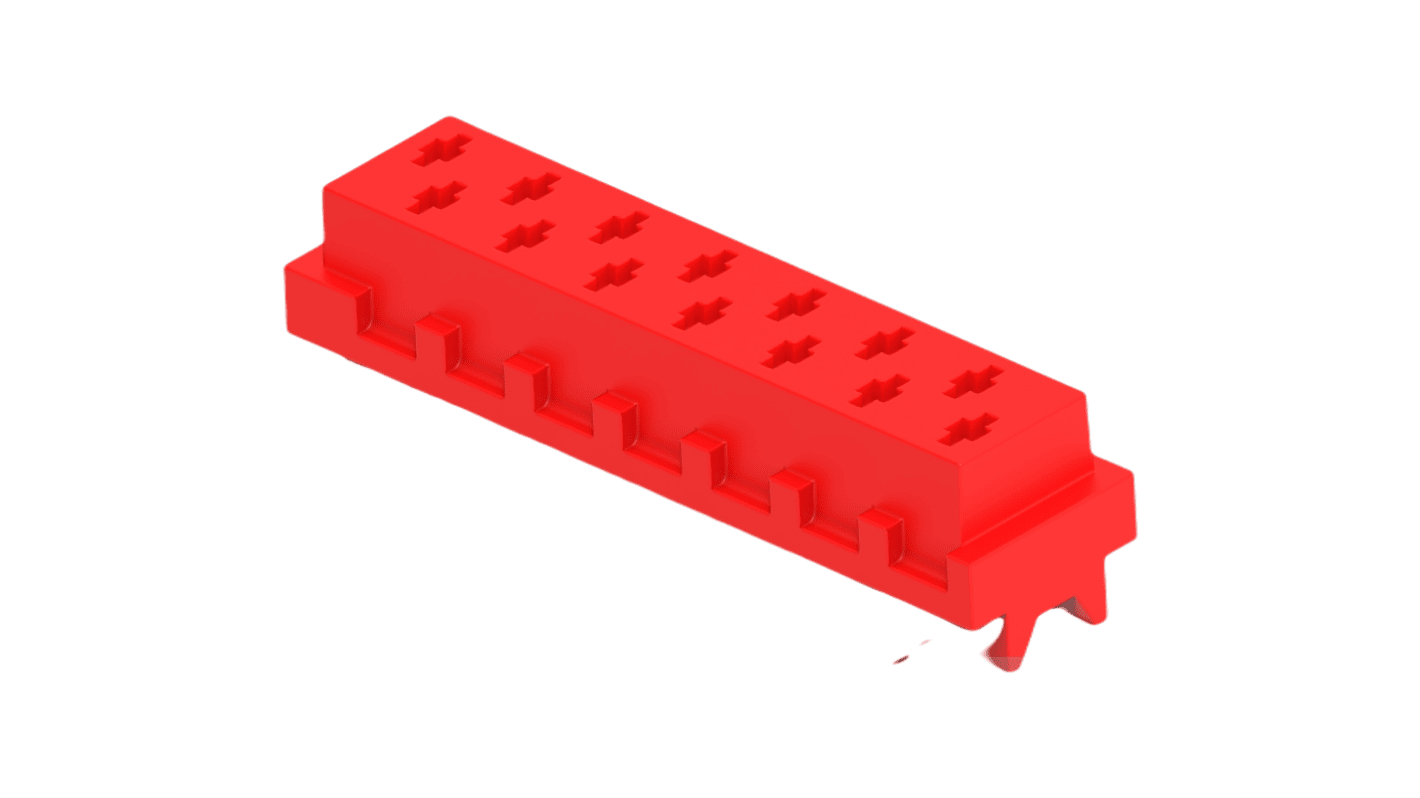

The TE Connectivity Connector is a 14-position, vertical receptacle designed for surface-mount applications. It features a 1.27 mm [.05 in] centreline and a 2-row configuration, ensuring Compact and reliable connections between boards. Part of the Micro-Match Industrial series, this connector is Ideal for ribbon cable connections, offering secure and efficient electrical interfaces in various industrial and electronic systems.
Shrouded cable header
PA 4.6 housing
EU ELV compliant
RoHS compliant
