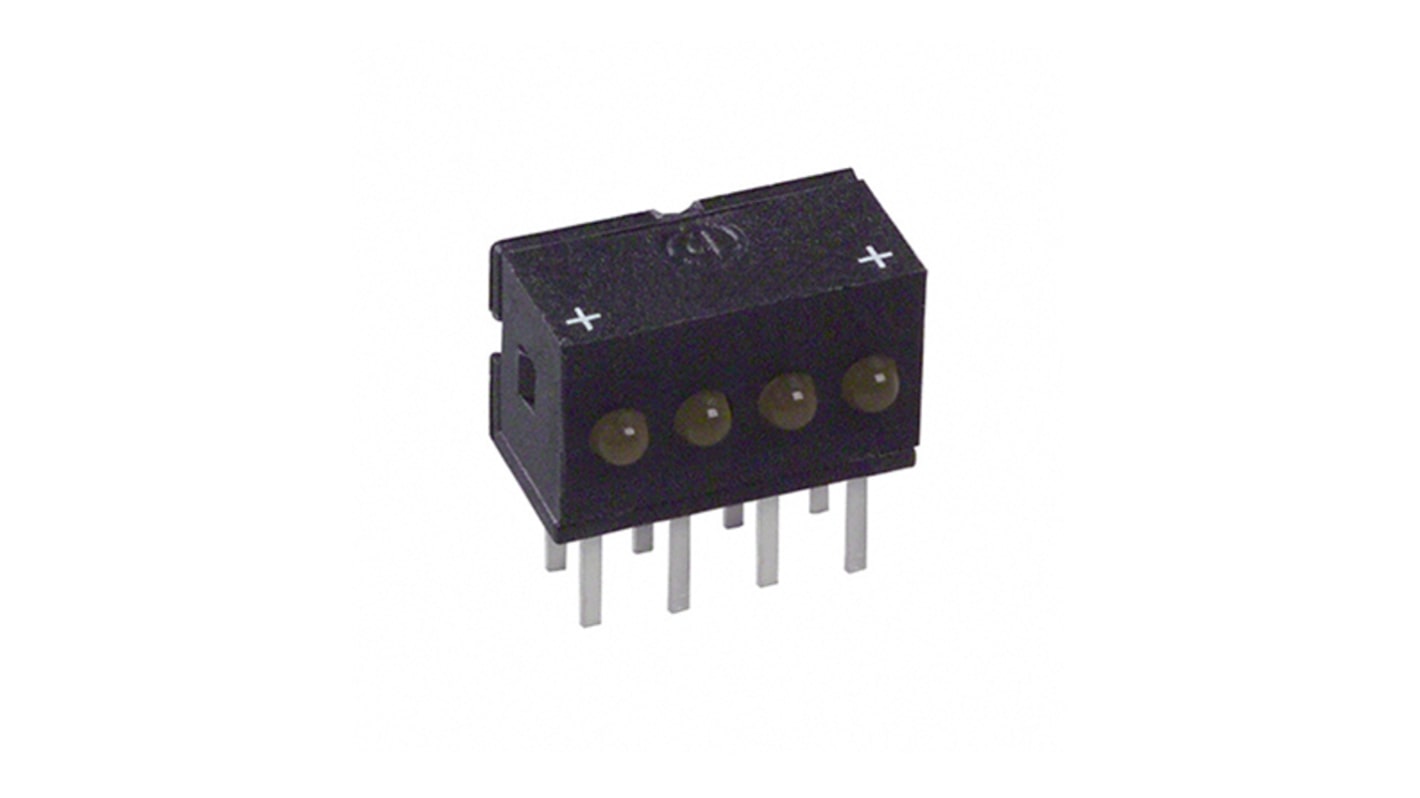

Dialight 555-4403F, Yellow Right Angle PCB LED Indicator, 4 LEDs 2mm (T-3/4), Through Hole
- RS Stock No.:
- 890-7126
- Mfr. Part No.:
- 555-4403F
- Brand:
- Dialight
Discontinued product
- RS Stock No.:
- 890-7126
- Mfr. Part No.:
- 555-4403F
- Brand:
- Dialight
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Dialight 555-4 Series LED CBI® Circuit Board Indicators
The 555-4xxx series, from Dialight, are quad LED CBI® circuit board indicators. These PCB LED indicators contain four 2mm (T-3/4) LEDs within a black plastic housing. The housing sits the LEDs at a right angle to the board whilst providing a high contrast between itself and the LED. The 555-4xxx is available with general purpose and integral resistor LED types.
Features of the 555-4xxx PCB LED indicators:
4 x 2mm (T-3/4) LEDs
Variety of colours
Black plastic housing
Right angle
Through-hole mounting
Compatible with 555-2xxx Single Block
4 x 2mm (T-3/4) LEDs
Variety of colours
Black plastic housing
Right angle
Through-hole mounting
Compatible with 555-2xxx Single Block
PCB LED Indicators, Dialight
Specifications
Attribute | Value |
|---|---|
| LED Colours | Yellow |
| Number of LEDs | 4 |
| Mounting Type | Through Hole |
| Number of Pins | 8 |
| Viewing Angle | 40 ° |
| Dominant Wavelength | 585 nm |
| LED Orientation | Right Angle |
| Dimensions | 6.22 x 10.29 x 6.35mm |
| Length | 6.22mm |
| Width | 10.29mm |
| Height | 6.35mm |
| Forward Current | 4.7mA |
| Lens Colour | Yellow |
| Configuration | Quad-Level |
| LED Size | 2mm (T-3/4) |
| Series | 555 |
| Standards Met | EC 825-1, EN-60825-1, MIL-STD-202F, RoHS Compliant, UL 94V-0 |
| Intensity | 2.1mcd |
| Lens Finish | Non-Diffused |
