TE Connectivity Commercial MATE-N-LOK Series Straight Through Hole PCB Header, 4 Contact(s), 5.08mm Pitch, 1 Row(s),
- RS Stock No.:
- 865-7342
- Mfr. Part No.:
- 794287-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 865-7342
- Mfr. Part No.:
- 794287-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Commercial MATE-N-LOK | |
| Pitch | 5.08mm | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Through Hole | |
| Connector System | Wire to Board | |
| Termination Method | Solder | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Current Rating | 12.0A | |
| Voltage Rating | 250.0 V | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Commercial MATE-N-LOK | ||
Pitch 5.08mm | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Through Hole | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Current Rating 12.0A | ||
Voltage Rating 250.0 V | ||
- COO (Country of Origin):
- CN

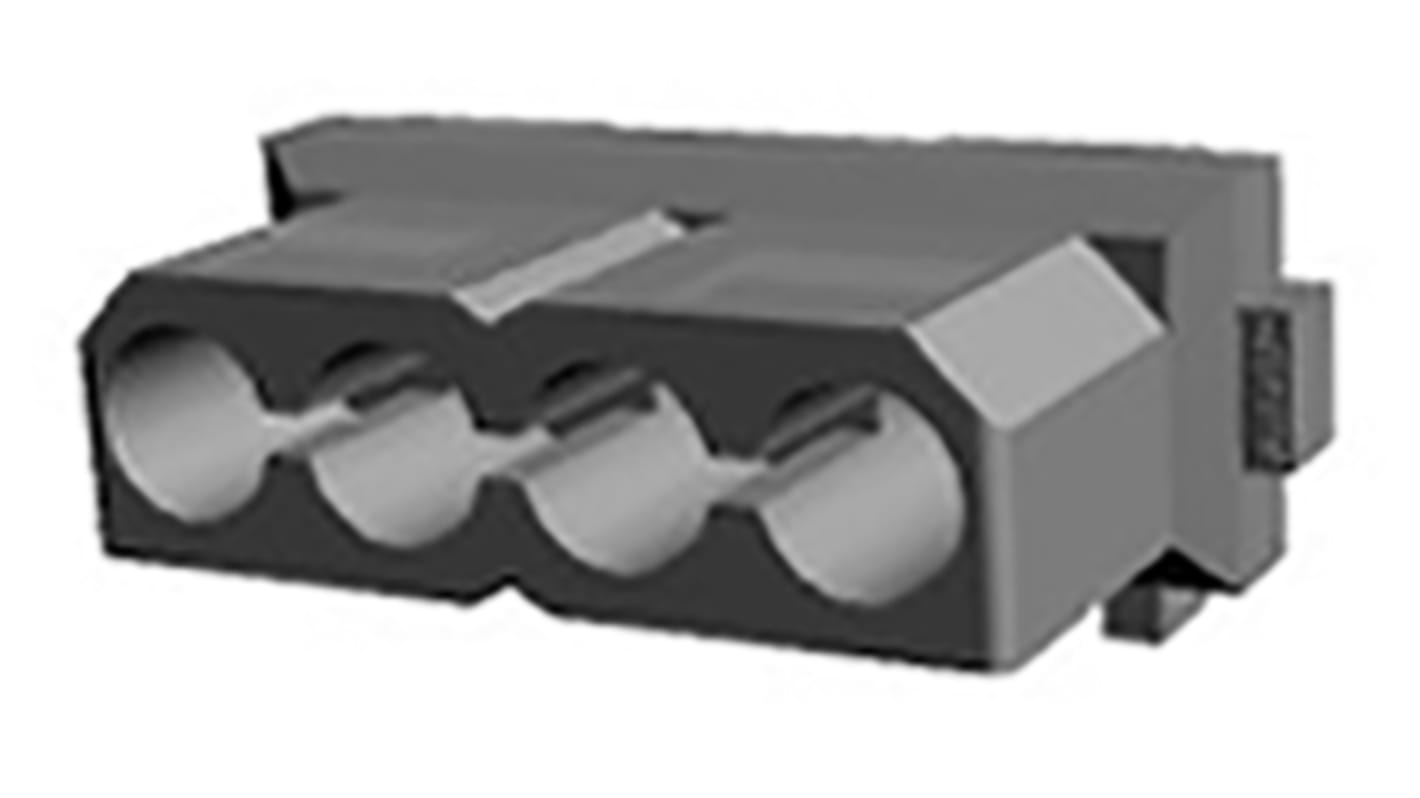

TE Connectivity Commercial MATE-N-LOK PCB Vertical Socket Headers
Commercial MATE-N-LOK PCB through hole mount socket style header connectors with a 5.08mm centreline for use in wire to board applications. These Commercial MATE-N-LOK PCB socket headers have black UL 94V-2 nylon GF housings which are fully polarized for accurate mating and feature detent locking for a secure connection ensuring the connector halves hold together under severe conditions of vibration and shock. In addition these Commercial MATE-N-LOK PCB headers offer built-in contact stabilization and self-aligning features. These Commercial MATE-N-LOK socket headers have pre-tin plated socket contacts and mate with Commercial MATE-N-LOK pin (cap) housings, see stock number 683-1901 typically.
TE Connectivity Commercial MATE-N-LOK Range
