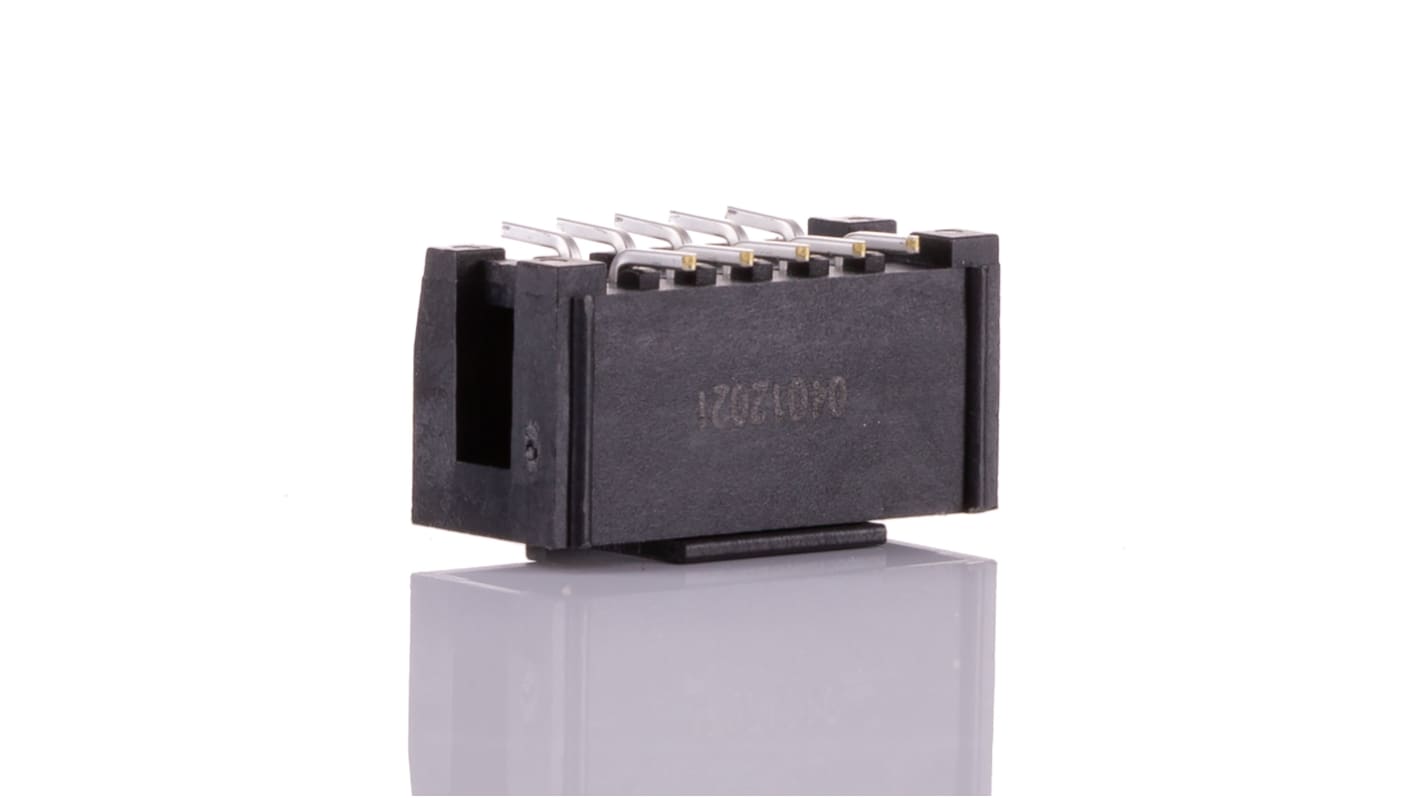

3M D2500 Series Straight Surface PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

RS Stock No.:: 827-1994
Mfr. Part No.:: D2510-6V0C-AR-WD
Brand:: 3M

3M D2500 Series Straight Surface PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

View all PCB Headers

Bulk discount available

Subtotal (1 unit)*

£2.25

(exc. VAT)

£2.70

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

473 unit(s) ready to ship
Plus 17 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£2.25
10 - 24	£2.02
25 - 49	£1.87
50 - 99	£1.74
100 +	£1.59

*price indicative

RS Stock No.:: 827-1994
Mfr. Part No.:: D2510-6V0C-AR-WD
Brand:: 3M

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	3M
	Series	D2500
	Product Type	PCB Header
	Pitch	2.54mm
	Current	1.75A
	Number of Contacts	10
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Mount Type	Surface
	Connector System	Wire-to-Board
	Contact Plating	Gold
	Contact Material	Brass
	Termination Type	Solder
	Minimum Operating Temperature	-55°C
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Voltage	1000 V

	Select all
	Brand 3M
	Series D2500
	Product Type PCB Header
	Pitch 2.54mm
	Current 1.75A
	Number of Contacts 10
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Mount Type Surface
	Connector System Wire-to-Board
	Contact Plating Gold
	Contact Material Brass
	Termination Type Solder
	Minimum Operating Temperature -55°C
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Voltage 1000 V

COO (Country of Origin):: US

3M PCB Header, 1.75A Current Rating, 2.54mm Pitch - D2500 Series - D2510-6V0C-AR-WD

Need a simple way to make multiple wired connections to a printed circuit board? Try this 2-row PCB header from 3M. It has a straight orientation and a standardised pitch of 2.54mm for straightforward insertion. Polarisation prevents mating errors to increase reliability and save installation time. As the pins are shrouded, they're protected against damage and easy to lock for a secure fit.

• Solder termination method is quick and simple

• UL 94V‑0 flammability rating indicates it's self-extinguishing inside 10 seconds to prevent the spread of fire

• Brass contacts for effective conductivity

• PCT housing for durability in tough settings

Applications

• Vehicle manufacturing

• Telecommunications

How do I mount this PCB header?

For straightforward installation, this header is surface mounted directly to the PCB. Surface mounting lets you place components close together on the board so your setup can be compact and lightweight.

Low Profile Boxed Headers

Brought to you by 3M, these 2500 Series Four-Wall box Headers are a polarized, low-profile design, ideal for when space-saving efficiency is a priority. The PCT material of the Four-Wall box Header is suitable for high temperature (260 °C), paste-in-hole, re-flow soldering operations. Ideal for most wire to board connection applications.

Features and Benefits:

• Headers can be retro fitted with latches

• Long latches are required if a socket strain relief clip is being utilised

• Mates with cable sockets stock number 121-0810 typical and board mounted sockets

Note

N25XX-6002 Manufacturers Part Numbers are used for standard a PCB thickness of 1.57 mm.
N25XX-6003 Manufacturers Part Numbers are used for a PCB thickness of 2.39 to 3.18 mm.
