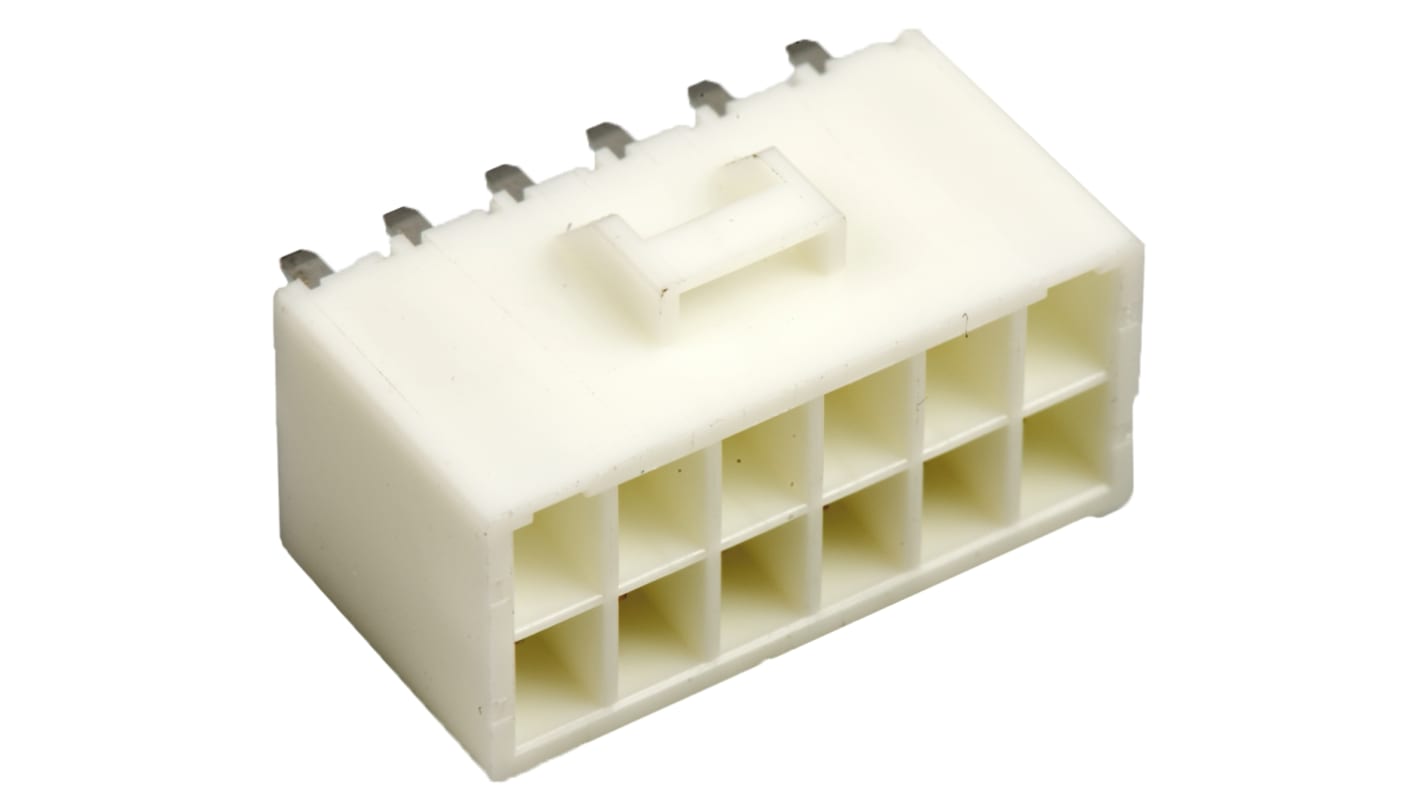

JST HL Series Straight Through Hole PCB Header, 12 Contact(s), 3.96mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 820-1080
- Mfr. Part No.:
- B12P-HL-1 LF SN
- Brand:
- JST
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 820-1080
- Mfr. Part No.:
- B12P-HL-1 LF SN
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | HL | |
| Pitch | 3.96mm | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Body Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire to Board | |
| Mounting Type | Through Hole | |
| Termination Method | Solder | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Current Rating | 7A | |
| Series Number | B12P | |
| Voltage Rating | 300 V ac/dc | |
Select all | ||
|---|---|---|
Brand JST | ||
Series HL | ||
Pitch 3.96mm | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Current Rating 7A | ||
Series Number B12P | ||
Voltage Rating 300 V ac/dc | ||
- COO (Country of Origin):
- JP
HL Series Connector Headers
The HL Series Connector Headers are Straight, Through Hole, Shrouded and UL94V-0 rated. The maximum Current rating is 7A AC, DC (dependant upon wire size and number of posts) for these HL Series Headers.
For mating Plug Housings see stock number 820-1040 typical.
For mating Plug Housings see stock number 820-1040 typical.
3.96mm JST HL Series
The HL Wire-to-Wire and Wire-to-Board Connector range from JST features: a contact with a low insertion force , housing lance, inner-housing lock, secondary retainers and a panel lock construction.
