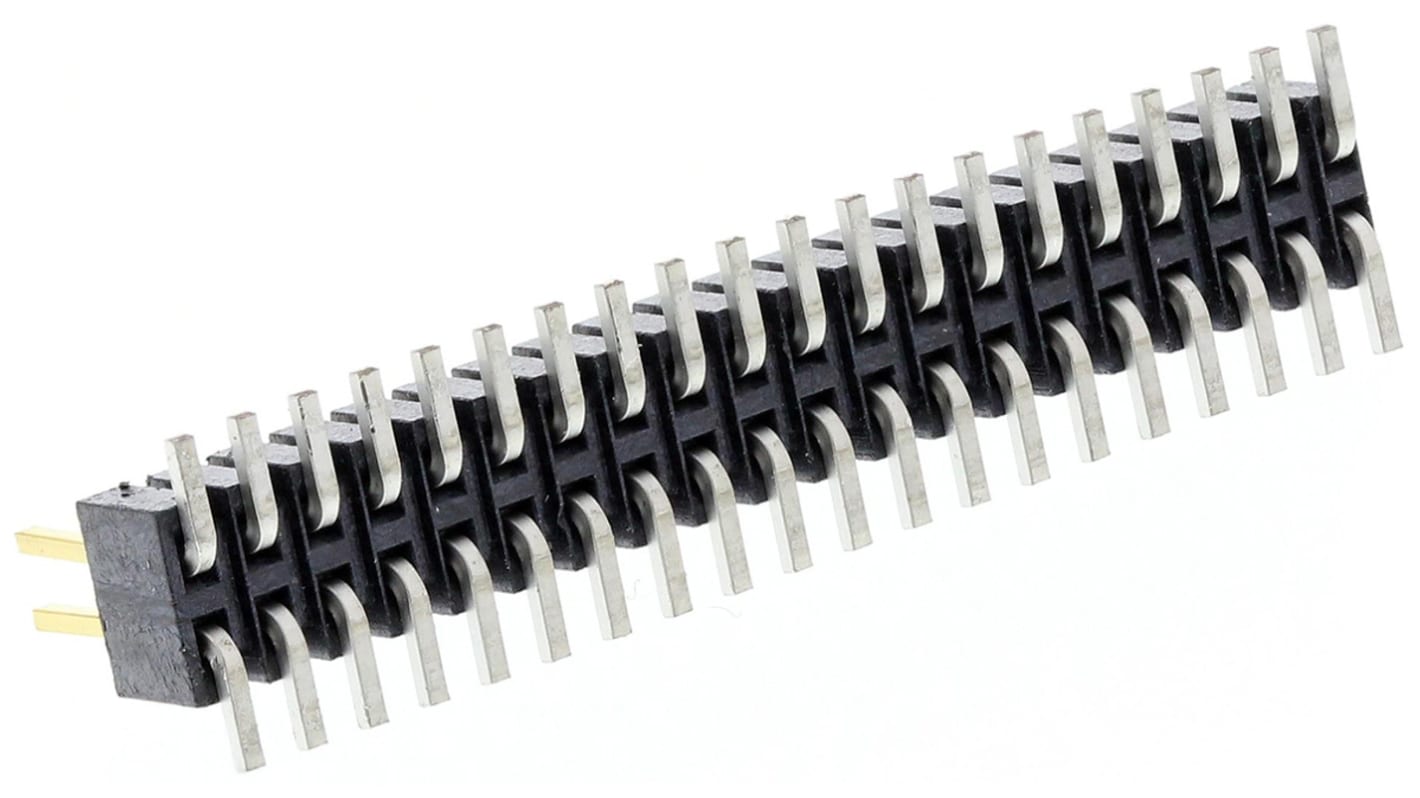

Samtec FTSH Series Straight Surface Mount Pin Header, 40 Contact(s), 1.27mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 767-6796
- Mfr. Part No.:
- FTSH-120-01-L-DV
- Brand:
- Samtec
6 In stock - FREE next working day delivery available
Added
Price Each
£4.88
(exc. VAT)
£5.86
(inc. VAT)
| Units | Per unit |
| 1 - 19 | £4.88 |
| 20 - 74 | £4.68 |
| 75 - 299 | £4.10 |
| 300 - 599 | £3.43 |
| 600 + | £3.32 |
- RS Stock No.:
- 767-6796
- Mfr. Part No.:
- FTSH-120-01-L-DV
- Brand:
- Samtec
Legislation and Compliance
Product Details
Surface Mount Micro Headers - FTSH Series
FTSH series SMT micro headers with a 1.27 mm pitch and gold plated contacts. This range of FTSH Series 1.27 mm pitch SMT micro terminal strips can be mated with appropriate socket strips or IDC cable assemblies.
Current rating 1.75 A at 80 °C
Operating temperature -55 to 125 °C
Operating temperature -55 to 125 °C
Note
Specifications
Attribute | Value |
|---|---|
| Series | FTSH |
| Pitch | 1.27mm |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Surface Mount |
| Connector System | Board to Board, Wire to Board |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 1.75A |
| Mating Pin Length | 3.05mm |
