Samtec EHF Series Straight Through Hole PCB Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 766-8811
- Mfr. Part No.:
- EHF-105-01-L-D
- Brand:
- Samtec
3 In stock - FREE next working day delivery available
Added
Price Each
£3.41
(exc. VAT)
£4.09
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £3.41 |
| 25 - 74 | £3.24 |
| 75 - 199 | £2.98 |
| 200 - 399 | £2.71 |
| 400 + | £2.62 |
- RS Stock No.:
- 766-8811
- Mfr. Part No.:
- EHF-105-01-L-D
- Brand:
- Samtec
Legislation and Compliance
Product Details

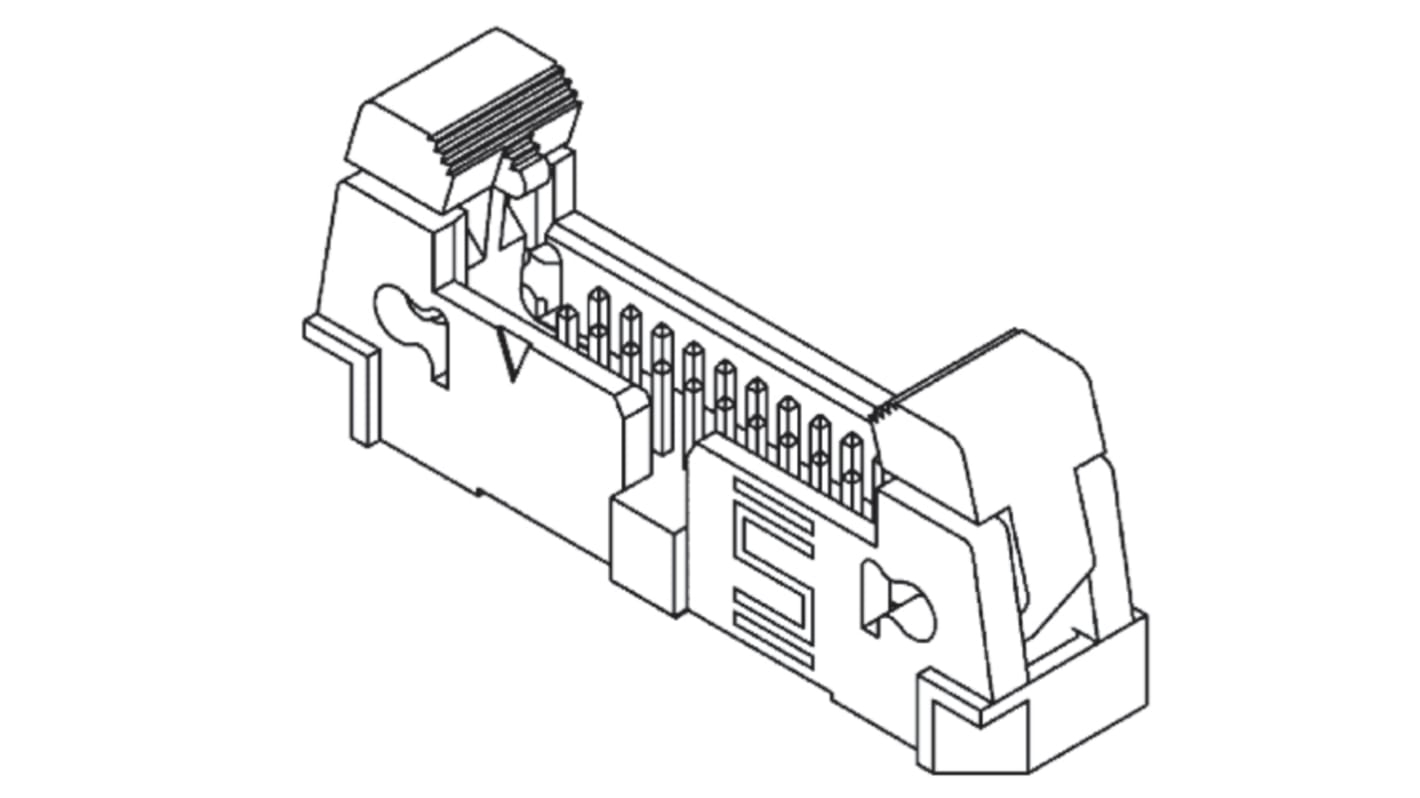

Samtec EHF Series 1.27mm Shrouded IDC PCB Ejector Headers
EHF series 1.27mm pitch shrouded double row PCB IDC headers with polarizing notch for accurate mating, ejector latches and gold plated contacts. These EHF series 1.27mm PCB ejector headers are available as right angle PCB through hole mounting or PCB SMT mount with up to 50 contacts. For mating connectors see FFSD (without strain relief) and FFTP series IDC socket cable assemblies.
Specifications
Attribute | Value |
|---|---|
| Series | EHF |
| Pitch | 1.27mm |
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 1.75A |
