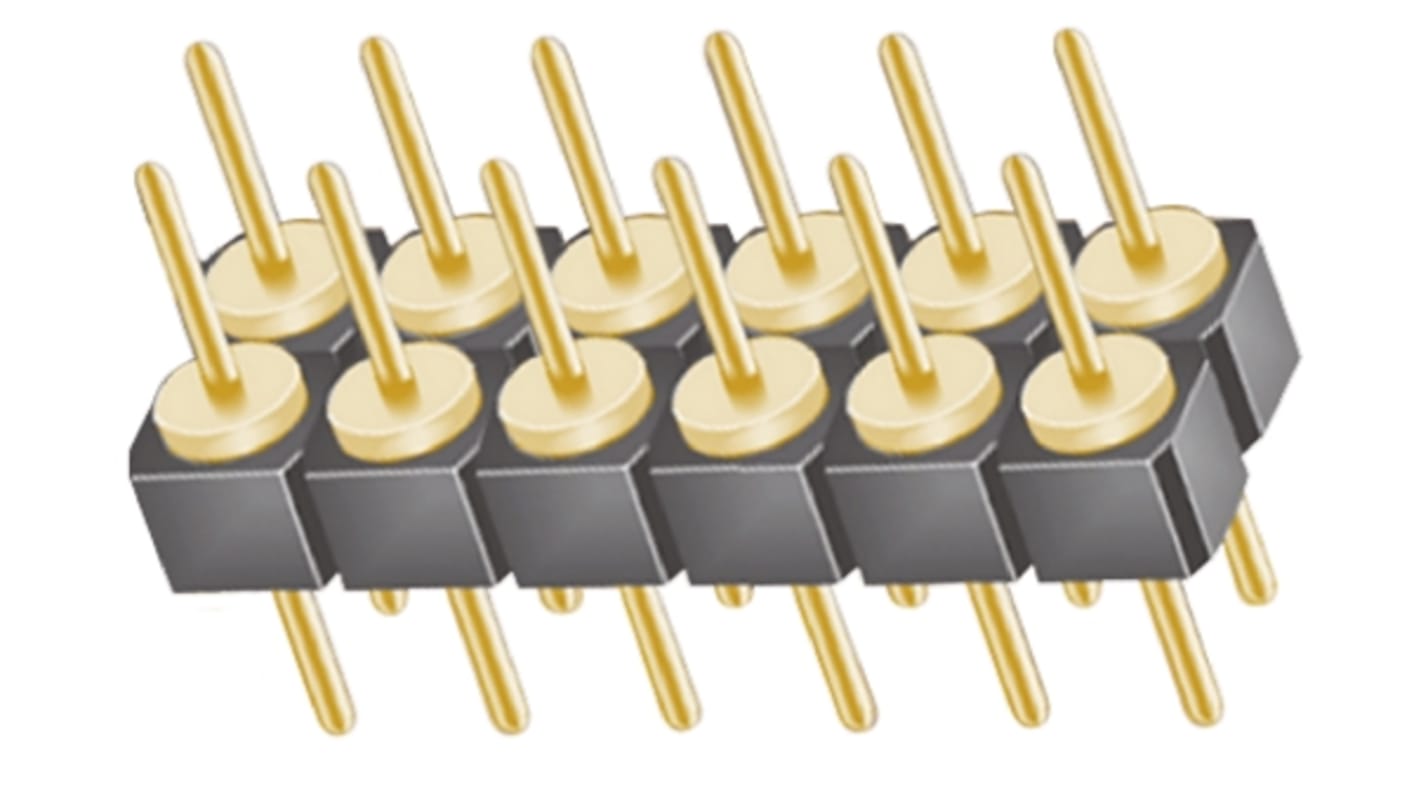

Samtec TD Series Straight Through Hole Pin Header, 12 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

RS Stock No.:: 765-5887
Mfr. Part No.:: TD-106-G-A
Brand:: Samtec

Samtec TD Series Straight Through Hole Pin Header, 12 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

2 In stock - FREE next working day delivery available

Price Each

£3.57

(exc. VAT)

£4.28

(inc. VAT)

Units	Per unit
1 - 9	£3.57
10 - 99	£3.43
100 - 499	£2.85
500 +	£2.46

RS Stock No.:: 765-5887
Mfr. Part No.:: TD-106-G-A
Brand:: Samtec

Technical Reference

Legislation and Compliance

Product Details

Precision Screw Machined 2.54mm Terminal Strips - TD Series

TD series board to board through hole double row precision screw machined terminal header strips with a 2.54mm pitch and a 3.96mm tail length. The body of these TD series board-to-board PCB precision machined header terminals is made from black glass filled polyester and the contacts are made from phosphor bronze with a 0.51μm gold plating. The temperature range at which these TD series machined terminal strips can be used is -55° to +125°C.

Note

These TD series PCB board-to-board screw machined header strips mate with the following:
SDL series low profile machined socket strips - see stock number 767-8887 typically.

2.54mm Board to Board and Wire to Board - Samtec

Specifications

Attribute	Value
Series	TD
Pitch	2.54mm
Number of Contacts	12
Number of Rows	2
Body Orientation	Straight
Shrouded/Unshrouded	Unshrouded
Connector System	Board to Board
Mounting Type	Through Hole
Termination Method	Solder
Contact Plating	Gold
Contact Material	Phosphor Bronze
Current Rating	1.0A
Tail Pin Length	3.96mm
Mating Pin Length	4.22mm
