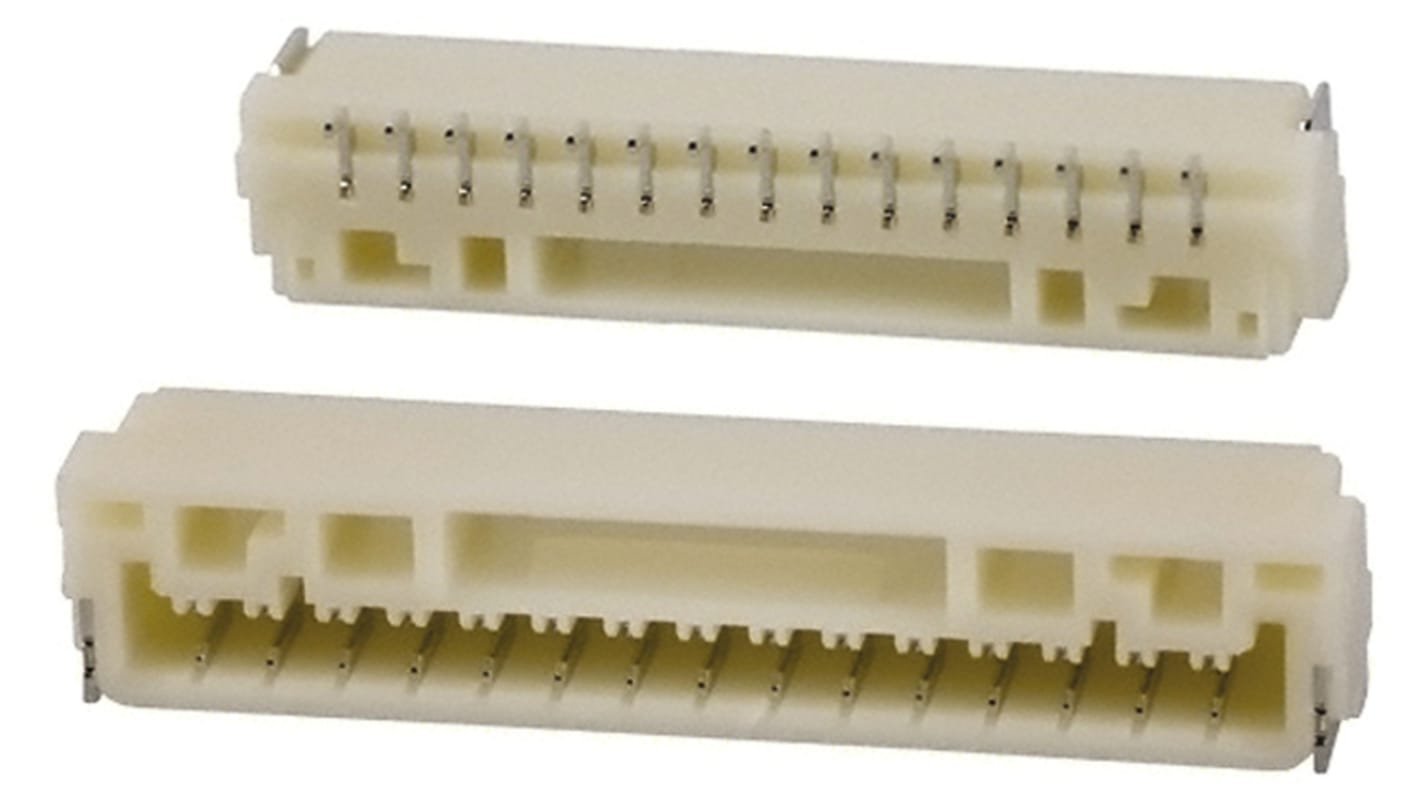

JST GH Series Right Angle Surface Mount PCB Header, 15 Contact(s), 1.25mm Pitch, Shrouded
- RS Stock No.:
- 752-1810
- Distrelec Article No.:
- 304-24-044
- Mfr. Part No.:
- SM15B-GHS-TB(LF)(SN)
- Brand:
- JST
Save 45% when you buy 5000 units
Subtotal (1 pack of 5 units)*
£2.90
(exc. VAT)
£3.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 315 unit(s) ready to ship
- Plus 40 unit(s) ready to ship from another location
- Plus 3,065 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £0.58 | £2.90 |
| 125 - 495 | £0.354 | £1.77 |
| 500 - 2495 | £0.344 | £1.72 |
| 2500 - 4995 | £0.328 | £1.64 |
| 5000 + | £0.316 | £1.58 |
*price indicative
- RS Stock No.:
- 752-1810
- Distrelec Article No.:
- 304-24-044
- Mfr. Part No.:
- SM15B-GHS-TB(LF)(SN)
- Brand:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | GH | |
| Pitch | 1.25mm | |
| Number of Contacts | 15 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mounting Type | Surface Mount | |
| Connector System | Wire to Board | |
| Termination Method | Solder | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Current Rating | 1.0A | |
| Voltage Rating | 50.0 V | |
Select all | ||
|---|---|---|
Brand JST | ||
Series GH | ||
Pitch 1.25mm | ||
Number of Contacts 15 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Current Rating 1.0A | ||
Voltage Rating 50.0 V | ||
