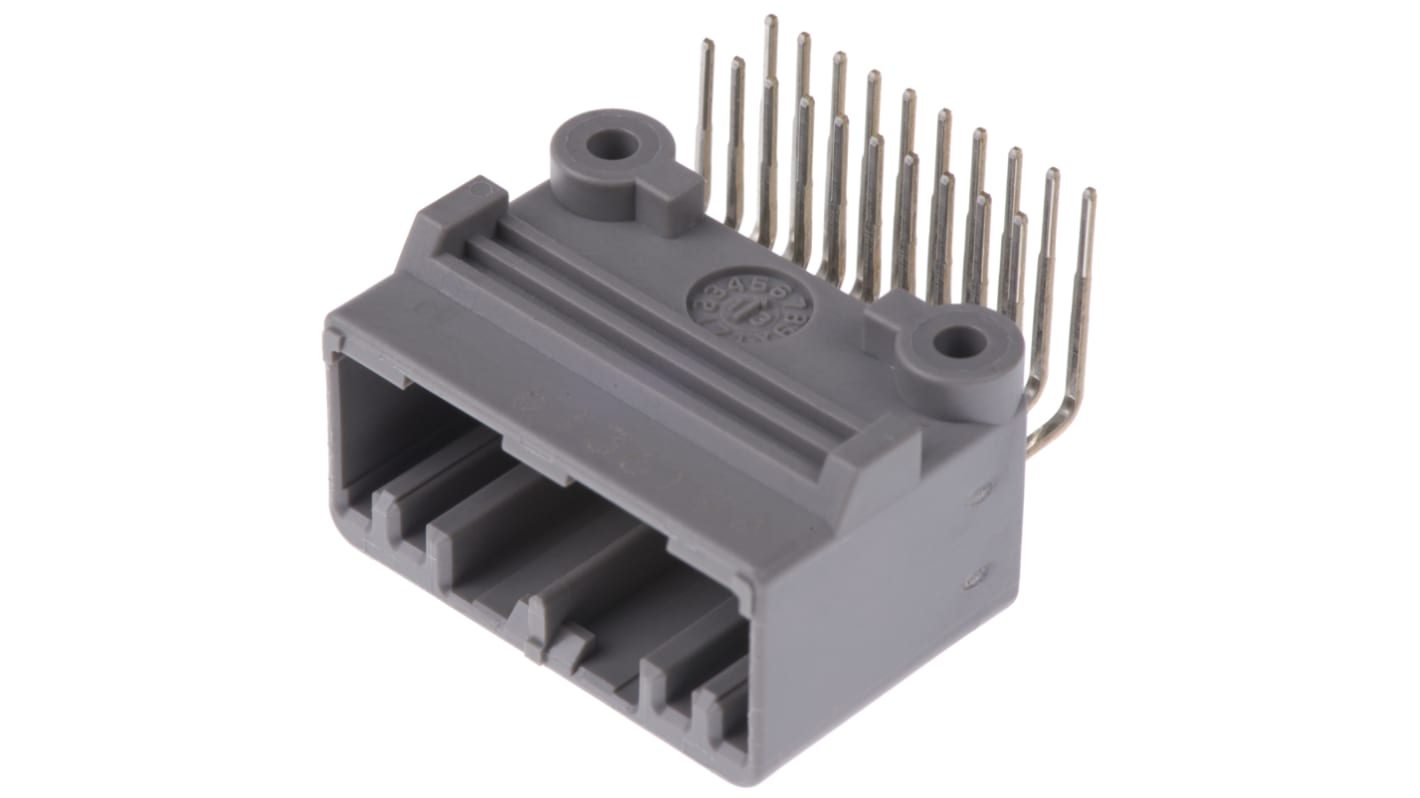

JAE MX34 Series Right Angle Through Hole PCB Header, 20 Contact(s), 2.2mm Pitch, 2 Row(s), Shrouded

View all PCB Headers
Save 26% when you buy 75 units

Subtotal (1 unit)*

£1.14

(exc. VAT)

£1.37

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 289 unit(s) ready to ship
  • Plus 64 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 19£1.14
20 - 74£0.98
75 +£0.84

*price indicative

Packaging Options:
RS Stock No.:
690-8913
Mfr. Part No.:
MX34020NF1
Brand:
JAE
Find similar products by selecting one or more attributes.
Select all

Brand

JAE

Series

MX34

Pitch

2.2mm

Number of Contacts

20

Number of Rows

2

Body Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mounting Type

Through Hole

Connector System

Wire to Board

Termination Method

Solder

Contact Material

Brass

Contact Plating

Tin

Current Rating

3.0A

MX34 90° Header 2 Row


For MX34 socket housings see typical stock numbers: 690-9852


JAE MX34 Series Automotive Connectors


The MX34 series connectors are compact, non-waterproof board-to-cable connectors, and are developed for automotive use.,The up to 40 poles reduces mating and unmating force to 80N or less and improves workability. Furthermore, automotive connector requirements such as the preset type of double locking mechanism and box type of pin header are satisfied


Socket contact with box-type pin header provides a durable combination to external forces
Contacts are highly resistant to twisting and equipped with a proven double leaf spring
The preset-type retainer needs to be completely inserted into the housing for the connector to be engaged, therefore any incomplete contact insertion is detected
The Lock spring is equipped with a bridge which protects the contact from external load
