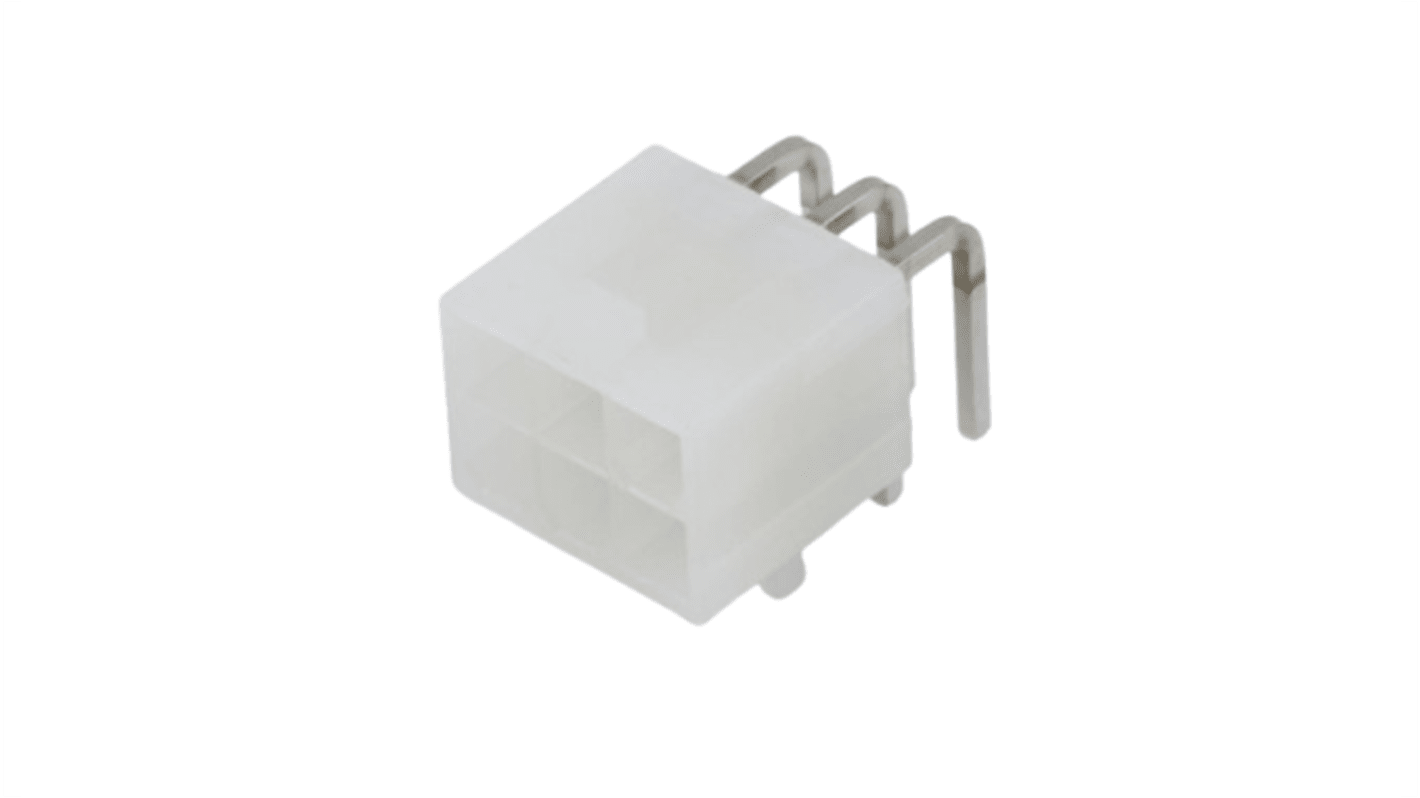

Molex 39301 Series Right Angle Through Hole PCB Header, 6 Contact(s), 4.2mm Pitch, 2 Row(s), Shrouded

Mini-Fit Junior 4.2 mm pitch PCB headers which form part of the Mini-Fit Junior power connector interconnection system. Mini-Fit Junior power connectors are able to handle up to 9A per circuit making them ideal for use in high current applications. These Mini-Fit Junior PCB headers have fully isolated terminals for protection against, debris, arcing and damage caused by mishandling. The connector housings are also scoop-proof which prevents damage to the pin terminals when mated at a severe angle. The housings of these PCB headers incorporate polarization and keying features to prevent misalignment and mismating with the receptacle. A positive locking mechanism provides a secure connection with the mating receptacle and prevents accidental unmating caused by excessive shock or vibration. An audible click indicates that the connector is fully mated. For a secure connection to the PCB versions of these Mini-Fit Junior PCB headers are available with snap-in plastic PCB peg locks. Versions are also available with PCB mounting flanges. These Mini-Fit Junior 4.2 mm PCB headers are available with a UL94V-0 or UL94V-2 housing material and with a range of contact configurations and contact platings

• Can handle Up to 9A current per circuit
• Fully isolated terminals
• Scoop-proof housings to prevent contact damage
• Polarization and keying to prevent mismating
• Positive locking mechanism for secure mating connection
• Audible click for mating confirmation
• Versions with PCB retention pegs and mounting flanges

Mini-Fit Junior power connectors are ideal for use in high current, high density wire to wire and wire to board applications that require design flexibility. Applications include consumer white goods, office equipment, industrial automation equipment, industrial networks, rack-mount servers, routers and switches.

This PCB header is part of the Mini-Fit Jr.™ Power Connectors range, designed for high-performance wire-to-board applications. It features a right-angle orientation with dual rows, accommodating six circuits. Constructed with shrouded contacts, this connector supports a 4.2mm pitch, making it suitable for various electronic configurations.

• Shrouded design reduces the risk of misalignment during mating
• Right-angle configuration facilitates space-saving layout in designs
• Durable brass contacts ensure longevity and reliable connections
• Capable of handling up to 13A current per circuit for robust performance
• Gold plating on contacts enhances conductivity and corrosion resistance
• Solder termination method simplifies integration into PCB environments

• Used for connecting power supplies in automation systems
• Ideal for in electrical and mechanical equipment
• Used with wire-to-board connections in automotive electronics
• Applicable in consumer electronics requiring compact connector solutions

It operates effectively within a temperature range of -40°C to +105°C, making it suitable for diverse applications.

The connector is rated for a maximum voltage of 600V, ensuring adequate power handling in various electronic circuits.

It is designed to work optimally with 16 AWG wire when mated with the appropriate receptacle for secure connections.

This header is rated for up to 30 mating cycles, allowing for multiple connections and disconnections during its operational life.

Molex Minifit Jr.™ Series
