Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 6 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 189-1360
- Mfr. Part No.:
- 39-30-1060
- Brand:
- Molex

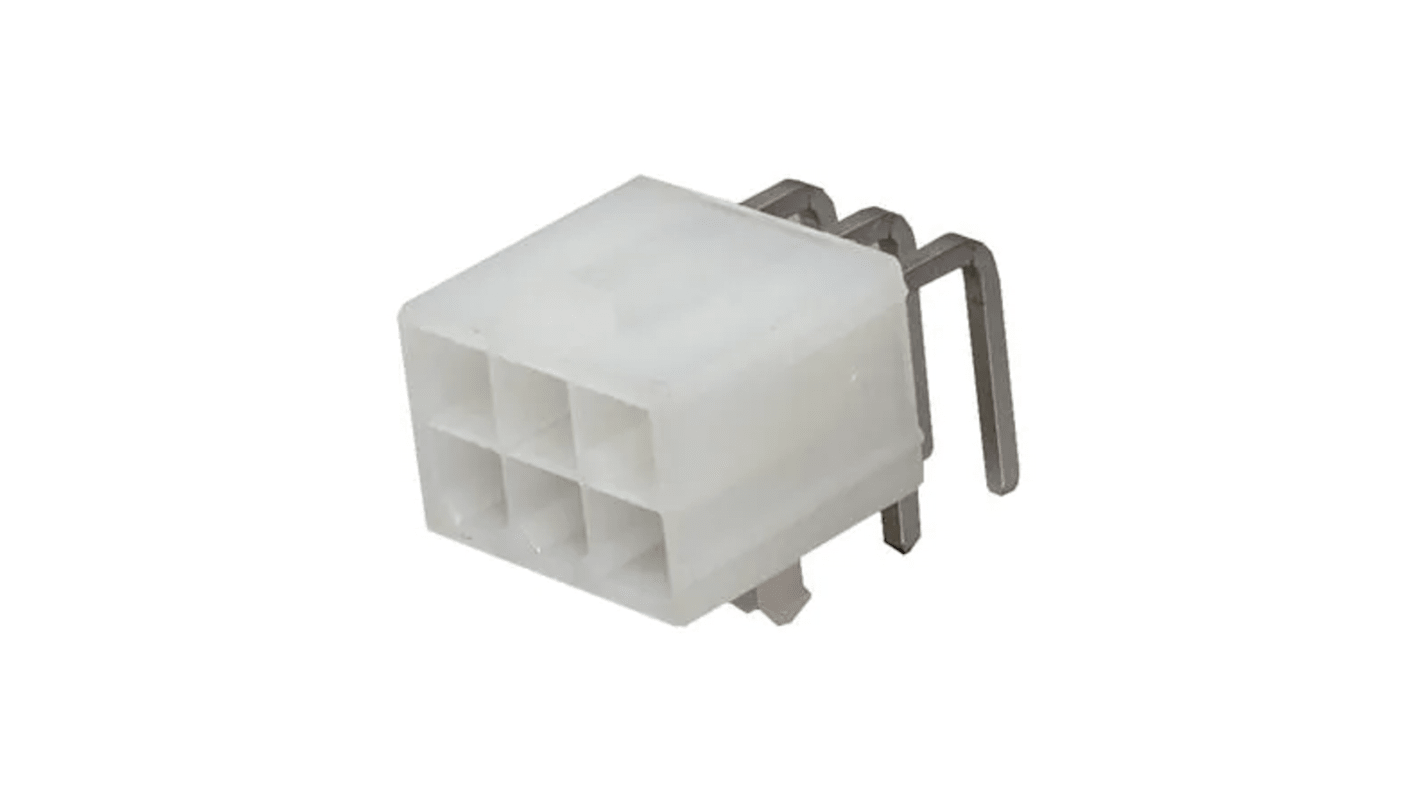

Image representative of range
Bulk discount available
Subtotal (1 bag of 300 units)*
£187.50
(exc. VAT)
£225.00
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 3,300 unit(s), ready to ship
Units | Per unit | Per Bag* |
|---|---|---|
| 300 - 1200 | £0.625 | £187.50 |
| 1500 - 2700 | £0.579 | £173.70 |
| 3000 + | £0.539 | £161.70 |
*price indicative
- RS Stock No.:
- 189-1360
- Mfr. Part No.:
- 39-30-1060
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | Mini-Fit Jr | |
| Pitch | 4.2mm | |
| Current | 13A | |
| Housing Material | Nylon | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Row Pitch | 4.2mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series Mini-Fit Jr | ||
Pitch 4.2mm | ||
Current 13A | ||
Housing Material Nylon | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Row Pitch 4.2mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 600 V | ||
- COO (Country of Origin):
- MX
Molex Right-Angle PCB Header, 600V Voltage Rating, 8A Current Rating - Mini-Fit Jr Series - 39-30-1060
This robust header from Molex provides a mating channel so you can link connectors to your printed circuit boards (PCBs). Thanks to a through-hole mounting method, it's simple to set up and achieves a firm hold on the board. This makes it a suitable choice for systems with high mechanical stress. The unit features conductive brass contacts for a reliable electrical connection, while tin plating makes them corrosion-resistant. Right-angle orientation means it projects out of the connection point, making it practical for use in tight spots. Headers like this one are typically used in the medical and consumer electronics industries.
• Nylon body material for impact resistance and insulation from electric shocks
• Light weight of 2.24g for easy handling
• Broad operating temperature range of -40° to +105°C for use in demanding conditions
• Voltage rating of 600V and current rating of 8A suitable for high-power applications
Applications
• Commercial and office environments
• Household appliances
• Medical facilities
Is this header flame-retardant?
Yes. This PCB header stops burning within 30 seconds when exposed to flames. This can help reduce the damage caused to your system by fire.
