MPN

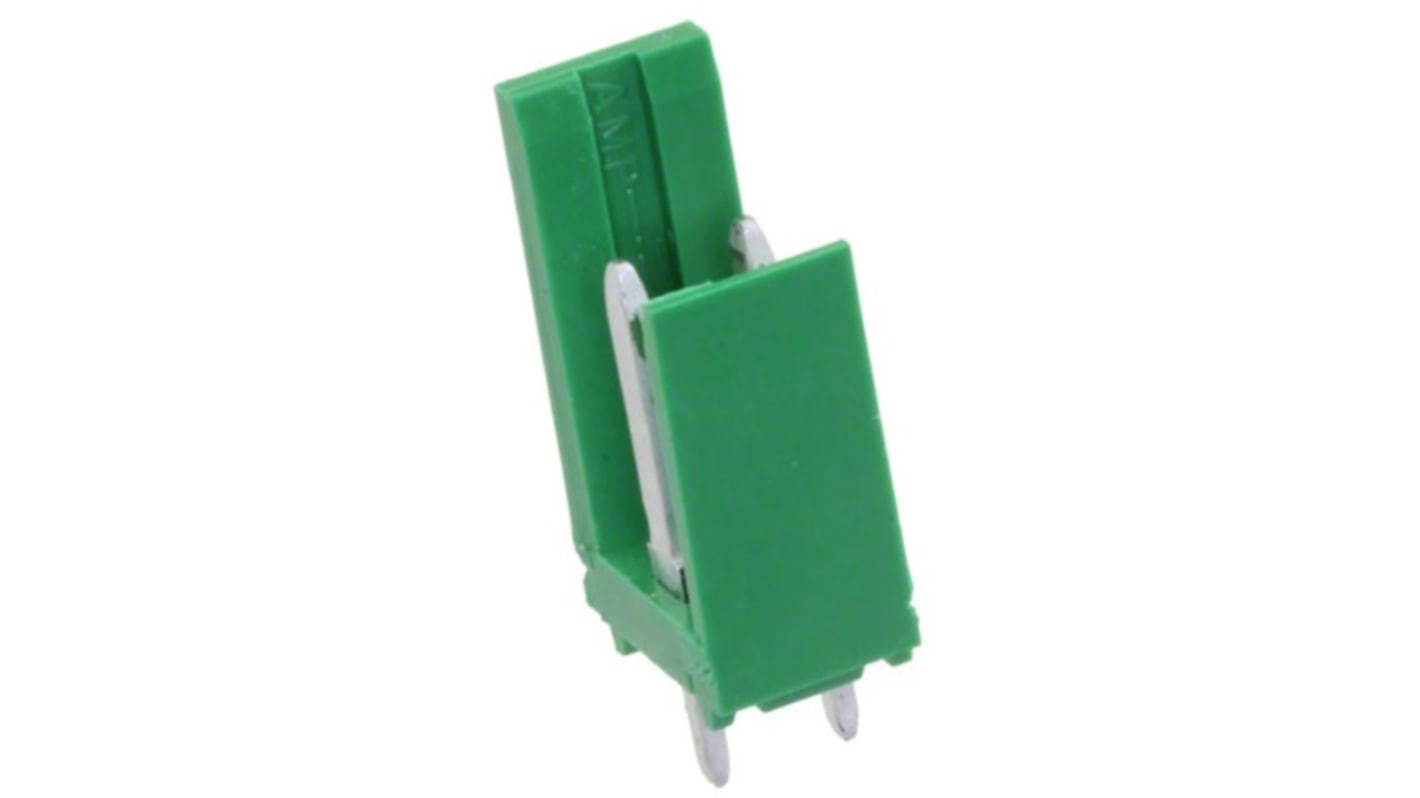

TE Connectivity AMPMODU MOD I Series Straight Through Hole PCB Header, 2 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded

RS Stock No.:: 509-1714
Distrelec Article No.:: 304-53-919
Mfr. Part No.:: 280609-1
Brand:: TE Connectivity

TE Connectivity AMPMODU MOD I Series Straight Through Hole PCB Header, 2 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded

Bulk discount available

Subtotal (1 pack of 10 units)*

£2.16

(exc. VAT)

£2.59

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2,160 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location
Plus 490 unit(s) shipping from 03 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
10 - 40	£0.216	£2.16
50 - 90	£0.185	£1.85
100 - 240	£0.163	£1.63
250 - 990	£0.141	£1.41
1000 +	£0.13	£1.30

*price indicative

RS Stock No.:: 509-1714
Distrelec Article No.:: 304-53-919
Mfr. Part No.:: 280609-1
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Product Type	PCB Header
	Series	AMPMODU MOD I
	Current	3A
	Pitch	3.96mm
	Number of Contacts	2
	Housing Material	Glass Filled Polycarbonate
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Mount Type	Through Hole
	Connector System	Board-to-Board, Wire-to-Board
	Contact Plating	Tin
	Contact Material	Phosphor Bronze
	Termination Type	Solder
	Minimum Operating Temperature	-65°C
	Contact Gender	Male
	Maximum Operating Temperature	105°C
	Tail Pin Length	3.3mm
	Standards/Approvals	No
	Voltage	750V

	Select all
	Brand TE Connectivity
	Product Type PCB Header
	Series AMPMODU MOD I
	Current 3A
	Pitch 3.96mm
	Number of Contacts 2
	Housing Material Glass Filled Polycarbonate
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Mount Type Through Hole
	Connector System Board-to-Board, Wire-to-Board
	Contact Plating Tin
	Contact Material Phosphor Bronze
	Termination Type Solder
	Minimum Operating Temperature -65°C
	Contact Gender Male
	Maximum Operating Temperature 105°C
	Tail Pin Length 3.3mm
	Standards/Approvals No
	Voltage 750V

280609 Customer Drawing

TE Connectivity AMPMODU Mod I 3.96 mm Shrouded PCB Headers

AMPMODU Mod I shrouded PCB headers with a 3.96mm centreline and shrouding on 2 sides for pin protection. The housings of these AMPMODU Mod I shrouded headers are MADE from UL 94V-1 rated flame retardant thermoplastic and feature polarization to prevent mismating. These 3.96mm AMPMODU Mod I shrouded headers are available with a vertical or right angle mounting orientation and in single or double row configurations

Features and Benefits

• Shrouding for pin protection

• Polarization to prevent mismating

• Rugged design

• Flame retardant UL 94V-1 thermoplastic housings

Applications

These AMPMODU Mod I shrouded PCB headers are suitable for use in a wide range of applications. Applications include power supplies and industrial control and switchgear

TE Connectivity AMPMODU Mod I 3.96mm Interconnect System

The AMPMODU Mod I 3.96 mm interconnect system is a rugged large-scale connector system with a current rating of 5 A maximum per contact and 0.79 x 1.57 mm posts. This connector system is suitable for board to board and wire to board applications and consists of PCB headers and cable mount receptacles.
