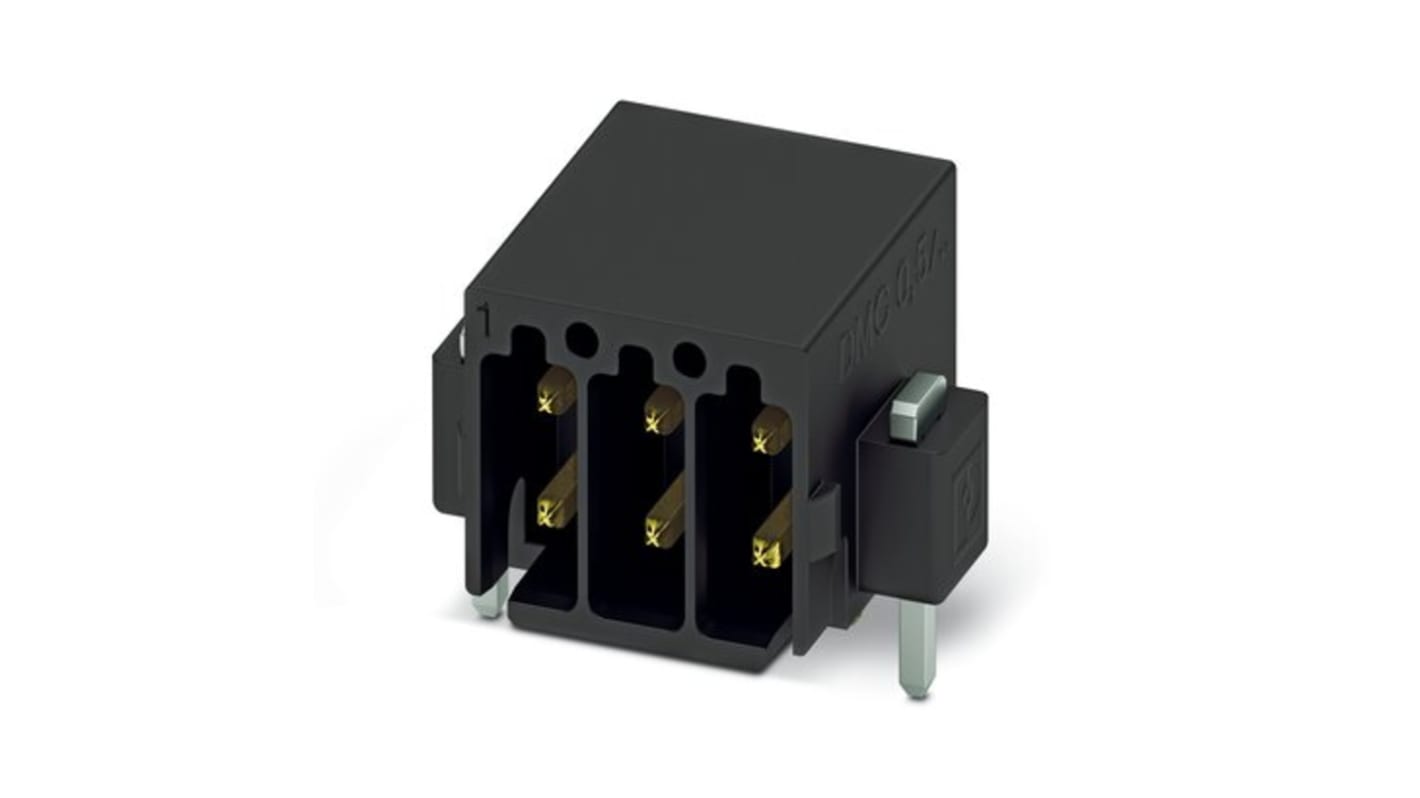

Phoenix Contact Straight Solder PCB Header, 6 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 box of 5 units)*

£11.12

(exc. VAT)

£13.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 34 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£11.12£2.224

*price indicative

RS Stock No.:
286-0947
Mfr. Part No.:
1844730
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Current

6A

Pitch

2.54mm

Number of Contacts

6

Housing Material

Liquid Crystal Polymer

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Solder

Connector System

COMBICON DFMC 0.5

Contact Material

Copper Alloy

Contact Plating

Gold, Nickel

Minimum Operating Temperature

-40°C

Row Pitch

2.54mm

Termination Type

Solder Mount

Tail Pin Length

2mm

Maximum Operating Temperature

100°C

Contact Gender

Male

Mating Pin Length

2mm

Standards/Approvals

No

Voltage

160 V

COO (Country of Origin):
PL
The Phoenix Contact PCB Header allows conductor connection on several levels to enables higher contact density.

Transfer quality remains stable over the long term

RoHS compliant
