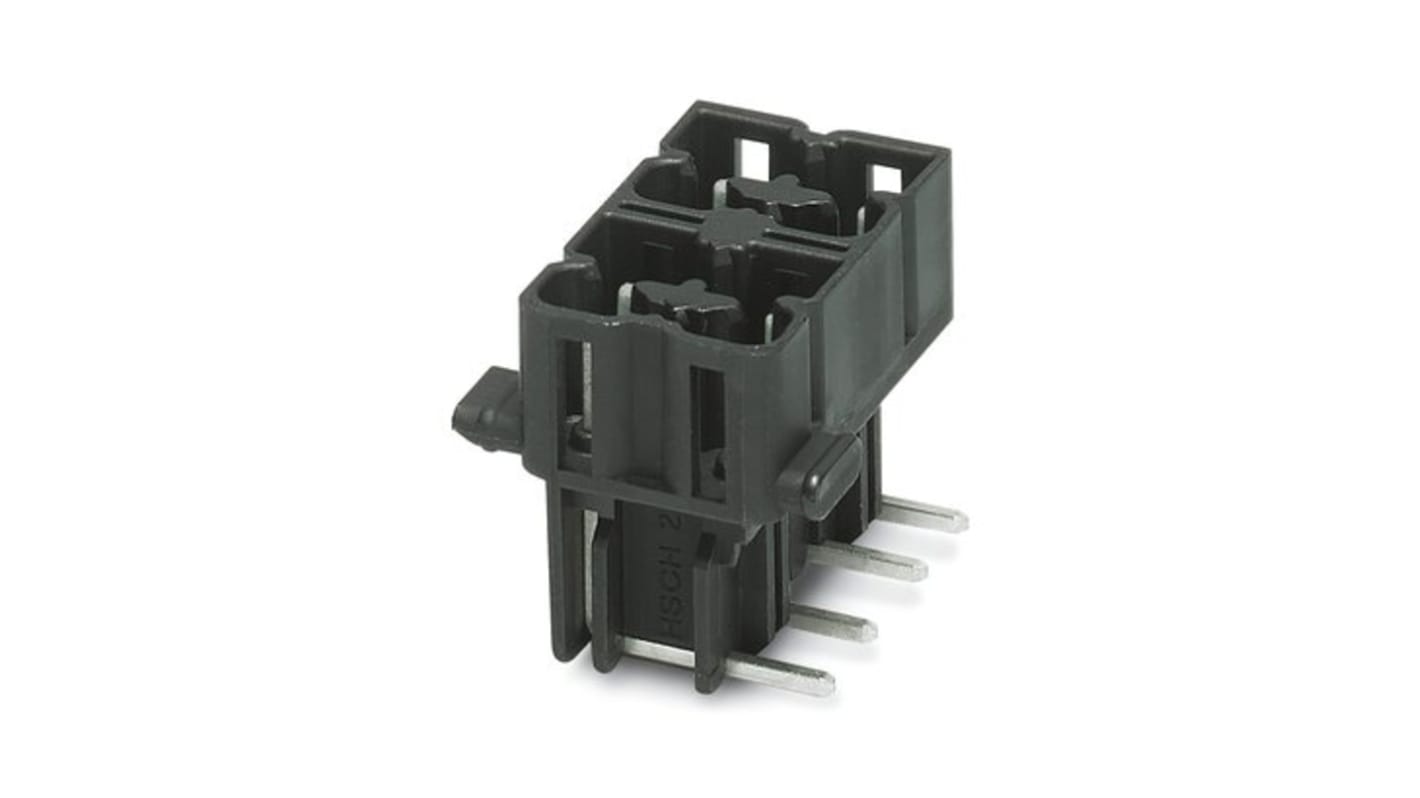

Phoenix Contact HSCH Series Wave Soldering Mount PCB Header, 4 Contact(s), 5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 284-1555
- Mfr. Part No.:
- 2201790
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£174.75
(exc. VAT)
£209.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £3.495 | £174.75 |
*price indicative
- RS Stock No.:
- 284-1555
- Mfr. Part No.:
- 2201790
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | HSCH | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 5mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | HSC 2 | |
| Mount Type | Wave Soldering Mount | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 5mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Mating Pin Length | 3.8mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series HSCH | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 5mm | ||
Housing Material Polyamide | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System HSC 2 | ||
Mount Type Wave Soldering Mount | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 5mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Mating Pin Length 3.8mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB header is a partially equipped version for application specific position layouts. Additionally, the PCB headers are conveniently packaged in cardboard.
RoHS compliant
