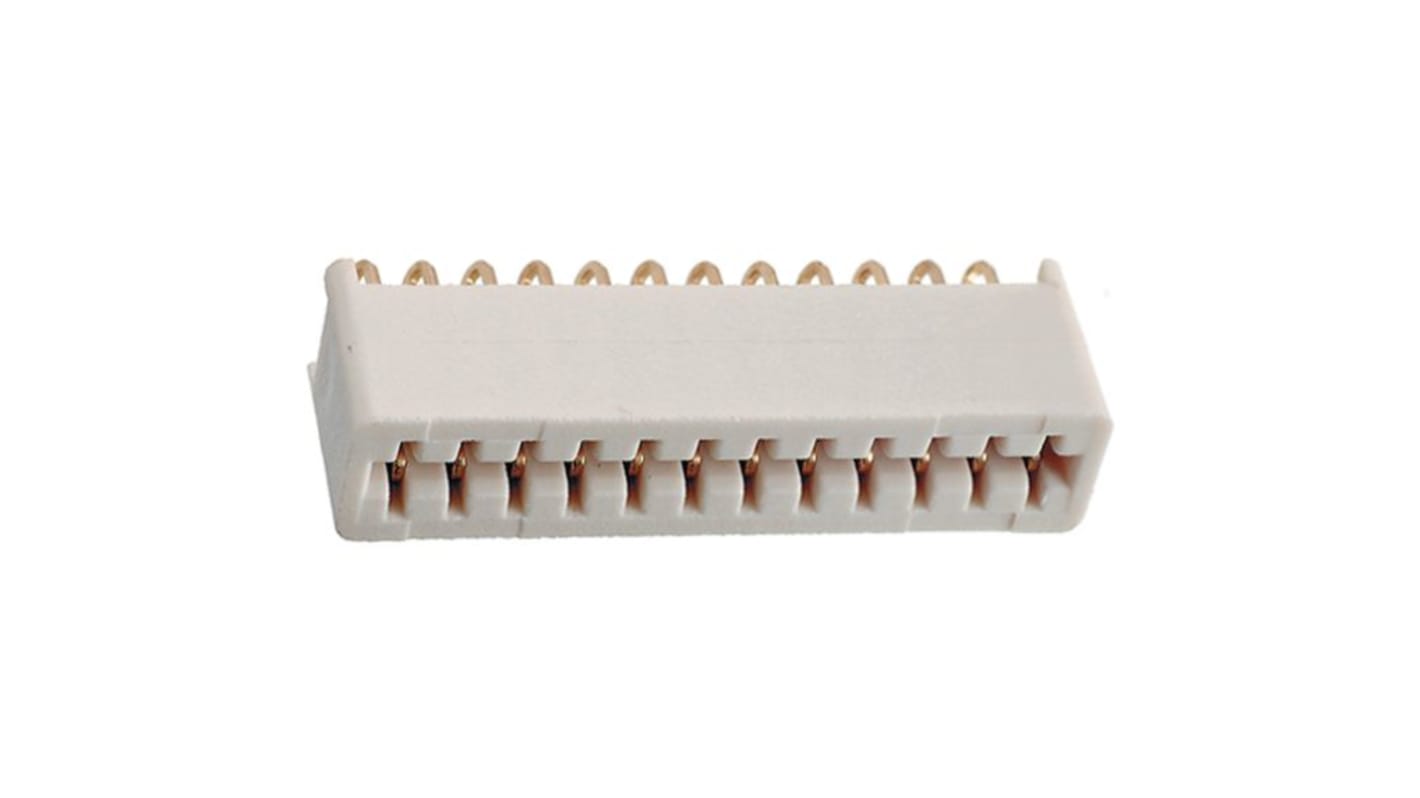

Crameda Intersys CU 400 Series Straight, Straight PCB Header, 12 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
- RS Stock No.:
- 283-6877
- Distrelec Article No.:
- 135-81-060
- Mfr. Part No.:
- CU 400 354
- Brand:
- Crameda Intersys
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 283-6877
- Distrelec Article No.:
- 135-81-060
- Mfr. Part No.:
- CU 400 354
- Brand:
- Crameda Intersys
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crameda Intersys | |
| Product Type | PCB Header | |
| Series | CU 400 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Number of Contacts | 12 | |
| Number of Rows | 1 | |
| Orientation | Straight, Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Termination Type | Solder Pin | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | No | |
| Voltage | 42V | |
| Select all | ||
|---|---|---|
Brand Crameda Intersys | ||
Product Type PCB Header | ||
Series CU 400 | ||
Current 1A | ||
Pitch 2.54mm | ||
Number of Contacts 12 | ||
Number of Rows 1 | ||
Orientation Straight, Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Termination Type Solder Pin | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals No | ||
Voltage 42V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Plug is power strip which has various solderable connection available to the user Disposal. The wired power strips are then connected attached to the back of the switch or display. These power strips are for both the preselection switches Multiswitch series H, M, P, R, S and U as well as for the 7-segment LED display modules Codi count series 200, 300, 500 and 800 usable.
Insertion force 17 N
Extraction force 12 N
