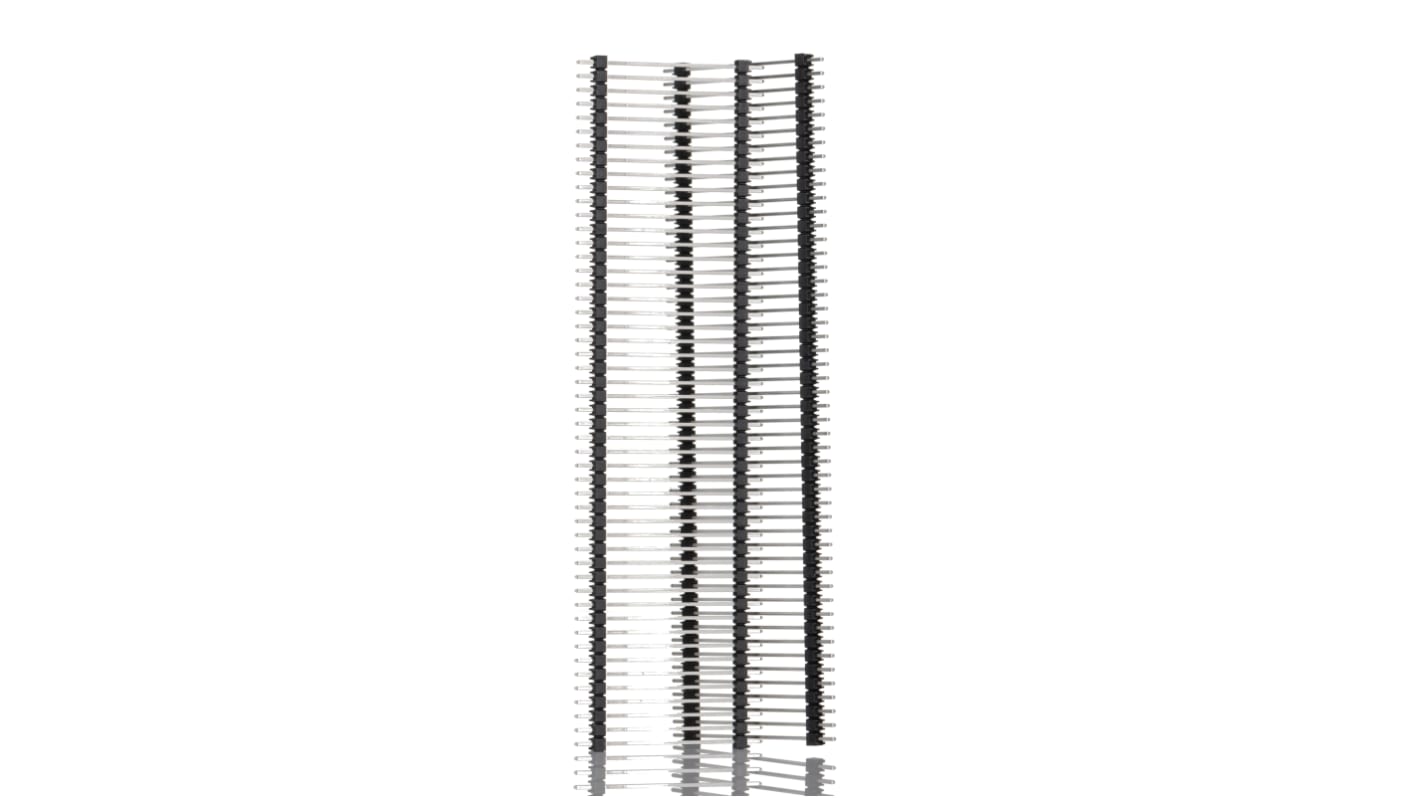

Samtec DW Series Straight Through Hole Pin Header, 50 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

RS Stock No.:: 277-9736
Mfr. Part No.:: DW-50-14-T-S-1200
Brand:: Samtec

Samtec DW Series Straight Through Hole Pin Header, 50 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

Bulk discount available

Subtotal (1 pack of 4 units)*

£14.48

(exc. VAT)

£17.36

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 12 unit(s) shipping from 29 December 2025
Plus 40 unit(s) shipping from 05 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
4 - 76	£3.62	£14.48
80 - 296	£3.008	£12.03
300 - 1196	£2.54	£10.16
1200 - 2396	£2.35	£9.40
2400 +	£2.168	£8.67

*price indicative

RS Stock No.:: 277-9736
Mfr. Part No.:: DW-50-14-T-S-1200
Brand:: Samtec

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Series	DW
	Product Type	Pin Header
	Current	3A
	Pitch	2.54mm
	Number of Contacts	50
	Housing Material	Black Glass Filled Polyester
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Unshrouded
	Connector System	Board-to-Board
	Mount Type	Through Hole
	Contact Material	Phosphor Bronze
	Contact Plating	Tin
	Minimum Operating Temperature	-55°C
	Row Pitch	2.54mm
	Termination Type	Solder
	Tail Pin Length	2.79mm
	Maximum Operating Temperature	125°C
	Contact Gender	Male
	Mating Pin Length	3.05mm
	Standards/Approvals	No

	Select all
	Brand Samtec
	Series DW
	Product Type Pin Header
	Current 3A
	Pitch 2.54mm
	Number of Contacts 50
	Housing Material Black Glass Filled Polyester
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Unshrouded
	Connector System Board-to-Board
	Mount Type Through Hole
	Contact Material Phosphor Bronze
	Contact Plating Tin
	Minimum Operating Temperature -55°C
	Row Pitch 2.54mm
	Termination Type Solder
	Tail Pin Length 2.79mm
	Maximum Operating Temperature 125°C
	Contact Gender Male
	Mating Pin Length 3.05mm
	Standards/Approvals No

Samtec Pin Header, Phosphor Bronze Terminal Material, Insulated - FLEXSTACK DW Series - DW-50-14-T-S-1200

Give your board-stacking applications a lift with this pin header from Samtec. You can move its insulated body up and down its terminal pins in increments of 0.13mm to choose the ideal height for your setup. This lets you assemble circuit boards on top of each other to save on space. The header's 50 pins make it a cinch to create quick multiwire board-to-board connections. As this unit's contacts are made of phosphor bronze, they're highly conductive, so you can rely on it to keep electricity flowing through your system.

Features & Benefits

• Through-hole termination method for simple mounting on a PCB

• Suitable for use in harsh conditions, thanks to a wide operating temperature range between -55°C and +105°C

• Black glass-filled polyester insulation minimises the risk of electric shocks

Applications

• Telecommunication centres

• Industrial automation

• Medical and pharmaceutical industries

• Military sector

Are the pins on this header plated?

Yes, the component has tin-plated pins to cut down on the risk of corrosion, making it a safe bet for use in humid environments.
