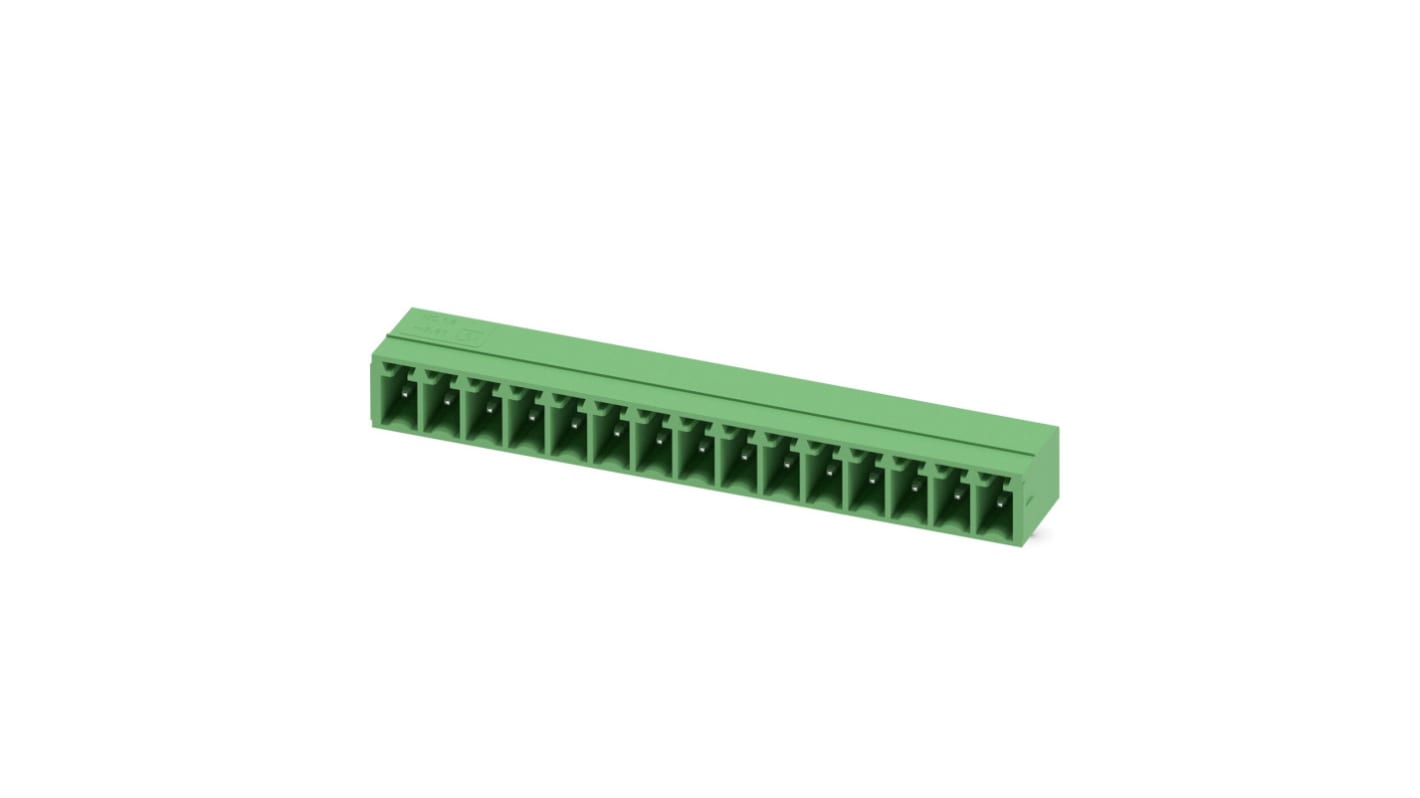

Phoenix Contact MC Series Straight Wave Soldering Mount PCB Header, 15 Contact(s), 3.81 mm Pitch, 1 Row(s)
- RS Stock No.:
- 270-9299
- Mfr. Part No.:
- 1803400
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£163.85
(exc. VAT)
£196.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £3.277 | £163.85 |
*price indicative
- RS Stock No.:
- 270-9299
- Mfr. Part No.:
- 1803400
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | MC | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 15 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.81mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CSA, cULus, EAC, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201, IECEE, RoHS, WEEE/RoHS-compliant | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series MC | ||
Pitch 3.81mm | ||
Current 8A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 15 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.81mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CSA, cULus, EAC, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201, IECEE, RoHS, WEEE/RoHS-compliant | ||
Voltage 160 V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Connector well known connection principle allows worldwide use. Device design with one header for connectors with different connection technologies allows maximum flexibility.
Allows connection of two conductors
Automatic lock system prevents accidental disconnection
