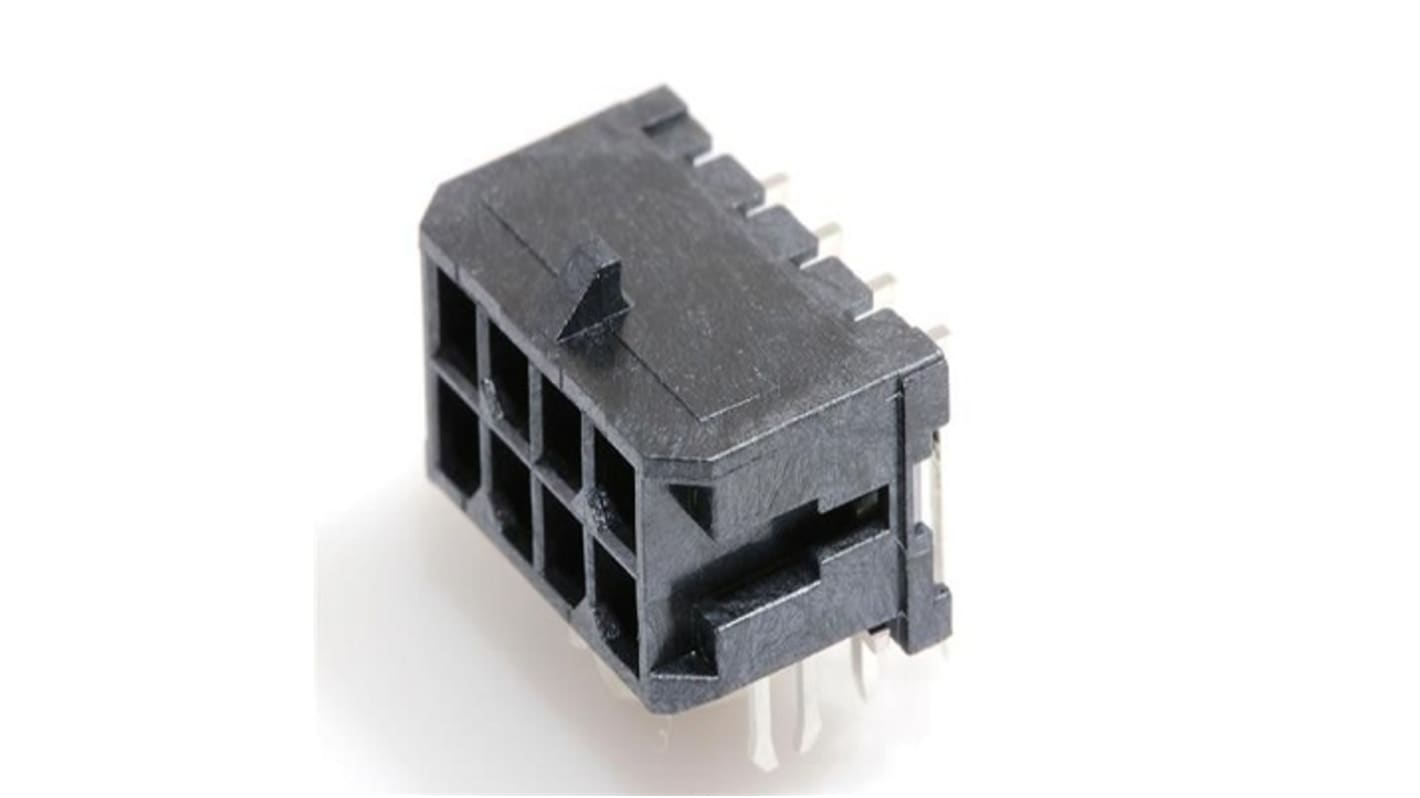

Molex 43045 Series Right Angle Through Hole PCB Header, 8 Contact(s), 3 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 264-9823
- Mfr. Part No.:
- 430450821
- Brand:
- Molex
Bulk discount available
Subtotal (1 tray of 120 units)*
£128.04
(exc. VAT)
£153.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 120 - 480 | £1.067 | £128.04 |
| 600 + | £1.001 | £120.12 |
*price indicative
- RS Stock No.:
- 264-9823
- Mfr. Part No.:
- 430450821
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 43045 | |
| Current | 8.5A | |
| Pitch | 3mm | |
| Number of Contacts | 8 | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Micro Fit 3.0 | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Row Pitch | 3mm | |
| Termination Type | Tin | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 43045 | ||
Current 8.5A | ||
Pitch 3mm | ||
Number of Contacts 8 | ||
Housing Material High Temperature Thermoplastic | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Micro Fit 3.0 | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Row Pitch 3mm | ||
Termination Type Tin | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Voltage 600 V | ||
- COO (Country of Origin):
- CN
The Molex micro-fit 3.0 interconnect system is designed to meet the need for a high contact density signal or power connector. Micro-fit 3.0 right angle header it is dual row and 8 circuits are loaded with PCB press-fit metal retention clip and glow-wire
Net weight is 1.479/g
Right angle orientation
Fully shrouded
Temperature operating range is -40° to +125°C
