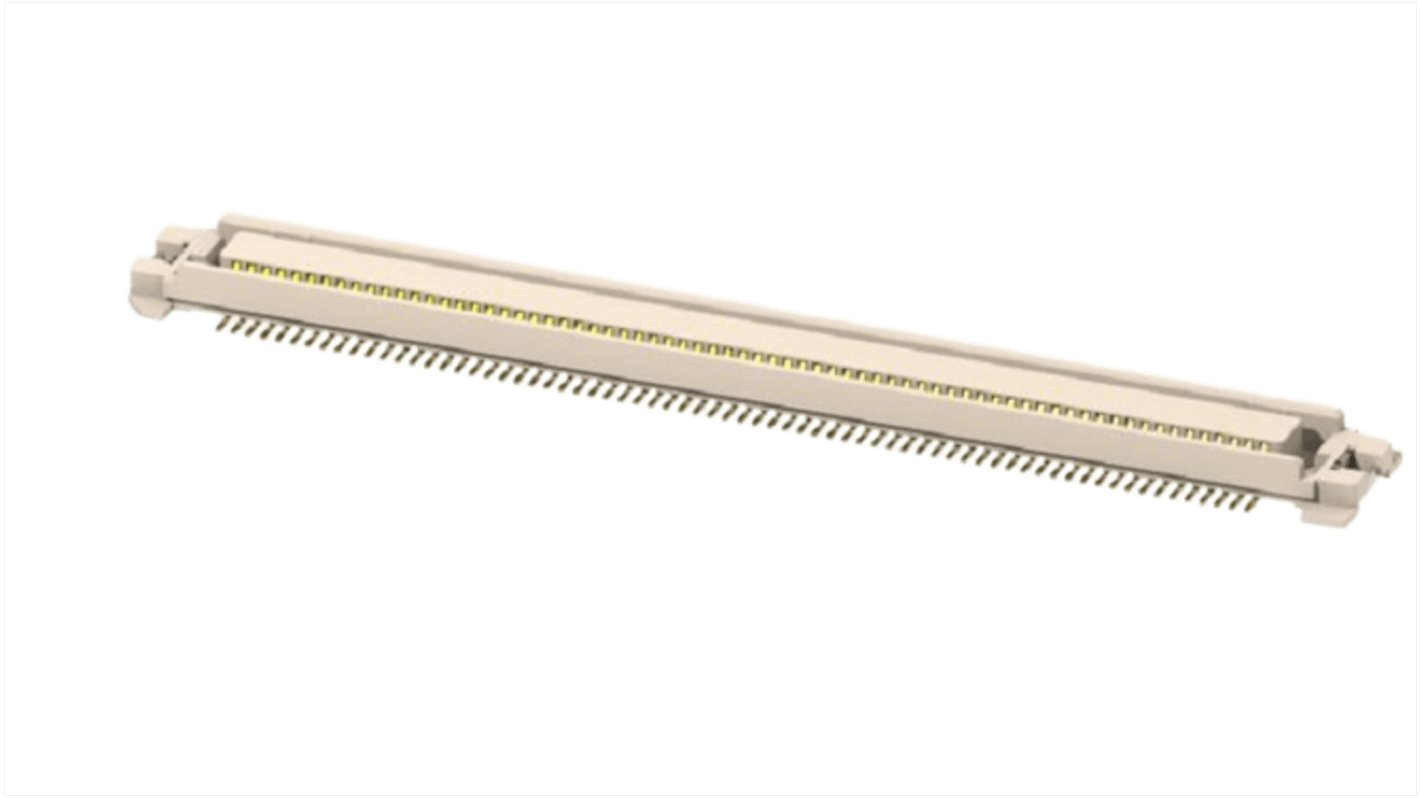

Amphenol Communications Solutions BergStak Series Vertical PCB Connector, 140 Contact(s), 0.635 mm Pitch, 2 Row(s)
- RS Stock No.:
- 262-4458
- Mfr. Part No.:
- 10169698-70000RLF
- Brand:
- Amphenol Communications Solutions
Subtotal (1 reel of 1500 units)*
£4,912.50
(exc. VAT)
£5,895.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £3.275 | £4,912.50 |
*price indicative
- RS Stock No.:
- 262-4458
- Mfr. Part No.:
- 10169698-70000RLF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Product Type | PCB Connector | |
| Series | BergStak | |
| Current | 500mA | |
| Pitch | 0.635mm | |
| Number of Contacts | 140 | |
| Housing Material | High Temperature Thermoplastic Polyester | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Connector System | Board-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Flash | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Tail Pin Length | 2.3mm | |
| Standards/Approvals | UL E66906 | |
| Voltage | 100 V | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Product Type PCB Connector | ||
Series BergStak | ||
Current 500mA | ||
Pitch 0.635mm | ||
Number of Contacts 140 | ||
Housing Material High Temperature Thermoplastic Polyester | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Connector System Board-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Tail Pin Length 2.3mm | ||
Standards/Approvals UL E66906 | ||
Voltage 100 V | ||
- COO (Country of Origin):
- CN
The Amphenol Communications Solutions micro pitch is a compact board-to-board connector with low stack height of 3.00mm. Available in 80 and 140 positions it support applications which require high pin counts and low profile connection.
Polarization features to support correct and easier mating
High-speed performance of 8Gb/s with open-pin-field
Offers design flexibility for high speed applications
