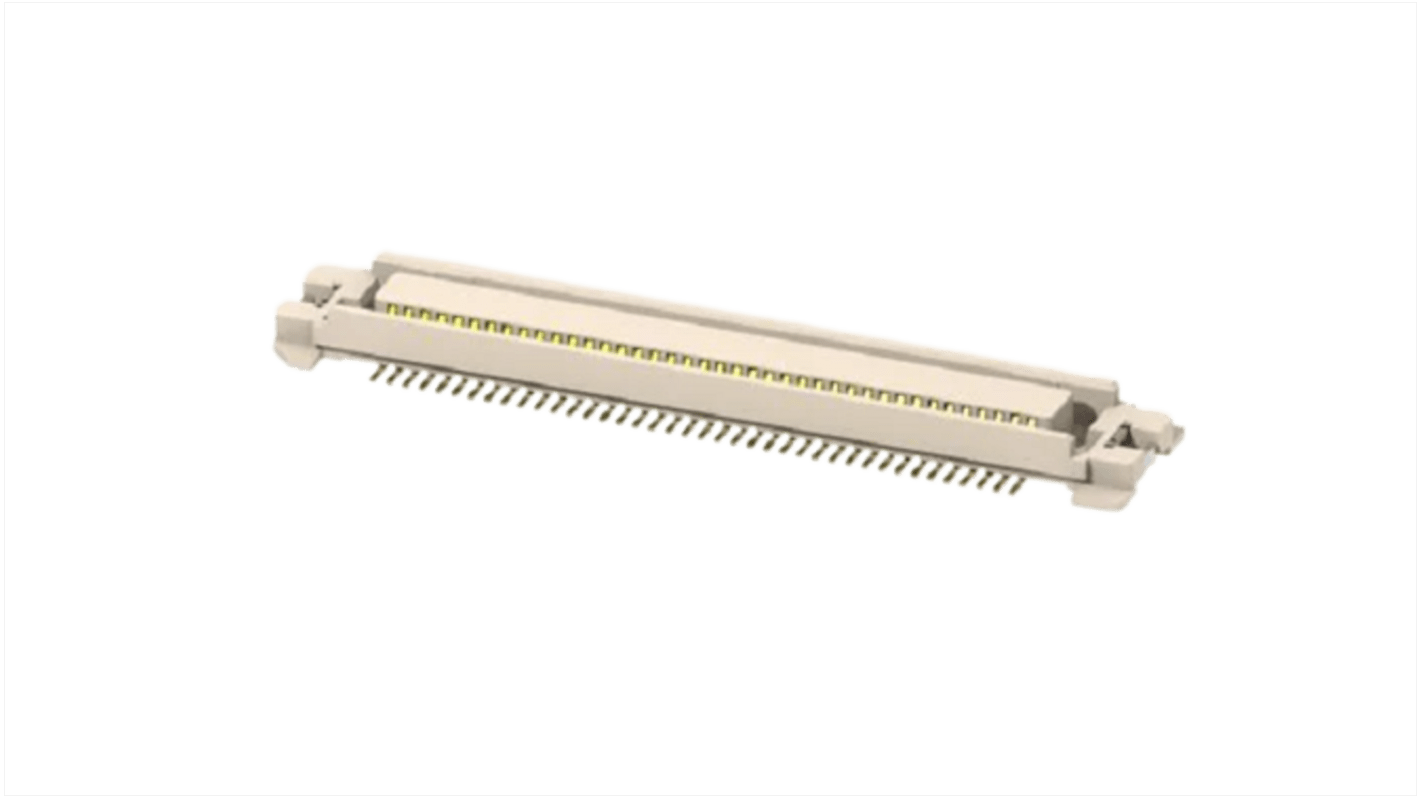

Amphenol Communications Solutions BergStak Series Vertical PCB Connector, 80 Contact(s), 635 μm Pitch, 2 Row
- RS Stock No.:
- 262-4457
- Mfr. Part No.:
- 10169698-40000RLF
- Brand:
- Amphenol Communications Solutions
Get a bulk buy discount
Add 10 more to save £2.80
View bulk pricing optionsSubtotal (1 unit)*
£3.08
(exc. VAT)
£3.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 9 | £3.08 | - |
| 10 - 24 | £2.80 | £2.80 |
| 25 - 49 | £2.57 | £12.75 |
| 50 - 99 | £2.37 | £35.50 |
| 100 + | £2.21 | £87.00 |
*price indicative
- RS Stock No.:
- 262-4457
- Mfr. Part No.:
- 10169698-40000RLF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Product Type | PCB Connector | |
| Series | BergStak | |
| Current | 500mA | |
| Pitch | 635μm | |
| Number of Contacts | 80 | |
| Housing Material | High Temperature Thermoplastic Polyester | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Connector System | Board-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Flash | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Male | |
| Standards/Approvals | UL E66906 | |
| Voltage | 100V | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Product Type PCB Connector | ||
Series BergStak | ||
Current 500mA | ||
Pitch 635μm | ||
Number of Contacts 80 | ||
Housing Material High Temperature Thermoplastic Polyester | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Connector System Board-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Male | ||
Standards/Approvals UL E66906 | ||
Voltage 100V | ||
- COO (Country of Origin):
- CN
The Amphenol Communications Solutions micro pitch is a compact board-to-board connector with low stack height of 3.00mm. Available in 80 and 140 positions it support applications which require high pin counts and low profile connection.
Polarization features to support correct and easier mating
High-speed performance of 8Gb/s with open-pin-field
Offers design flexibility for high speed applications
