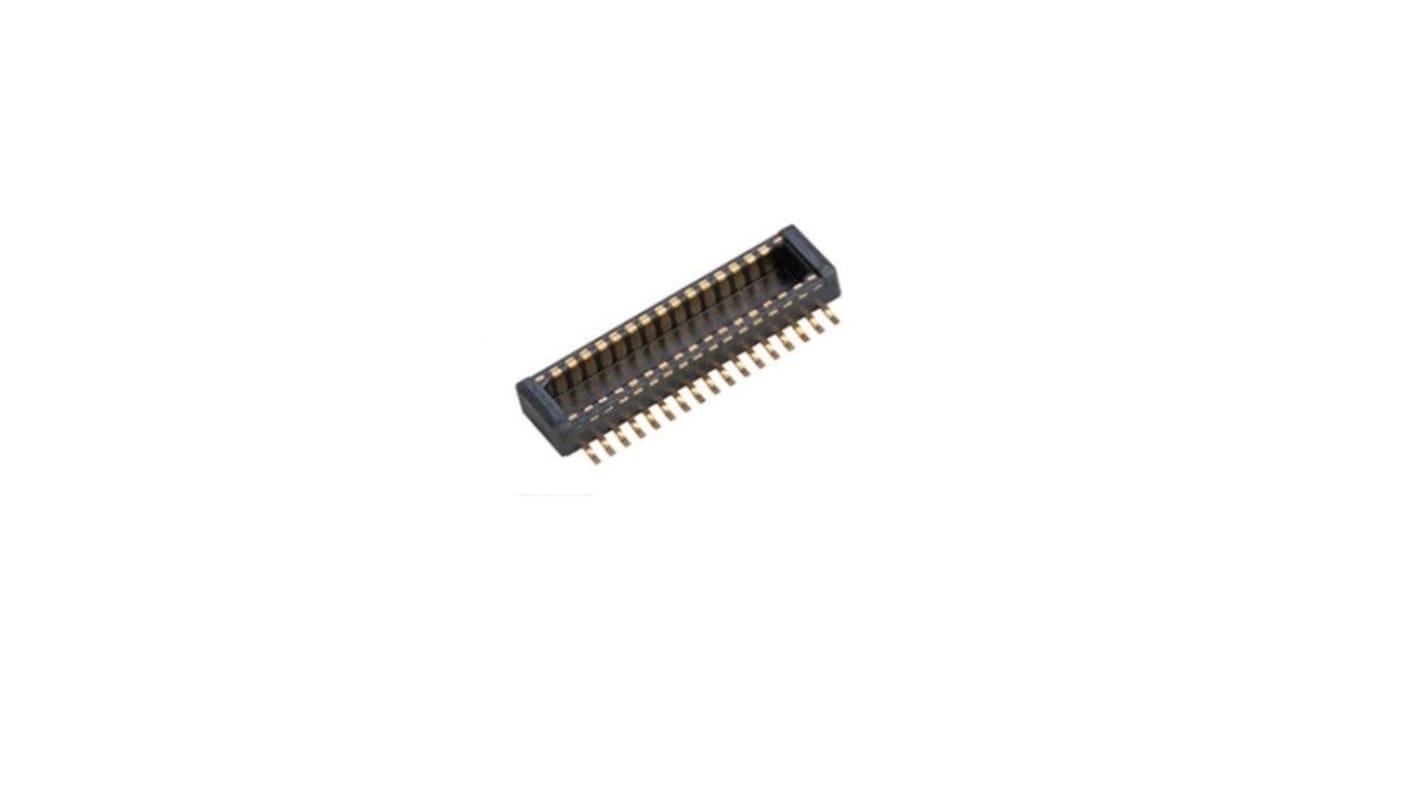

Amphenol ICC BergStak Series Vertical Surface Mount PCB Header, 30 Contact(s), 0.4mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 216-1783
- Mfr. Part No.:
- 10142886-030A2EHLF
- Brand:
- Amphenol ICC
4480 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£0.966
(exc. VAT)
£1.159
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.966 | £4.83 |
| 50 - 120 | £0.88 | £4.40 |
| 125 - 245 | £0.804 | £4.02 |
| 250 - 495 | £0.742 | £3.71 |
| 500 + | £0.688 | £3.44 |
*price indicative
- RS Stock No.:
- 216-1783
- Mfr. Part No.:
- 10142886-030A2EHLF
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Amphenol ICC BergStak® 0.40mm self-alignment connectors come with a stack height of 3.50mm and 30 positions extendable up to 10 to 60 positions with 10 positions incremental. It has a unique self-alignment feature that supports blind mating, ensuring a reliable connection. The USCAR-2 compliant connector is also ideal for the automotive market.
0.40mm fine pitch design
Self-alignment feature
Supports speed performance up to 8Gb/s
Meets USCAR-2 vibration and shock limits
Self-alignment feature
Supports speed performance up to 8Gb/s
Meets USCAR-2 vibration and shock limits
Specifications
Attribute | Value |
|---|---|
| Series | BergStak |
| Pitch | 0.4mm |
| Number of Contacts | 30 |
| Number of Rows | 2 |
| Body Orientation | Vertical |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
