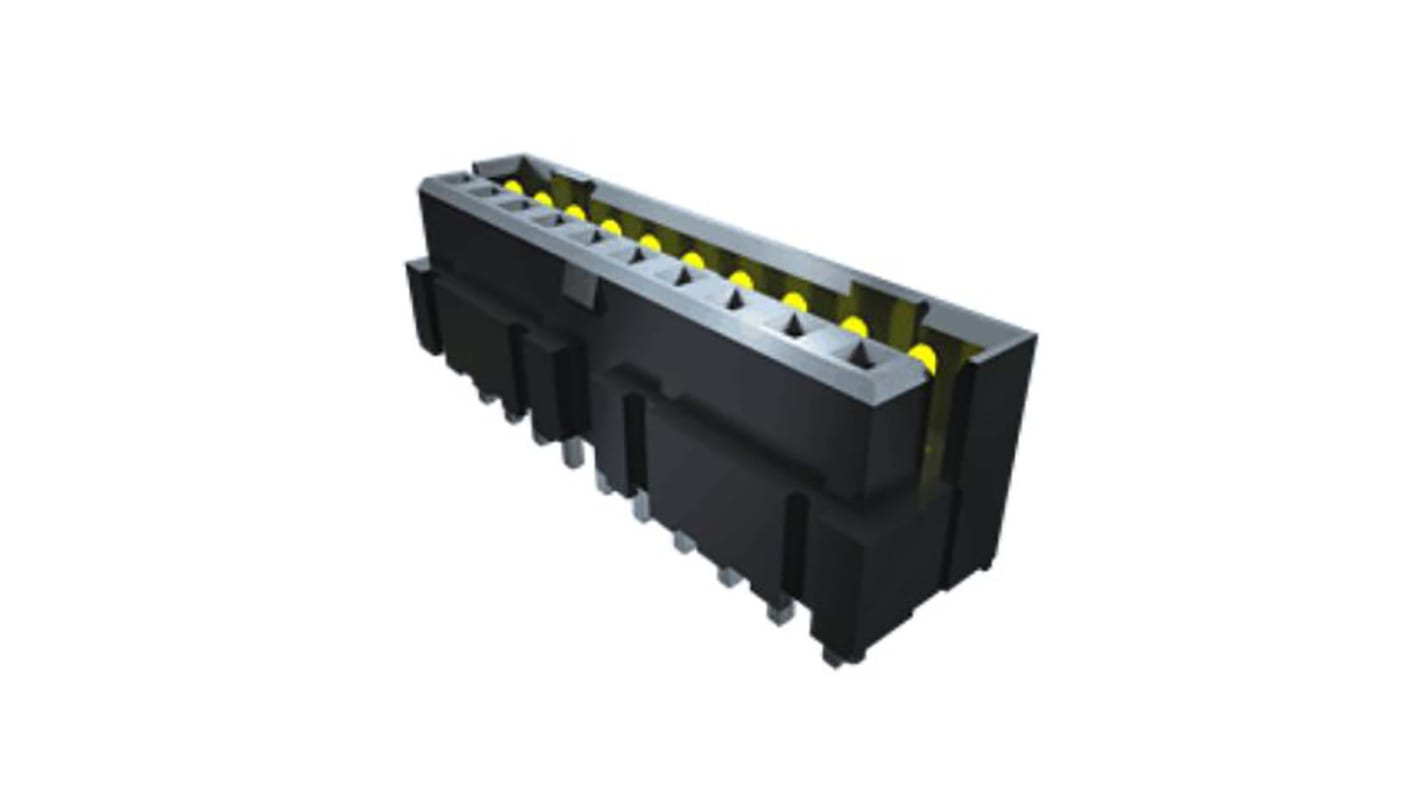

Samtec LS2 Series Vertical Through Hole PCB Header, 10 Contact(s), 2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 208-8795
- Mfr. Part No.:
- LS2-105-01-S-D
- Brand:
- Samtec
Bulk discount available
Subtotal (1 tube of 49 units)*
£228.83
(exc. VAT)
£274.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 49 - 196 | £4.67 | £228.83 |
| 245 - 441 | £4.343 | £212.81 |
| 490 + | £4.124 | £202.08 |
*price indicative
- RS Stock No.:
- 208-8795
- Mfr. Part No.:
- LS2-105-01-S-D
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | LS2 | |
| Product Type | PCB Header | |
| Current | 3.2A | |
| Pitch | 2mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Board-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Row Pitch | 2mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Voltage | 475 V | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Series LS2 | ||
Product Type PCB Header | ||
Current 3.2A | ||
Pitch 2mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Board-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Row Pitch 2mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Voltage 475 V | ||
The Samtec 2 mm locking hermaphroditic connector has 10 position which used 3.2 A of current per pin.
Operating temperature range -55 °C to +125 °C
