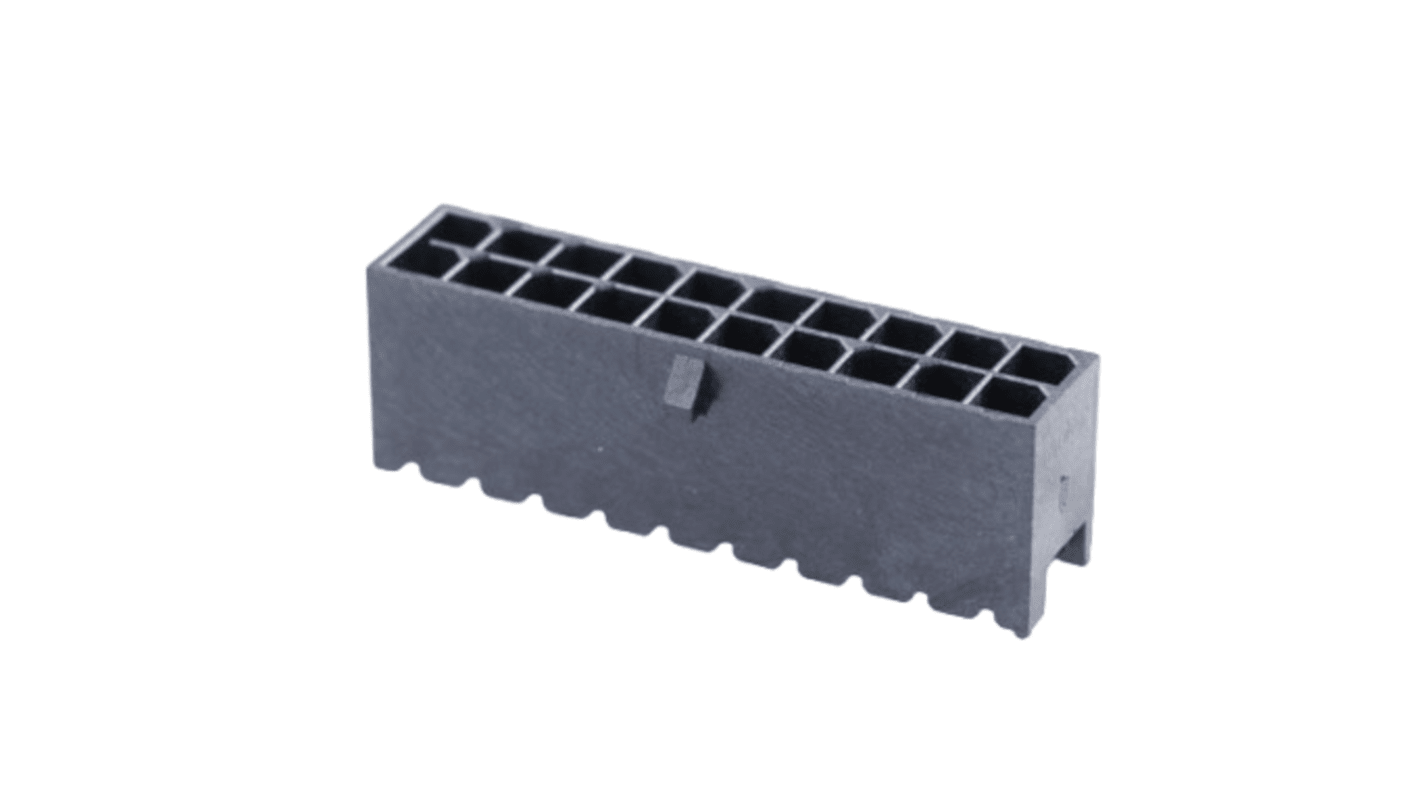

Molex Micro-Fit Series Vertical Through Hole PCB Header, 20 Contact(s), 3 mm Pitch, 2 Row(s), Shrouded

RS Stock No.:: 200-9817
Mfr. Part No.:: 206832-2002
Brand:: Molex

Molex Micro-Fit Series Vertical Through Hole PCB Header, 20 Contact(s), 3 mm Pitch, 2 Row(s), Shrouded

Subtotal (1 tray of 60 units)*

£195.31

(exc. VAT)

£234.37

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

11 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tray(s)	Per Tray	Per unit*
1 +	£195.31	£3.255

*price indicative

RS Stock No.:: 200-9817
Mfr. Part No.:: 206832-2002
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	Micro-Fit
	Product Type	PCB Header
	Current	12.5A
	Pitch	3mm
	Housing Material	Liquid Crystal Polymer
	Number of Contacts	20
	Number of Rows	2
	Orientation	Vertical
	Shrouded/Unshrouded	Shrouded
	Connector System	Wire-to-Board
	Mount Type	Through Hole
	Contact Plating	Gold
	Contact Material	Copper Alloy
	Termination Type	Solder
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Tail Pin Length	3.18mm
	Contact Gender	Male
	Standards/Approvals	No
	Voltage	600 V

	Select all
	Brand Molex
	Series Micro-Fit
	Product Type PCB Header
	Current 12.5A
	Pitch 3mm
	Housing Material Liquid Crystal Polymer
	Number of Contacts 20
	Number of Rows 2
	Orientation Vertical
	Shrouded/Unshrouded Shrouded
	Connector System Wire-to-Board
	Mount Type Through Hole
	Contact Plating Gold
	Contact Material Copper Alloy
	Termination Type Solder
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Tail Pin Length 3.18mm
	Contact Gender Male
	Standards/Approvals No
	Voltage 600 V

COO (Country of Origin):: CN

Molex 206832 Series PCB Header, 3mm Pitch, 20 Contacts - 206832-2002

This PCB header is designed for high-performance applications in the electronics and automation industries. The product features a 3.0mm pitch, dual-row configuration with 20 circuits, ideal for connecting various components effectively. With a vertical mounting orientation and a shrouded design, it ensures secure and efficient connectivity in wire-to-board scenarios.

Features & Benefits

• High copper alloy contact material enhances conductivity and durability

• Gold plating improves corrosion resistance and ensures reliable connections

• Shrouded design prevents unintended contact for increased safety

• Supports a maximum current rating of 12A for high-power applications

• Through-hole design allows for secure and stable mounting

• Glow-wire capable, suitable for rigorous thermal conditions

Applications

• Used in power distribution systems connecting wires to PCBs

• Ideal for automation equipment requiring reliable electrical connections

• Suitable for electrical systems where space is limited and efficiency is a priority

• Employed in mechanical devices needing robust and stable connections

What is the maximum current rating for individual circuits?

Each circuit supports a maximum current rating of 12.5A, accommodating various electrical demands in high-power applications.

What are the compatible materials used in its construction?

The header is primarily constructed from a high copper alloy for the contact material, ensuring superior electrical performance. The resin is liquid crystal polymer, providing thermal stability and durability.

How does the glow-wire capability enhance usability?

The glow-wire capability allows this component to resist ignition under elevated temperatures, making it suitable for applications where safety and thermal performance are crucial.

What is the maximum operating temperature range for this product?

This component operates efficiently within a temperature range of -40°C to +105°C, making it versatile for various environments, including industrial applications.
