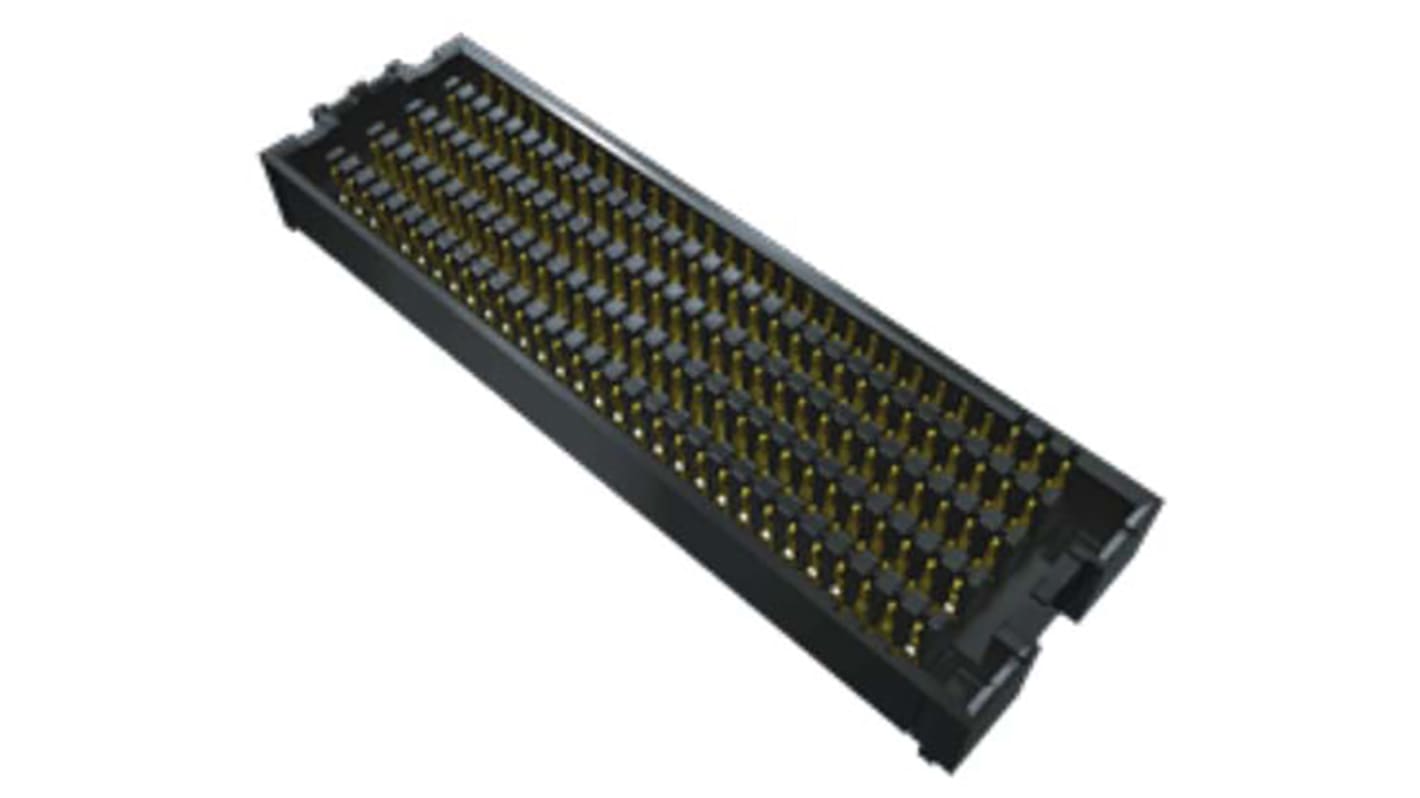

Samtec SEAF Series Straight PCB Header, 180 Contact(s), 1.27mm Pitch, 6 Row(s), Shrouded
- RS Stock No.:
- 200-1955
- Mfr. Part No.:
- SEAF-30-06.0-S-06-2-A-K-TR
- Brand:
- Samtec
2 In stock - FREE next working day delivery available
Price Each
£13.66
(exc. VAT)
£16.39
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £13.66 |
| 10 - 24 | £13.33 |
| 25 - 49 | £12.89 |
| 50 - 99 | £12.42 |
| 100 + | £11.96 |
- RS Stock No.:
- 200-1955
- Mfr. Part No.:
- SEAF-30-06.0-S-06-2-A-K-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec SEAF series high-speed ground plane terminal strip has 180 pins. It has pole pitch of 1.27 mm. The insulation material used is of Black LCP and material used for terminals is of copper alloy.
Plating used is of Au or Sn over 50 μ" (1.27 μm) Ni
Operating Temperature is between -55 °C to +125 °C
Voltage rating is 240 VAC
It is RoHS compliant
7 mm stack height
Operating Temperature is between -55 °C to +125 °C
Voltage rating is 240 VAC
It is RoHS compliant
7 mm stack height
Specifications
Attribute | Value |
|---|---|
| Series | SEAF |
| Pitch | 1.27mm |
| Number of Contacts | 180 |
| Number of Rows | 6 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
