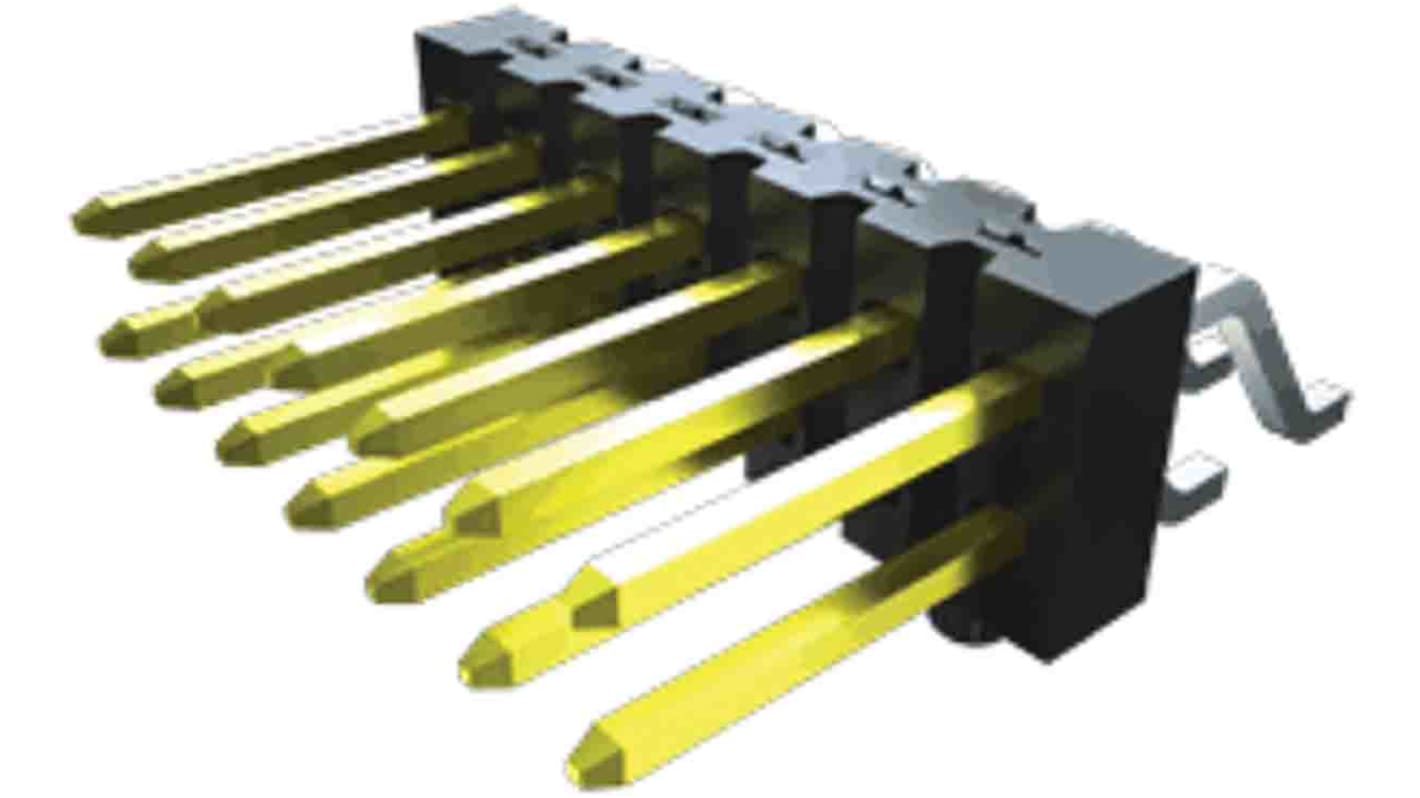

Samtec TSM Series Vertical Surface Mount Pin Header, 12 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 200-1589
- Mfr. Part No.:
- TSM-106-01-L-DV-A
- Brand:
- Samtec
Bulk discount available
Subtotal (1 tube of 38 units)*
£57.532
(exc. VAT)
£69.046
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 76 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 38 - 38 | £1.514 | £57.53 |
| 76 - 152 | £1.34 | £50.92 |
| 190 - 342 | £1.161 | £44.12 |
| 380 + | £1.023 | £38.87 |
*price indicative
- RS Stock No.:
- 200-1589
- Mfr. Part No.:
- TSM-106-01-L-DV-A
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Series | TSM | |
| Pitch | 2.54mm | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Body Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mounting Type | Surface Mount | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Series TSM | ||
Pitch 2.54mm | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Surface Mount | ||
The Samtec TSM series is a surface mount terminal strip. Insulating material used is of Black liquid crystal polymer. Terminals are of phosphor bronze. There are total 12 no. of contacts.
Plating used : Au or Sn over 50 μ" (1.27 μm) Ni
Operating temp range: -55 °C to +105 °C with Tin
Operating temp range: -55 °C to +105 °C with Tin
-55 °C to +125 °C with Gold
It is RoHS Compliant
It is RoHS Compliant
