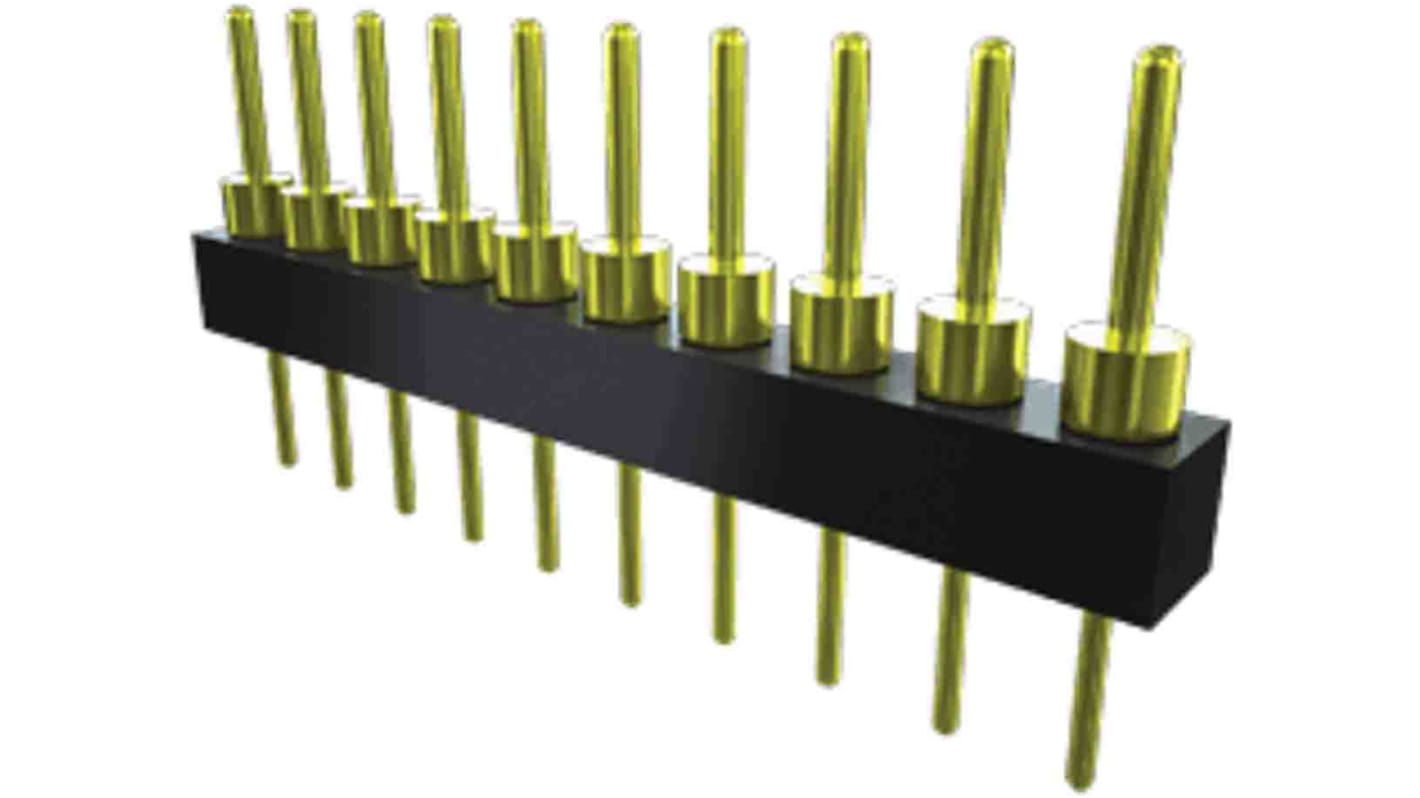

Samtec TS Series Straight Through Hole Pin Header, 20 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 200-1513
- Mfr. Part No.:
- TS-120-T-A
- Brand:
- Samtec
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 2)
£2.615
(exc. VAT)
£3.138
(inc. VAT)
Units | Per unit | Per Pack* |
2 + | £2.615 | £5.23 |
*price indicative |
- RS Stock No.:
- 200-1513
- Mfr. Part No.:
- TS-120-T-A
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec TS series are precision machined terminal strips. Insulating material used is of black G.F. Polyester. The terminals are of brass, except for type G, it is of phosphor bronze. There are total 20 no. of contacts.
Plating used : Au over 50 μ" (1.27 μm) Ni or Sn over 100 μ" (2.54 μm) Cu or 50 μ" (1.27 μm) Ni
Operating temp range: -55 °C to +125 °C with Gold
Operating temp range: -55 °C to +125 °C with Gold
-55 °C to +105 °C with Tin
It is RoHS compliant
It is RoHS compliant
Specifications
Attribute | Value |
---|---|
Series | TS |
Pitch | 2.54mm |
Number of Contacts | 20 |
Number of Rows | 1 |
Body Orientation | Straight |
Shrouded/Unshrouded | Unshrouded |
Mounting Type | Through Hole |
