Molex 7395 Series Right Angle Through Hole Pin Header, 5 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 188-8804
- Mfr. Part No.:
- 22-05-7058
- Brand:
- Molex

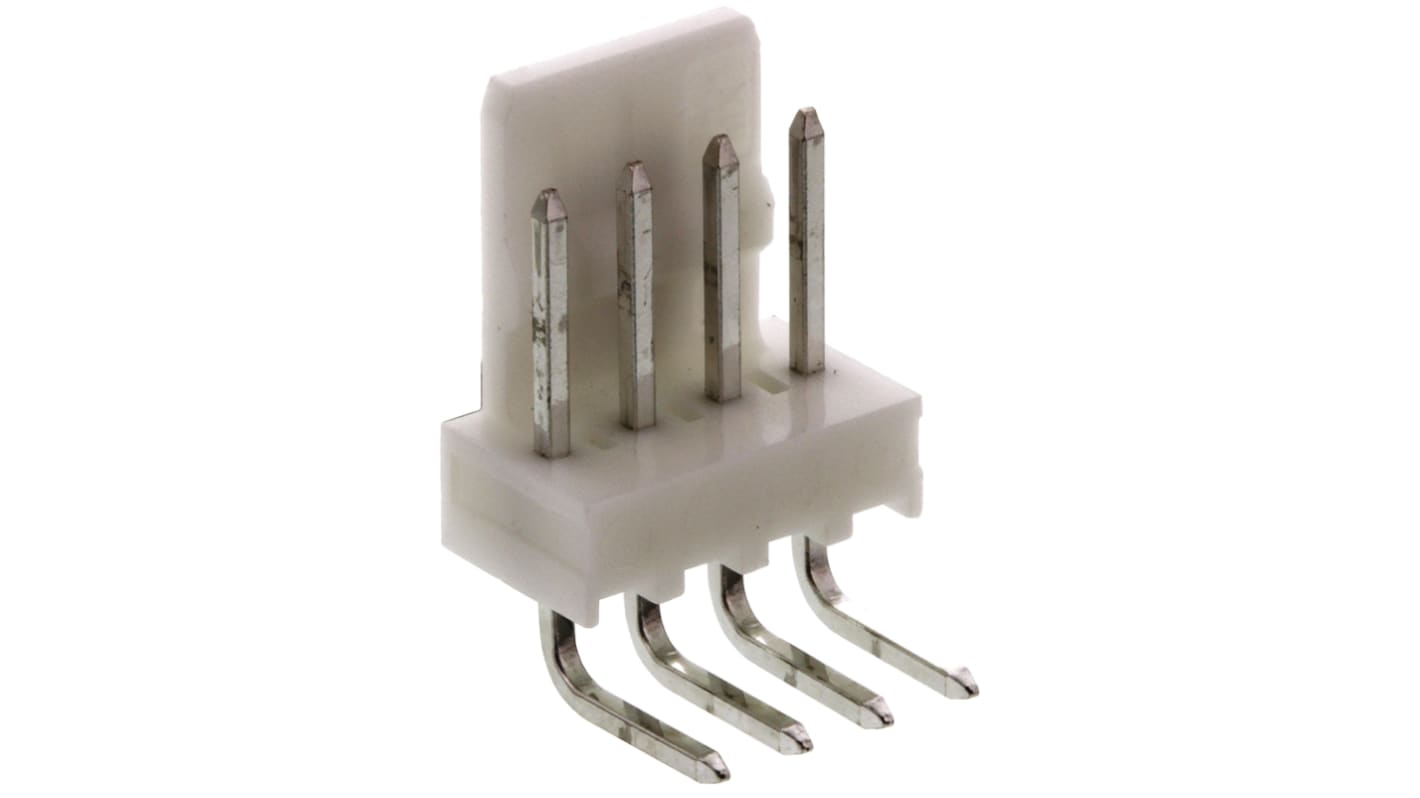

Image representative of range
Bulk discount available
Subtotal (1 box of 1000 units)*
£608.00
(exc. VAT)
£730.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,000 unit(s) shipping from 02 December 2025
- Plus 1,000 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 4000 | £0.608 | £608.00 |
| 5000 - 9000 | £0.577 | £577.00 |
| 10000 + | £0.547 | £547.00 |
*price indicative
- RS Stock No.:
- 188-8804
- Mfr. Part No.:
- 22-05-7058
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Pin Header | |
| Series | 7395 | |
| Pitch | 2.54mm | |
| Current | 4A | |
| Housing Material | Nylon | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Mating Pin Length | 2.54mm | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Pin Header | ||
Series 7395 | ||
Pitch 2.54mm | ||
Current 4A | ||
Housing Material Nylon | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Mating Pin Length 2.54mm | ||
Voltage 500 V | ||
- COO (Country of Origin):
- MX
Molex Pin Header, 4A Contact Rating, 250V Rated Voltage - 7395 Series - 22-05-7058
Simplify your PCB design using this Molex pin header. It locks into its mating part (679-5385) and holds fast, giving you a secure connection with minimal effort. Thanks to its right-angle shape, this unit's primed for tricky installations near the board's edge. It also has safety covered, as it resists up to 1,000MΩ to keep your circuits safe from damage.
Features & Benefits
• Nylon housing withstands abrasion and impact in demanding conditions
• Solder termination method achieves strong and stable connections even in vibrating applications
• Through-hole mounting makes installation simple
• Tin-plated contacts are resistant to corrosion in humid settings
• Comes in a pack of 5 for handy restocking
Applications
• Signalling systems
• Manufacturing industry
• Electronic device design
Can I remove and remate this component?
Yes, you can remate it up to 25 times without impacting performance, so it's a hardwearing option.
KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series
The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and MADE from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
