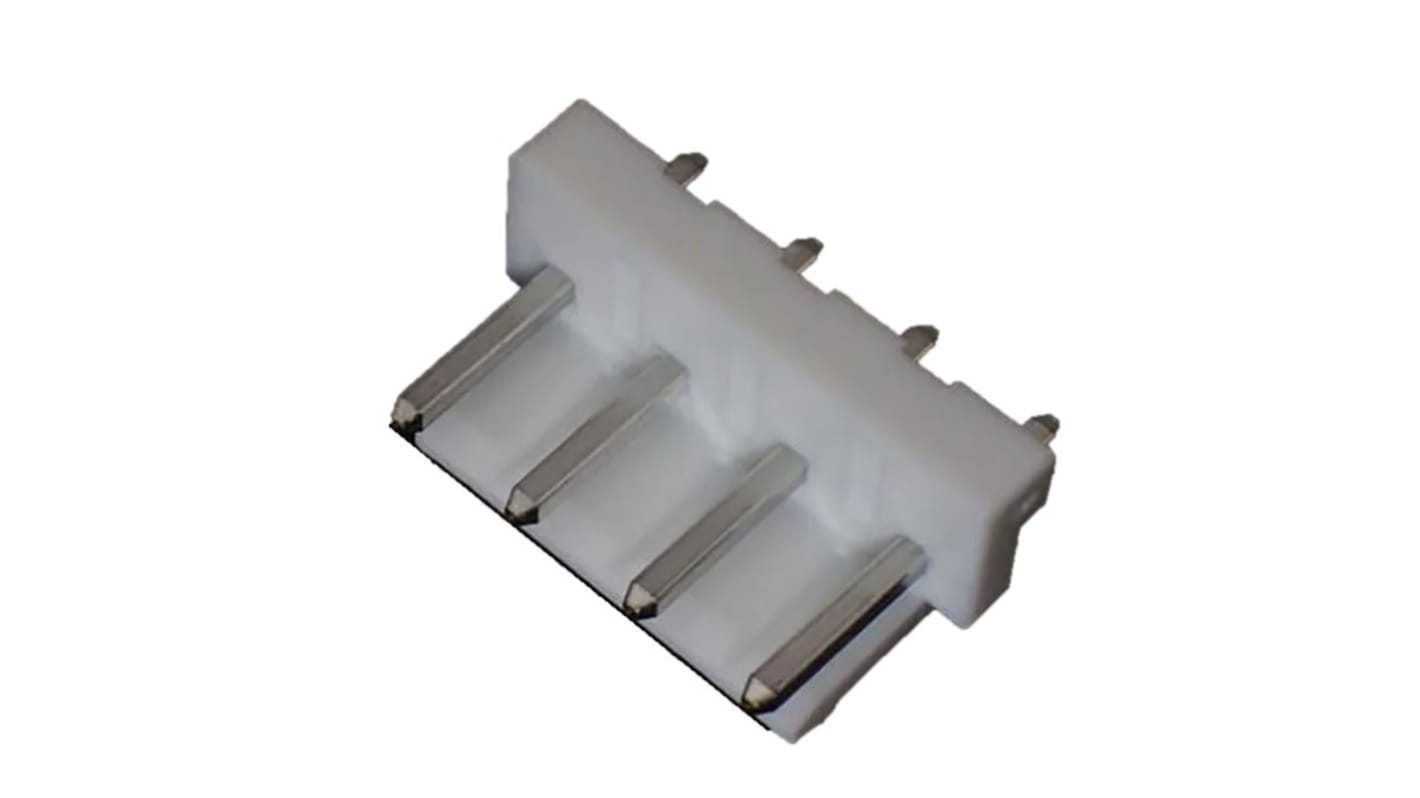

JST NV Series Top Entry Through Hole PCB Header, 4 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 20 units)*

£4.60

(exc. VAT)

£5.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 680 unit(s) ready to ship
  • Plus 720 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 - 80£0.23£4.60
100 - 180£0.219£4.38
200 - 280£0.209£4.18
300 - 380£0.198£3.96
400 +£0.188£3.76

*price indicative

RS Stock No.:
185-6930
Distrelec Article No.:
304-09-557
Mfr. Part No.:
B04P-NV (LF)(SN)
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Product Type

PCB Header

Series

NV

Pitch

5mm

Current

10A

Housing Material

Fibreglass Reinforced Polybutylene Terephthalate

Number of Contacts

4

Number of Rows

1

Orientation

Top Entry

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Through Hole

Contact Material

Brass

Row Pitch

5mm

Termination Type

Solder

Minimum Operating Temperature

-25°C

Contact Gender

Male

Maximum Operating Temperature

85°C

Tail Pin Length

3.7mm

Standards/Approvals

No

Mating Pin Length

7.7mm

Voltage

250 V

Distrelec Product Id

30409557

COO (Country of Origin):
JP
Suitable for a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits requiring large currents. Compact connector (mounting height of 16.5mm) with a large capacity (10A). Side stackable. Connectors can be stacked side by side without causing pitch loss, and thus the number of circuits can easily be changed even after the design is finalized.

Side stackable

Connectors can be stacked side by side without causing pitch loss, and thus the number of circuits can easily be changed even after the design is finalized. This increases the engineer's freedom in designing printed circuit boards.

Box contact

This connector has been the box-shaped contact. The reliable NV connector can be used in a wide variety of applications, from low-voltage, low-current signal circuits to power supply circuits having a relatively large capacity.

Compact connector with a large capacity

Even though this connector has a large current carrying capacity (10A), it is compact, with a mounting height of 16.5mm (.650").

Secure contact and mounting

The housing has an arm lock mechanism which prevents the connector from working loose due to vibration. The mechanism also prevents mis insertion (misalignment or reverse insertion).

Related links
