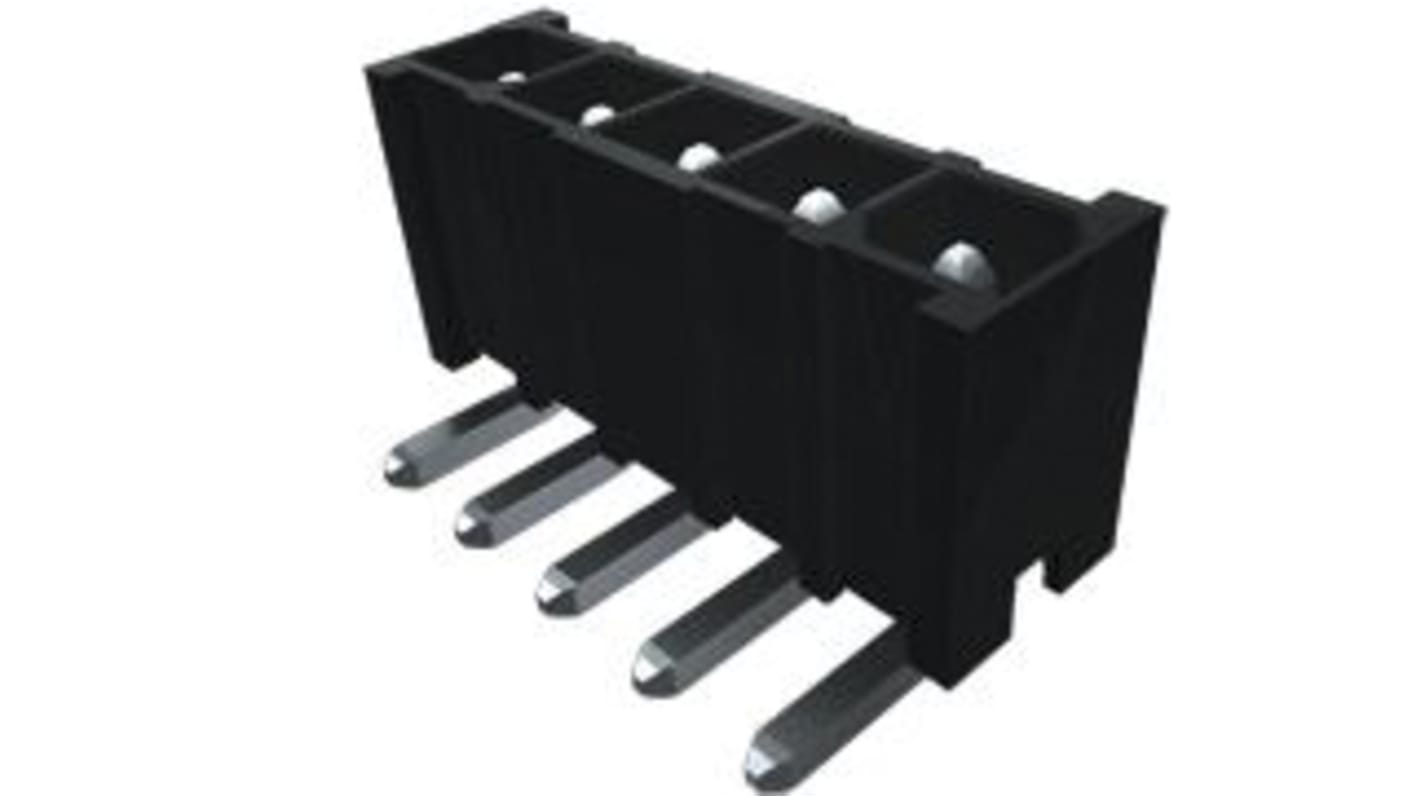

Samtec IPBT Series Right Angle Through Hole PCB Header, 10 Contact(s), 4.19mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 180-1464
- Mfr. Part No.:
- IPBT-105-H1-T-D-RA-K
- Brand:
- Samtec
5 In stock - FREE next working day delivery available
Price Each (In a Tube of 25)
£3.077
(exc. VAT)
£3.692
(inc. VAT)
Units | Per unit | Per Tube* |
|---|---|---|
| 25 + | £3.077 | £76.925 |
*price indicative
- RS Stock No.:
- 180-1464
- Mfr. Part No.:
- IPBT-105-H1-T-D-RA-K
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
.165" (4.19 mm) pitch
Individually shrouded contacts
Single or double row
Optional polarized guide post holes
Vertical through-hole and surface mount, right-angle through-hole
Elevated stack height options
Current rating to 5.3 A @ 75°C
Individually shrouded contacts
Single or double row
Optional polarized guide post holes
Vertical through-hole and surface mount, right-angle through-hole
Elevated stack height options
Current rating to 5.3 A @ 75°C
Specifications
Attribute | Value |
|---|---|
| Series | IPBT |
| Pitch | 4.19mm |
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Body Orientation | Right Angle |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Copper Alloy |
| Current Rating | 10.0A |
| Voltage Rating | 400.0 V , 565.0 V dc |
