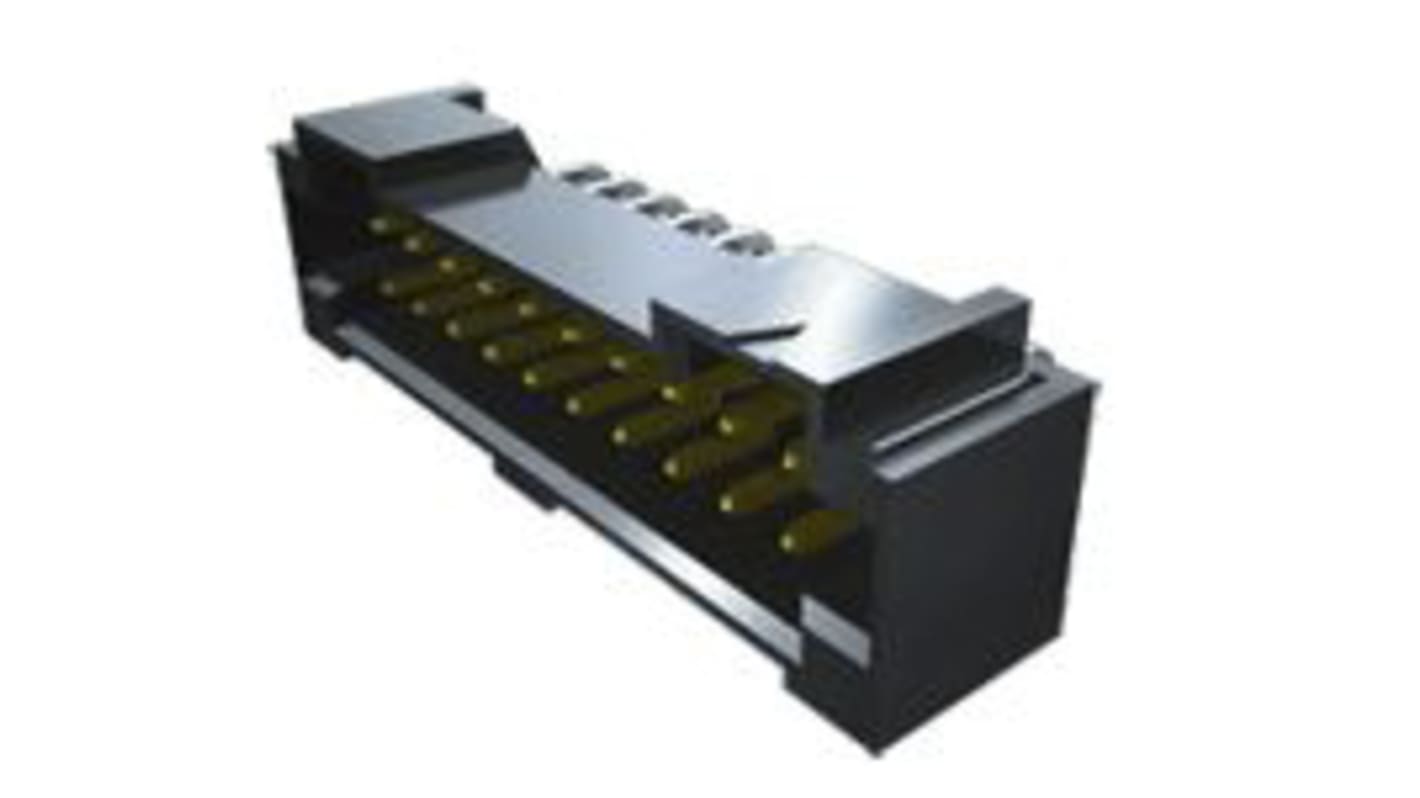

Samtec T2M Series Straight Surface Mount PCB Header, 20 Contact(s), 2.0mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 22 units)*

£74.976

(exc. VAT)

£89.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 88 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
22 +£3.408£74.98

*price indicative

RS Stock No.:
180-1427
Mfr. Part No.:
T2M-110-01-L-D-SM-WT
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Series

T2M

Pitch

2.0mm

Number of Contacts

20

Number of Rows

2

Body Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Wire to Board

Mounting Type

Surface Mount

Termination Method

Solder

Contact Plating

Gold

Contact Material

Phosphor Bronze

Current Rating

3.8A

Voltage Rating

250.0 V , 350.0 V dc

Pitch: 2.00 mm (.0787")
Contact System: 0.50 mm (.020") square post
Orientation: Vertical, right-angle
Termination: Through-hole, surface mount
Application: Mating with rugged Tiger Eye™ contact sockets
Special Features: Screw down and weld tab features available for the most rugged requirements
