MPN

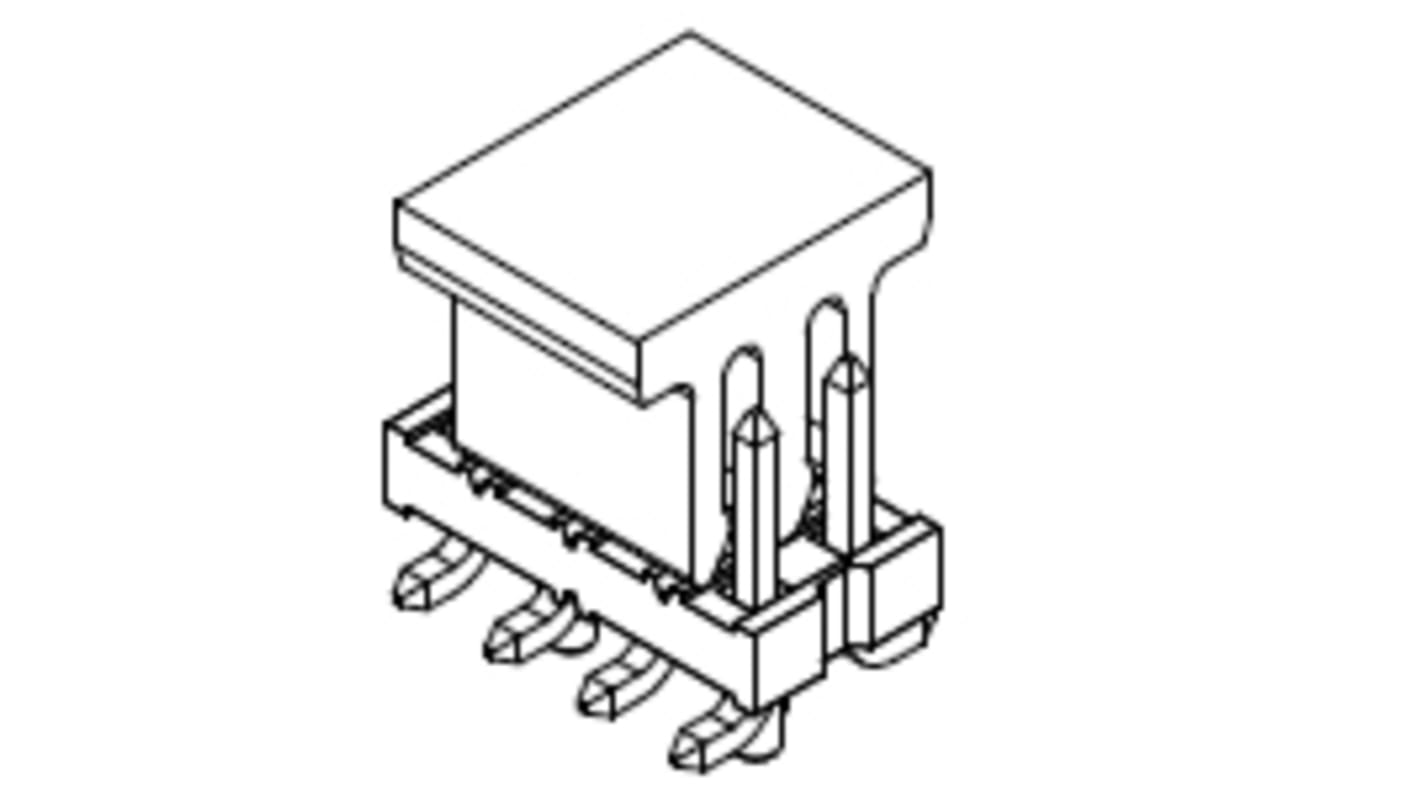

Molex Milli-Grid Series Straight Surface PCB Header, 12 Contact(s), 2 mm Pitch, 2 Row, Shrouded

RS Stock No.:: 179-1842
Mfr. Part No.:: 87759-1274
Brand:: Molex

Molex Milli-Grid Series Straight Surface PCB Header, 12 Contact(s), 2 mm Pitch, 2 Row, Shrouded

Bulk discount available

Subtotal (1 pack of 10 units)*

£13.80

(exc. VAT)

£16.60

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 31 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
10 - 40	£1.38	£13.80
50 - 90	£1.331	£13.31
100 - 240	£1.296	£12.96
250 - 490	£1.26	£12.60
500 +	£1.228	£12.28

*price indicative

RS Stock No.:: 179-1842
Mfr. Part No.:: 87759-1274
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Product Type	PCB Header
	Series	Milli-Grid
	Current	2A
	Pitch	2mm
	Number of Contacts	12
	Housing Material	Nylon
	Number of Rows	2
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Connector System	Board-to-Board
	Mount Type	Surface
	Contact Material	Phosphor Bronze
	Contact Plating	Gold
	Termination Type	Solder
	Row Pitch	2mm
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	105°C
	Contact Gender	Male
	Standards/Approvals	No
	Voltage	125V

	Select all
	Brand Molex
	Product Type PCB Header
	Series Milli-Grid
	Current 2A
	Pitch 2mm
	Number of Contacts 12
	Housing Material Nylon
	Number of Rows 2
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Connector System Board-to-Board
	Mount Type Surface
	Contact Material Phosphor Bronze
	Contact Plating Gold
	Termination Type Solder
	Row Pitch 2mm
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 105°C
	Contact Gender Male
	Standards/Approvals No
	Voltage 125V

Datasheet

COO (Country of Origin):: ID

Molex PCB Header

The Molex PCB Milli-Grid 87759 series surface mount vertical PCB header has 12-way contacts. It has a voltage rating of 125V and a current rating of 2A. The header has gold and tin-plated phosphor bronze contacts. This PCB Header is used in portable and handheld equipment.

Features and Benefits

• Dual row

• High reliability

• Large mating guide

• Lead Free

• Operating temperature ranges between -55°C and 125°C

• Pitch size is 2mm

• Shrouded headed

• Termination method is solder

• Without Press-fit Plastic Pegs

Certifications

• UL listed
