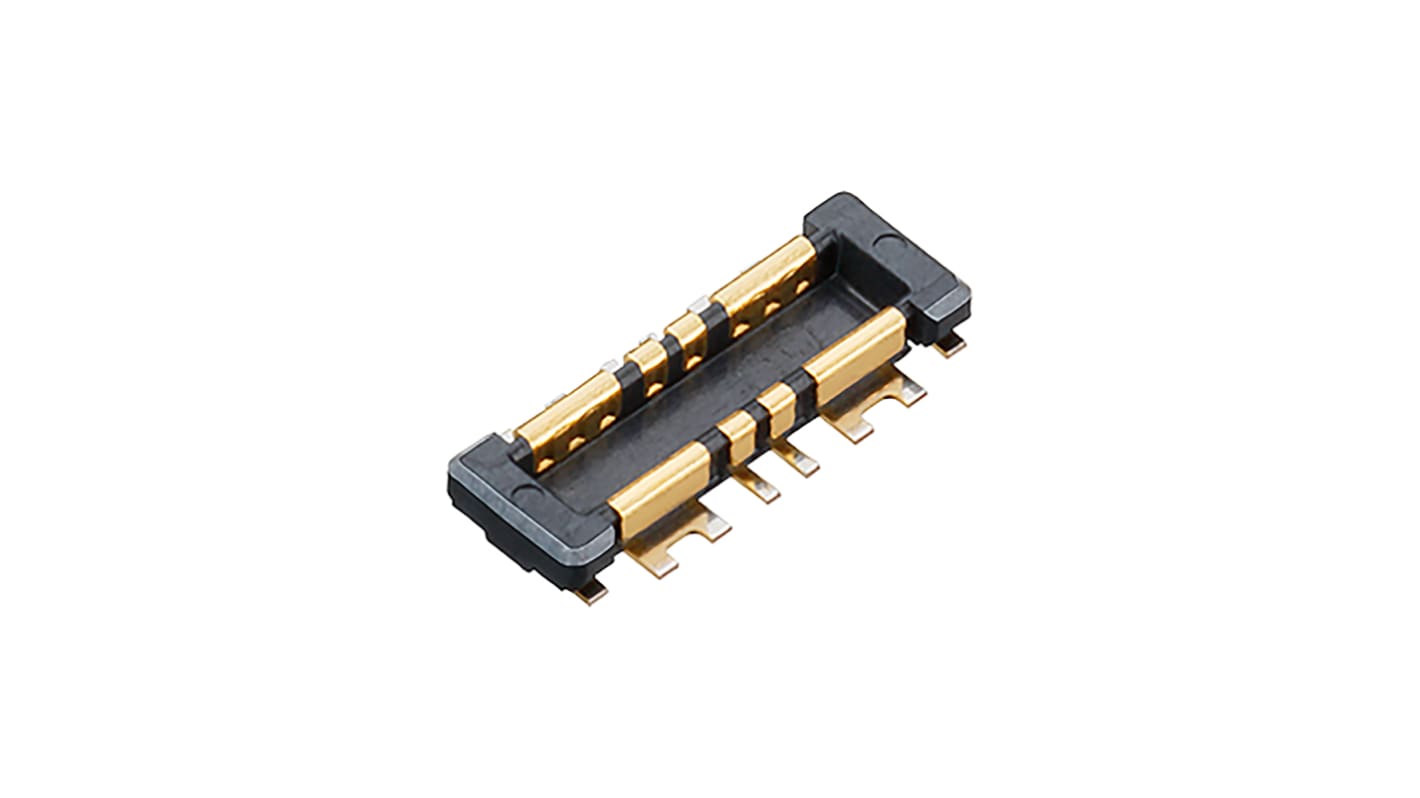

Panasonic B02 Series Straight Surface Mount PCB Header, 8 Contact(s), 0.8mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 179-0972
- Mfr. Part No.:
- AXF482700
- Brand:
- Panasonic
- RS Stock No.:
- 179-0972
- Mfr. Part No.:
- AXF482700
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
FEATURES
High current rating: 10A (5A/pin ´ pins)
signal pin type for wide range of control applications
High removal force while miniature and low profile
APPLICATIONS
Smartphones, tablet PCs and other mobile devices
High current rating: 10A (5A/pin ´ pins)
signal pin type for wide range of control applications
High removal force while miniature and low profile
APPLICATIONS
Smartphones, tablet PCs and other mobile devices
Specifications
Attribute | Value |
---|---|
Series | B02 |
Pitch | 0.8mm |
Number of Contacts | 8 |
Number of Rows | 2 |
Body Orientation | Straight |
Shrouded/Unshrouded | Shrouded |
Mounting Type | Surface Mount |
Termination Method | Solder |
Contact Material | Copper Alloy |
Current Rating | 5.0A |
Voltage Rating | 30.0 V |
