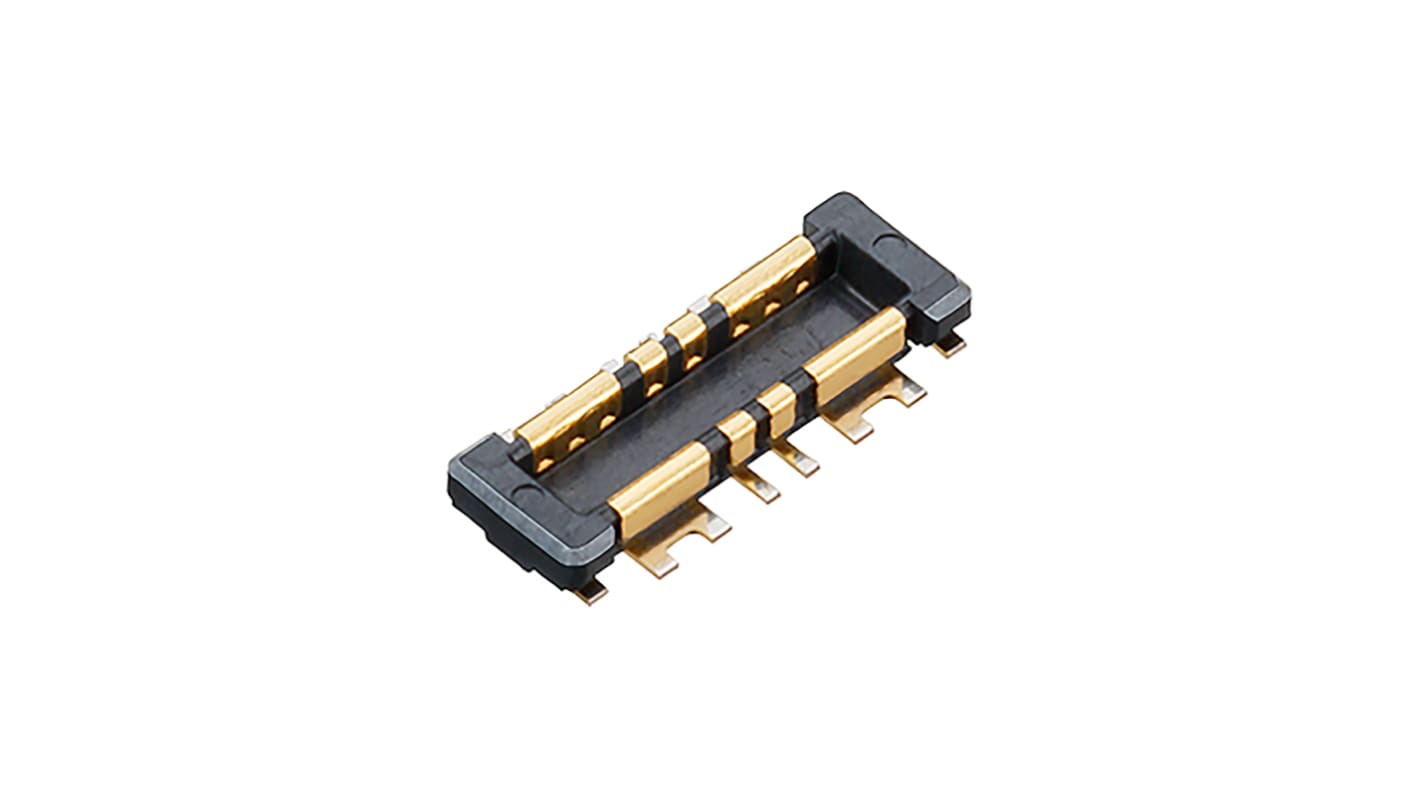

Panasonic, B02, 8 Way, 2 Row, Straight PCB Header

  • RS Stock No. 179-0143
  • Mfr. Part No. AXF482700
  • Brand Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

FEATURES
High current rating: 10A (5A/pin ´ pins)
signal pin type for wide range of control applications
High removal force while miniature and low profile
APPLICATIONS
Smartphones, tablet PCs and other mobile devices

Specifications
Attribute Value
Series B02
Pitch 0.8mm
Number of Contacts 8
Number of Rows 2
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Surface Mount
Termination Method Solder
Contact Material Copper Alloy
Current Rating 5A
Available to back order for despatch 23/06/2020
Price Each (On a Reel of 500)
£ 0.52
(exc. VAT)
£ 0.62
(inc. VAT)
Units
Per unit
Per Reel*
500 - 500
£0.52
£260.00
1000 - 2000
£0.49
£245.00
2500 - 4500
£0.464
£232.00
5000 +
£0.44
£220.00
*price indicative
