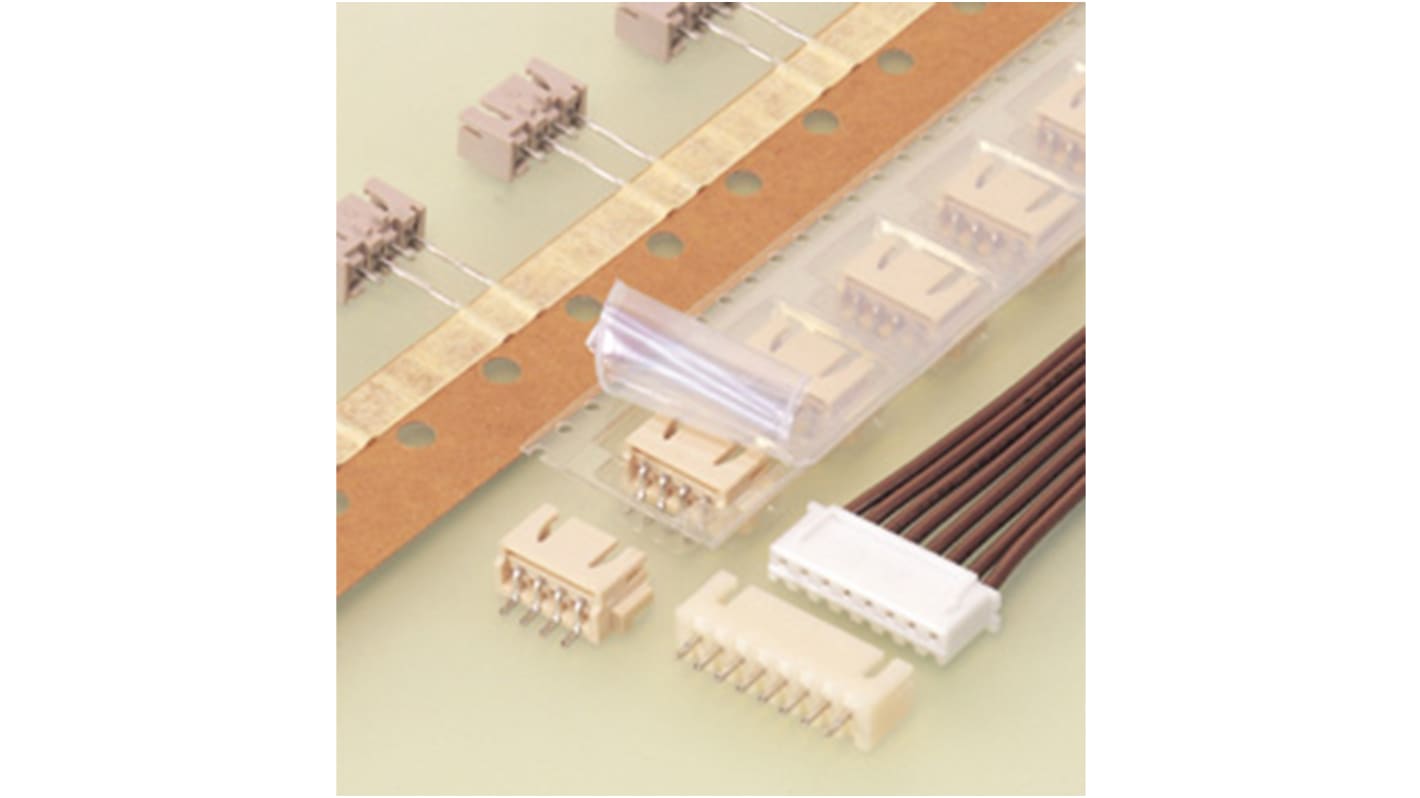

JST XH Series Straight Through Hole PCB Header, 2 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 175-5499
- Mfr. Part No.:
- B2B-XH-2 (LF)(SN)
- Brand:
- JST
160 In stock - FREE next working day delivery available
180 available from Europe for delivery within 1 working day(s).
Price Each (In a Pack of 10)
£0.121
(exc. VAT)
£0.145
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
10 - 240 | £0.121 | £1.21 |
250 - 490 | £0.076 | £0.76 |
500 - 990 | £0.07 | £0.70 |
1000 - 2490 | £0.066 | £0.66 |
2500 + | £0.063 | £0.63 |
*price indicative
- RS Stock No.:
- 175-5499
- Mfr. Part No.:
- B2B-XH-2 (LF)(SN)
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The JST B2B-XH-2 (LF) (SN) is a XH series, 2 way, single row, 2. 5 mm pitch, top entry type, glass-filled nylon through hole shrouded header.
Original folded beam contact
Box-shaped shrouded header
Header with a boss
Interchangeability
Conforming to the HA terminal
Box-shaped shrouded header
Header with a boss
Interchangeability
Conforming to the HA terminal
Specifications
Attribute | Value |
---|---|
Series | XH |
Pitch | 2.5mm |
Number of Contacts | 2 |
Number of Rows | 1 |
Body Orientation | Straight |
Shrouded/Unshrouded | Shrouded |
Connector System | Board to Board |
Mounting Type | Through Hole |
Termination Method | Solder |
Contact Plating | Copper, Tin |
Contact Material | Brass |
Series Number | B2B |
Current Rating | 3.0A |
Tail Pin Length | 3.4mm |
Voltage Rating | 250.0 V , 1000.0 V ac |
